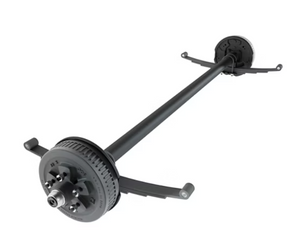

Dexter Axle, 3,500 LB Capacity, 5 on 4.5" Bolt Pattern, Electric Brake, Straight Spindle, E-Z Lube Lubrication, 95'' Hub Face, 80'' Spring Center, Double Eye Springs Pre-Mounted
Dexter Axle, 3,500 LB Capacity, 5 on 4.5" Bolt Pattern, Electric Brake, Straight Spindle, E-Z Lube Lubrication, 95'' Hub Face, 80'' Spring Center, Double Eye Springs Pre-Mounted

Dexter Axle, 3,500 LB Capacity, 5 on 4.5" Bolt Pattern, Electric Brake, Straight Spindle, E-Z Lube Lubrication, 95'' Hub Face, 80'' Spring Center, Double Eye Springs Pre-Mounted

$650.00
$0.00
$650.00

Dexter Axle

95" Hub face - 80" Spring Center ( 6 ft 10in (82") Frame Width)

5 Lug on 4.5" Bolt Pattern (545)

This Electric Brake Axle Comes with Hubs, Bearings, 10" Electric Brake, Drum, U bolts, Springs, Lugs & Nuts.

Fully Assembled and Ready to Install on Your Trailer

Specifications:

Details
Axle Capacity 3,500 Lbs
Axle/Beam Complete Axle
Bolt Pattern 5 on 4.5"
Brake Type Electric Brake
Leaf Spring Type Double-Eye
Brake Size 10" x 2-1/4"
Hub Type Hub-Drum
Hub To Face Measurement 95"
Spring Center Measurement 80"
Axle Tube Size 2 3/8"
Axle Tube Shape Round
Axle Model D35: Dexter 3500 LB Capacity Axle
Beam Finish Painted
Camber Yes
Inner Bearing Part Number L68149
Lubrication E-Z Lube
Outer Bearing Part Number L44649
Pre-Mounted Springs Yes
Spindle Type Straight
