🔩 Draw-Tite 2-5/16" Chrome Hitch Ball — 1-1/4" Shank Diameter × 2-3/4" Long — 12,000 lb Capacity | Part #19286 / 63838

The industry-standard heavy-duty hitch ball for Class III, IV, and V trailer applications. This Draw-Tite 2-5/16" chrome ball features a 1-1/4" diameter shank that is 2-3/4" long — the correct shank for most heavy-duty ball mounts and weight distribution systems rated up to 12,000 lbs GTW. Solid steel construction with chrome plating for corrosion resistance. Built-in hex wrench flats make installation fast without a strap wrench. Lock washer and hex nut included — ready to install out of the box.

⚙️ Specifications

• Ball Diameter (A): 2-5/16"
• Shank Diameter (B): 1-1/4"
• Shank Length (C): 2-3/4"
• GTW Capacity: 12,000 lbs
• Finish: Chrome Plated Steel
• Thread Type: Fine thread — superior grip under load
• Hardware Included: Lock washer + hex nut
• Wrench Flats: Built-in — no strap wrench needed
• Torque Specification: 450 ft-lbs
• Installation Socket Size: 1-7/8"
• Ball Mount Hole Tolerance: Mounting hole must not exceed shank diameter by more than 1/16" (0.060")

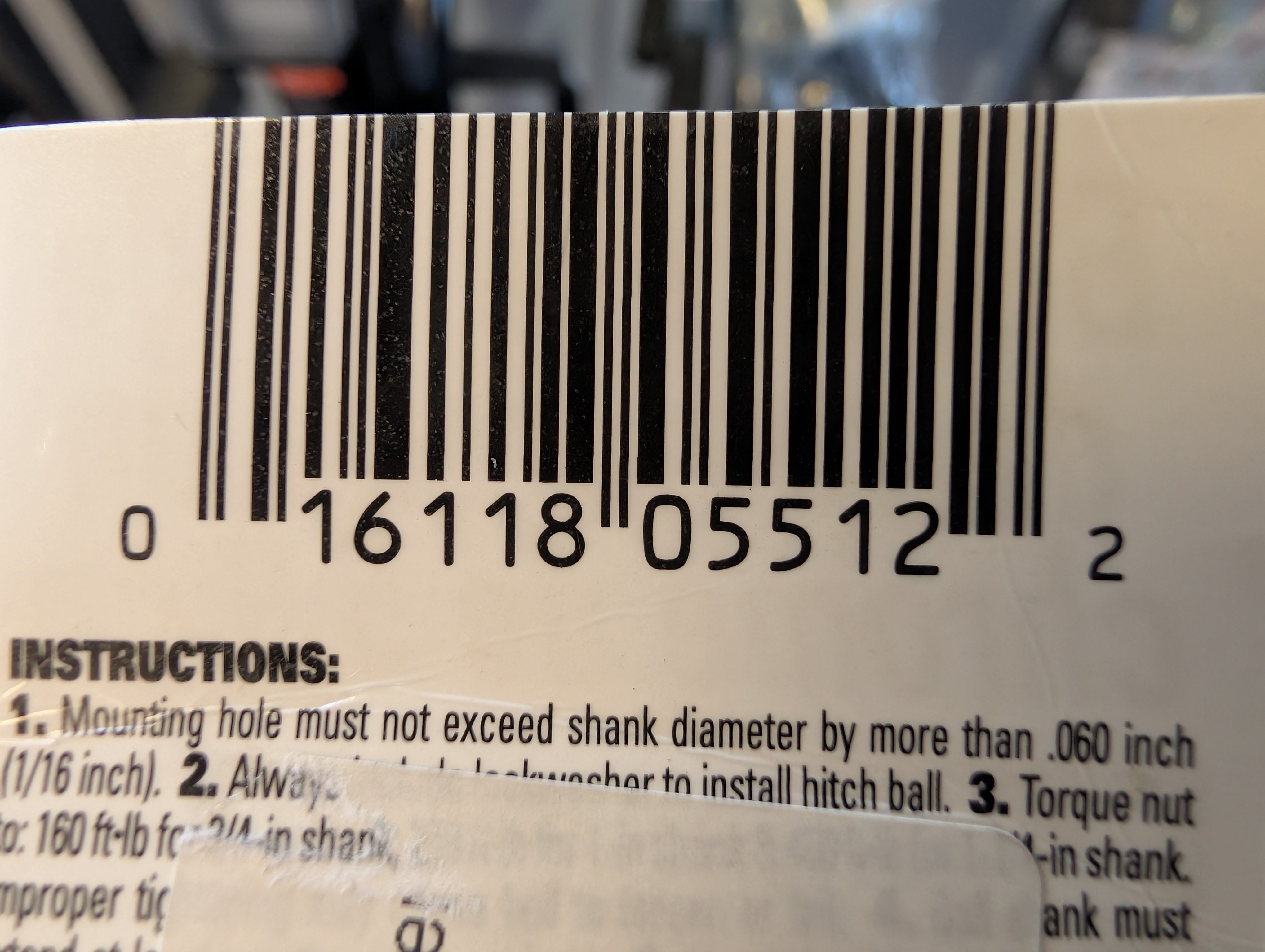

• UPC: 016118055122

🔁 Cross-Reference Part Numbers

Draw-Tite 19286 | Draw-Tite 63838 | Tow Ready 19286 | 63834 | 63896 | B&W GNXA2061 | Reese 19286 | Curt 40042 | Valley 71004

✅ Compatible Applications

• Class III, IV, and V receiver hitches rated for 12,000 lb GTW
• Weight distribution systems with 2-5/16" ball requirement
• 5th wheel and gooseneck adapters (verify ball mount rating)
• Most bumper-pull travel trailers, horse trailers, boat trailers, and cargo trailers with 2-5/16" couplers
• Landscape, dump, and equipment trailers

🔧 Installation Notes

• Verify your ball mount is rated for 12,000 lbs GTW minimum before installing
• Mounting hole must not exceed 1-5/16" (shank diameter + 1/16" max)
• Install lock washer between ball mount underside and hex nut
• Torque hex nut to 450 ft-lbs using a 1-7/8" socket — do not under-torque
• Inspect torque before every tow
• ⚠️ Always verify your tow vehicle's rated towing capacity and coupler size before selecting a hitch ball

⚠️ Note: This ball has a 1-1/4" shank. Do not confuse with the 1" shank version (7,500 lb capacity). Check your ball mount hole diameter before ordering.
