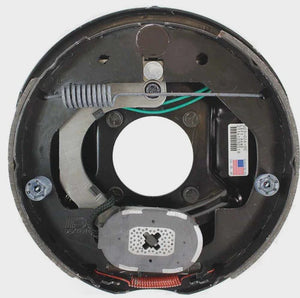

The Dexter 10" x 2-1/4" Electric Brake Assembly is a complete trailer brake unit designed for 3,500 lb trailer axles. Available in Left Hand (K23-026-00) or Right Hand (K23-027-00) configurations. This self-contained electric brake unit provides dependable braking performance for utility trailers, cargo trailers, equipment trailers, and RVs.

🔧 Select Your Side

Choose Left Hand (LH) or Right Hand (RH) from the dropdown above. LH mounts on the driver-side axle, RH on the passenger side. Trailers with electric brakes on both axles typically need a pair of each (two LH + two RH for a tandem setup).

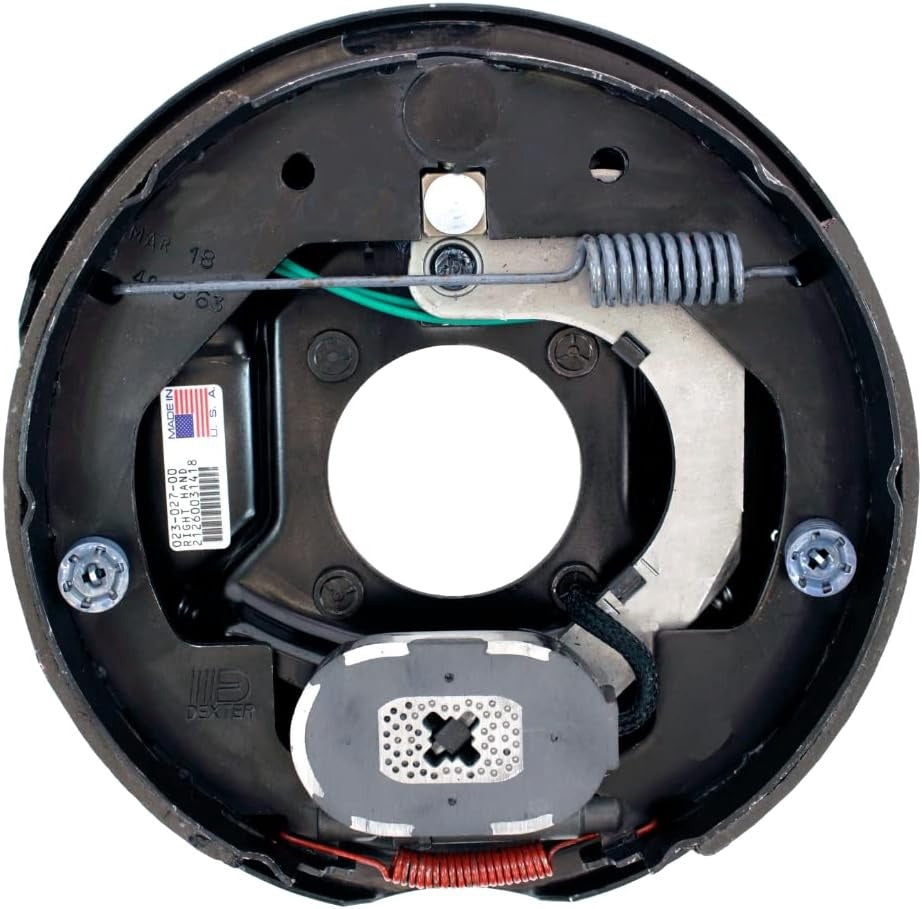

Manufactured by Dexter Axle, the industry leader in trailer running gear, each assembly includes durable brake shoes, electromagnet, springs, and backing plate pre-assembled for easy installation. The assembly mounts to a standard 4-bolt brake flange and connects to the trailer's electric brake wiring system, allowing smooth and controlled braking when paired with an in-cab brake controller.

⚙️ Key Features

• Complete Brake Assembly — backing plate, brake shoes, springs, and magnet pre-assembled
• Side-specific configuration — LH (driver side) and RH (passenger side) available
• 10" x 2-1/4" brake size — standard size for 3,500 lb trailer axles
• 4-Bolt flange mounting — bolts directly to standard trailer axle brake flanges
• Electromagnetic electric braking — compatible with standard trailer brake controllers
• Genuine Dexter — manufactured by the industry leader in trailer running gear

📐 Specifications

• Manufacturer: Dexter Axle

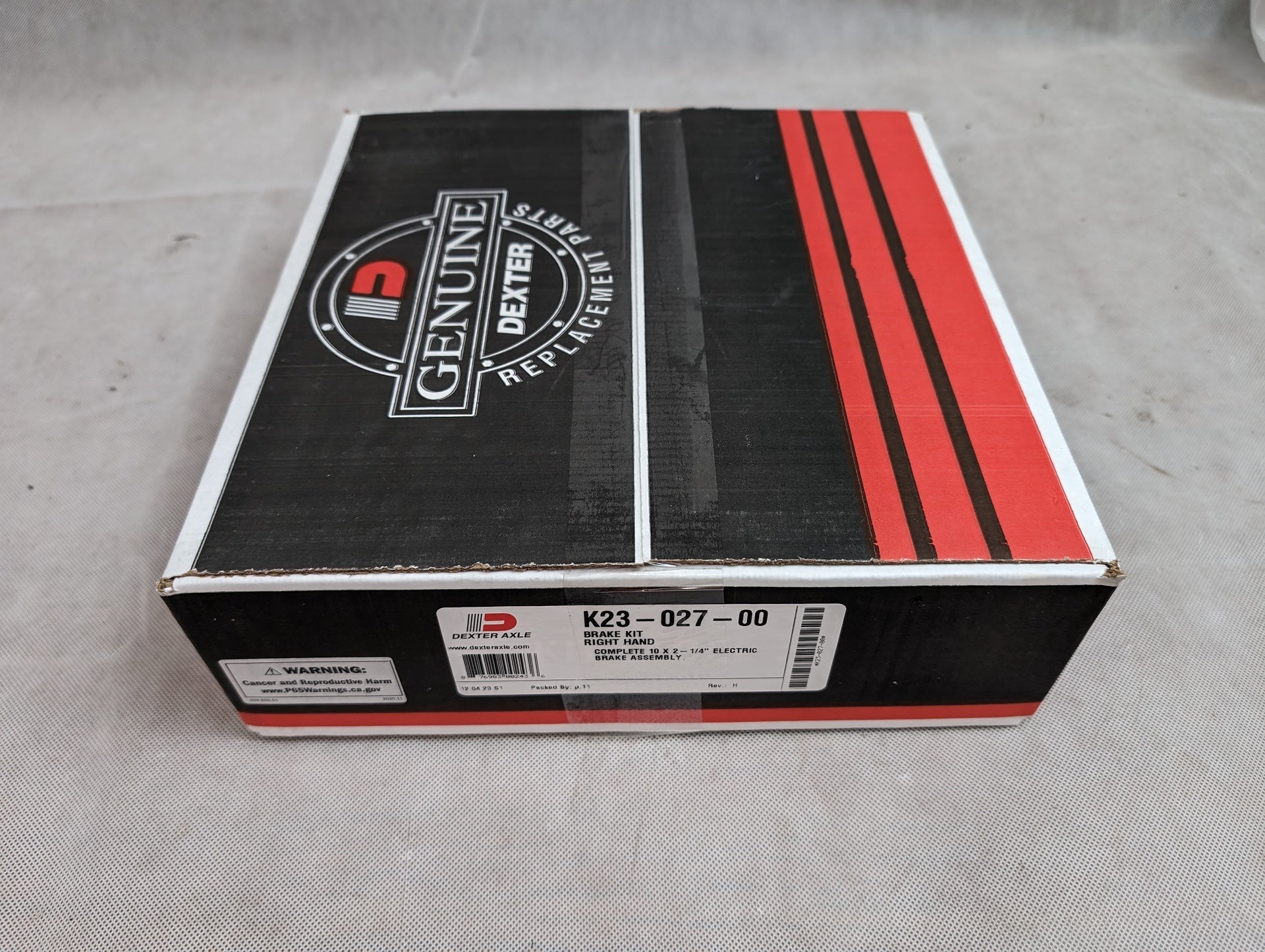

• Part Numbers: K23-026-00 (Left Hand) / K23-027-00 (Right Hand)
• Brake Type: Electric Drum Brake
• Brake Size: 10" x 2-1/4"
• Axle Rating: 3,500 lb
• Mounting Flange: 4-Bolt
• Brake Drum Compatibility: 10" Electric Brake Drum
• Wiring: 2-Wire Electric Brake Lead

🚛 Fits These Trailer Axles

• Dexter 3,500 lb trailer axles
• Lippert 3,500 lb trailer axles
• AL-KO / Hayes 3,500 lb axles
• Rockwell American 3,500 lb axles
• Quality Trailer Axle 3,500 lb axles

Commonly found on utility trailers, cargo trailers, equipment trailers, landscape trailers, RV travel trailers, and boat trailers equipped with electric brakes.

🔄 Cross Reference Part Numbers

Both K23-026-00 and K23-027-00 replace or cross with the following electric brake assemblies (LH/RH counterparts apply accordingly):

• Dexter 023-026-00 (LH) / 023-027-00 (RH)
• Dexter K23-026-00-LH / K23-027-00-RH
• Lippert 296649 / 296650
• AL-KO 10" x 2-1/4" LH / RH Electric Brake
• Redline AKEBRK-35L / AKEBRK-35R

All share the same 10" x 2-1/4" brake dimensions and 4-bolt mounting flange.

🔧 Compatible Components

• Dexter 8-201-5 — Hub / Drum Assembly (5 on 4.5 bolt pattern)
• Dexter 8-201-9 — Hub / Drum Assembly (5 on 5 bolt pattern)
• Dexter 8-201-7 — Hub / Drum Assembly (6 on 5.5 bolt pattern)
• Dexter K71-403-00 — Brake Magnet Kit
• Dexter K71-181-00 — Hardware Kit

⚠️ Signs Your Trailer Brakes Need Replacement

• Reduced braking performance
• Uneven brake wear
• Brake noise or grinding
• Damaged brake magnets
• Excessive brake shoe wear

Replacing worn brake assemblies helps ensure safe towing and reliable stopping performance.
