LEGENDARY QUALITY

• » Stringent quality and testing processes to ensure the best performance
• » Domestically sourced components that go through rigorous certification processes
• » Made in America
• » Five-Year Warranty

SUPERIOR COMPONENTS

• » Shackle links, U-Bolts, and tie plates manufactured in-house
• » Coined U-Bolts provide a larger tube contact area, leading to a superior leaf spring attachment
• » Rugged cast iron spring seats prevent tubes from rolling in U-Bolt

Axle Capacity	5,200 Lbs
Axle/Beam	Complete Axle
Bolt Pattern	6 on 5.5"
Brake Type	Electric Brake
Leaf Spring Type	Double-Eye
Brake Size	12" x 2"
Hub Type	Hub-Drum
Hub To Face Measurement	95"
Spring Center Measurement	80"
Axle Tube Size	3" Light Wall
Axle Tube Shape	Round

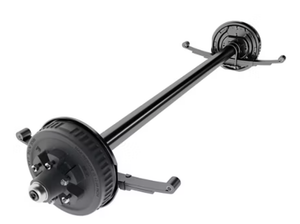

Axle Model	D52: Dexter 5,200 LB Capacity Axle
Beam Finish	Painted
Camber	Yes
Inner Bearing Part Number	25580
Lubrication	E-Z Lube
Outer Bearing Part Number	15123
Pre-Mounted Springs	Yes
Spindle Type	Straight
