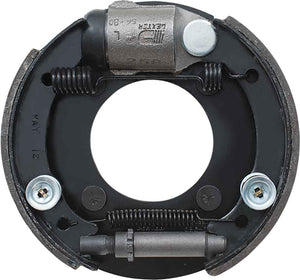

Genuine Dexter 7" x 1-3/4" Hydraulic Uni-Servo brake assembly — a complete, factory-assembled brake unit for 2,000–2,200 lb trailer axles with surge (hydraulic) brake actuators. Available in Left Hand (K23-398-00) or Right Hand (K23-399-00). This single-plunger uni-servo design delivers responsive, smooth braking on boat trailers, snowmobile trailers, and light-duty utility trailers. Made in the USA by Dexter Axle — the industry standard in trailer braking systems.

🔧 Select Your Side

Choose Left Hand (LH / Driver Side) or Right Hand (RH / Passenger Side) from the dropdown above. Single-axle trailers need one of each; tandem-axle trailers need a pair of each. Always replace brakes in matching pairs for even wear.

⚙️ Key Features

• Genuine Dexter OEM – Made in USA: factory-quality replacement with exact-fit backing plate, shoes, wheel cylinder, hardware, and adjuster plug
• Uni-Servo Single-Plunger Design: smooth, progressive hydraulic braking — designed for use with surge brake actuators (NOT electric brake controllers)
• Brake Size: 7" drum diameter × 1-3/4" shoe width
• Capacity: 2,200 lbs per assembly / 2,500 lbs per pair
• 4-Bolt Mounting Pattern: 4" diagonal, 2-3/4" stud spacing — bolts included
• Fits 10" to 13" Wheels: standard fit for most light-duty trailer wheel sizes
• Manual Adjustment: adjuster plug covers access hole to keep dirt out — periodic adjustment required
• Pre-Assembled: backing plate, shoes, wheel cylinder, springs, and mounting hardware — ready to bolt on

📐 Specifications

• Manufacturer: Dexter Axle
• Dexter Part Numbers: K23-398-00 (Left Hand) / K23-399-00 (Right Hand)
• Dexter Assembly Numbers: 023-398-00 (LH) / 023-399-00 (RH)
• Brake Type: Hydraulic Uni-Servo (single plunger)
• Drum Size: 7" × 1-3/4"
• Axle Rating: 2,000–2,200 lbs
• Mounting: 4-bolt pattern (4" diagonal / 2-3/4" stud spacing)
• Wheel Fitment: 10" to 13" wheels
• Country of Origin: USA

🔄 Cross Reference & Compatible Parts

• Surge Brake Actuators: Dexter BP04-050 and similar hydraulic coupler / actuators
• Compatible Bearing & Seal Kits: L44649 inner / 10-9 outer / 10-60 grease seal
• Compatible Hub/Drum: Dexter 8-257-5UC3 (5 on 4.5) — pre-greased EZ-Lube version available

🔧 Common Applications

• Boat trailers (2,000–2,200 lb capacity)
• Small utility & snowmobile trailers with surge brake systems
• Small enclosed cargo trailers with hydraulic braking

⚠️ Important: This is a HYDRAULIC brake — requires a surge brake actuator or master cylinder. For ELECTRIC brake systems, use Dexter K23-026-00 (LH) / K23-027-00 (RH) instead.

💡 Pro Tip: After installation, bleed the hydraulic brake lines thoroughly and adjust brake shoes through the access plug on the backing plate. Re-adjust after first 200 miles of use.
