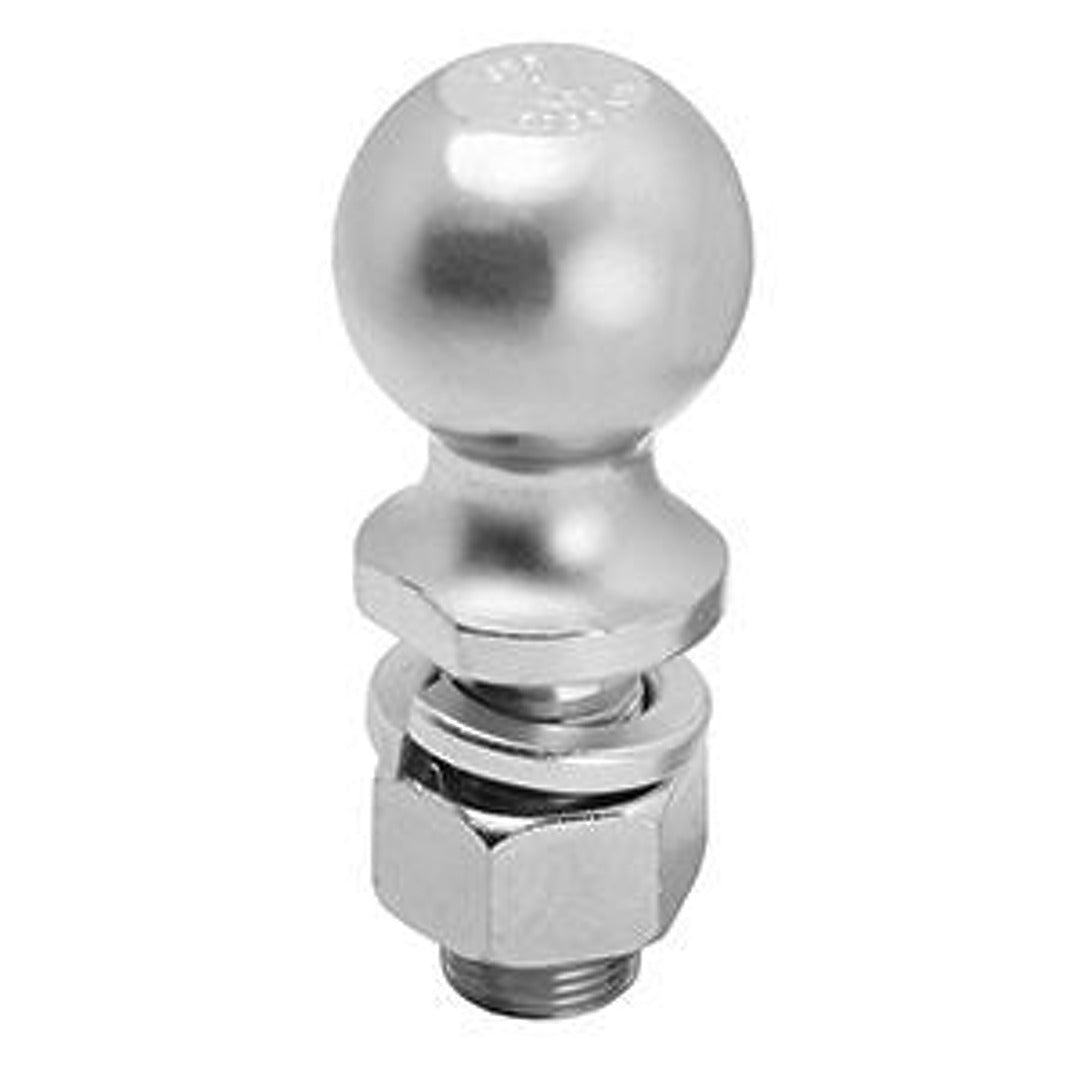

🔩 Draw-Tite 2-5/16" Chrome Hitch Ball — 1" Shank Diameter × 2-1/8" Long — 7,500 lb Capacity | Part #63847

The standard mid-capacity chrome hitch ball for Class III and IV trailer applications. This Draw-Tite 63847 features a 1" diameter shank that is 2-1/8" long — the correct shank for ball mounts rated at 7,500 lbs GTW with a 1" hole. Solid cold-forged steel construction with chrome plating for corrosion resistance. Built-in hex wrench flats for easy installation without a strap wrench. Lock washer and hex nut included.

⚙️ Specifications

• Ball Diameter (A): 2-5/16"
• Shank Diameter (B): 1"
• Shank Length (C): 2-1/8"
• Ball Mount Thickness Range: 3/8" to 7/8"
• GTW Capacity: 7,500 lbs
• Finish: Chrome Plated Steel
• Thread Type: Fine thread
• Hardware Included: Lock washer + hex nut
• Wrench Flats: Built-in
• Torque Specification: 250 ft-lbs
• Installation Socket Size: 1-1/2"
• Standard: Meets VESC V-5 safety standards

🔁 Cross-Reference Part Numbers

Draw-Tite 63847 | Reese 63847 | Tow Ready 63847 | Reese Towpower 63847 | Curt 40046 | Valley 71005 | B&W GNXA2060

✅ Compatible Applications

• Class III and IV receiver hitches rated for 7,500 lb GTW with 1" ball hole
• Weight distribution systems with 2-5/16" ball requirement and 1" shank hole (Blue Ox BXW2000, Reese 66557, Reese Steadi-Flex)
• Most bumper-pull travel trailers, boat trailers, and cargo trailers with 2-5/16" couplers under 7,500 lbs

🔧 Installation Notes

• Verify your ball mount hole is 1" diameter and rated for 7,500 lbs GTW minimum
• Ball mount thickness must be between 3/8" and 7/8"
• Install lock washer between ball mount underside and hex nut
• Torque hex nut to 250 ft-lbs using a 1-1/2" socket
• Inspect torque before every tow

⚠️ Note: This ball has a 1" shank diameter — do NOT use in a 1-1/4" hole without a bushing. For 1-1/4" shank applications see part #19286 (12,000 lb). Always confirm coupler size (2-5/16") and ball mount capacity before installing.
