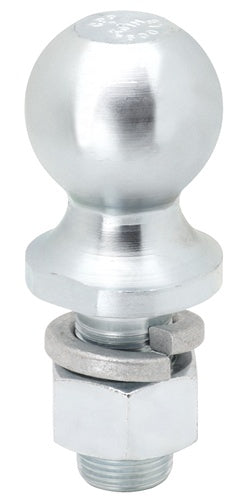

🔩 Draw-Tite 2" Chrome Hitch Ball — 1" Shank Diameter × 2-1/8" Long — 7,500 lb Capacity | Part #63845

The workhorse 2" chrome hitch ball for Class III and IV trailer applications. This Draw-Tite 63845 features a 1" diameter shank that is 2-1/8" long. Solid cold-forged steel construction with chrome plating for corrosion resistance. Built-in hex wrench flats for installation without a strap wrench. Lock washer and hex nut included. The 2" ball is the most common size for utility trailers, boat trailers, and travel trailers — verify your coupler before ordering.

⚙️ Specifications

• Ball Diameter (A): 2"
• Shank Diameter (B): 1"
• Shank Length (C): 2-1/8"
• Ball Mount Thickness Range: 3/8" to 7/8"
• GTW Capacity: 7,500 lbs
• Finish: Chrome Plated Steel
• Thread Type: Fine thread
• Hardware Included: Lock washer + hex nut
• Wrench Flats: Built-in
• Torque Specification: 250 ft-lbs
• Installation Socket Size: 1-1/2"
• Standard: Meets VESC V-5 safety standards

🔁 Cross-Reference Part Numbers

Draw-Tite 63845 | Reese 63845 | Tow Ready 63845 | Reese Towpower 63845 | Curt 40040 | Valley 71003

✅ Compatible Applications

• Class III and IV receiver hitches rated for 7,500 lb GTW with 1" ball hole
• Weight distribution systems with 2" ball requirement and 1" shank (Reese 66557, Blue Ox SwayPro)
• Standard bumper-pull utility trailers, boat trailers, enclosed cargo trailers, and camper trailers with 2" couplers

🔧 Installation Notes

• Verify your ball mount hole is 1" diameter and rated for 7,500 lbs GTW
• Ball mount thickness must be between 3/8" and 7/8"
• Install lock washer between ball mount underside and hex nut
• Torque hex nut to 250 ft-lbs using a 1-1/2" socket
• Inspect torque before every tow

⚠️ Note: This ball is 2" diameter — confirm your trailer coupler accepts a 2" ball before ordering. For 2-5/16" applications see #63847 or #19286. For 3/4" shank see #63820.
