KTI 1245-18 12V Dump Trailer Pump Motor — Fits Load Trail, PJ, Maxx-D, Diamond C, Sure-Trac | Replaces 070062
Dump trailer won't lift? Pump just clicks or hums? The 12V motor is the most common failure on a dump trailer power unit — and this is
...Read more
...
There was an error submitting the form. Please try again.
false
Fast Shipping
Easy Returns
Secure Checkout
Licensed Dealer

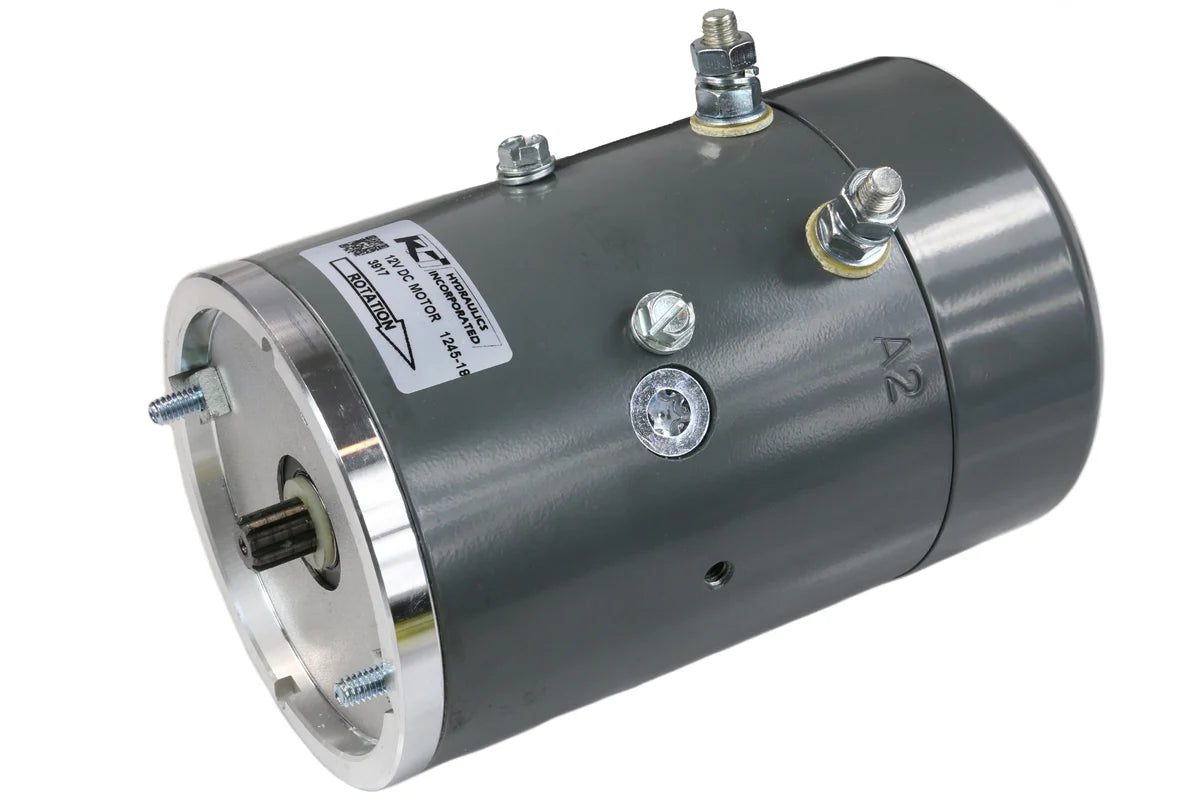

Dump trailer won't lift? Pump just clicks or hums? The 12V motor is the most common failure on a dump trailer power unit — and this is the genuine KTI Hydraulics 1245-18 replacement that fits the KTI power units used by most major dump trailer brands. KTI's 4.5" OD four-field series-wound motor, sealed to IP65 against dust and water. Factory part, not an aftermarket clone.
Fits These Dump Trailer Brands
This motor is the standard 12V 2-terminal replacement on KTI power units found on:
- Load Trail — direct cross-reference for Load Trail part 070062
- PJ Trailers — dumps, tilts, and hydraulic dovetails
- Maxx-D
- Diamond C
- Sure-Trac
- Top Hat Trailers
- …and most other dump, tilt, and hydraulic-dovetail trailers running a KTI 12V power unit with the 4.5" OD motor
Verify before ordering: your unit runs the 4.5" OD motor (measure the can) — 3.0" OD units use a different motor. Call us with your pump model if unsure.
Specifications
| Part Number | 1245-18 (KTI Hydraulics) |
|---|---|
| Cross-Reference | Load Trail 070062 |
| Voltage | 12V DC |
| Power | 1.6 kW |
| Winding | Four-field series wound |
| Rotation | Clockwise (CW) |
| Shaft | 9-tooth male spline (ANSI B92.1A-1976) |
| Mounting | 2-bolt flange mount (1/4-20 mounting screws) |
| Terminals | 2× 5/16"-24 studs |
| Sealing | IP65 — dust-tight, water-jet resistant |
| Performance | 128 A / 4,291 RPM @ 20 in-lb · 269 A / 2,232 RPM @ 80 in-lb |

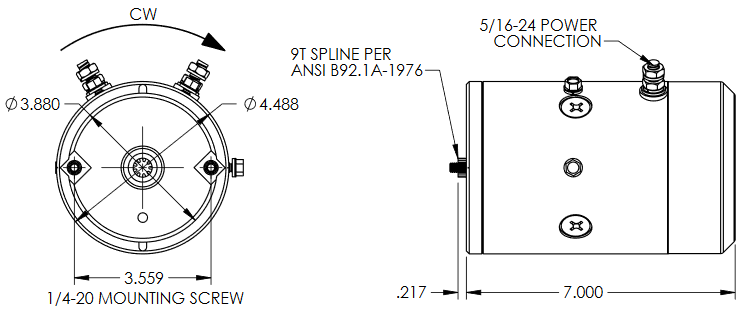

| Dimensions | ≈ 7" L × 4.5" OD |
| Weight | 15.4 lb |
Installation Notes
- Disconnect the battery before servicing the power unit.
- Remove the two flange bolts and slide the old motor off the pump coupler.
- Check the spline coupler for wear — a chewed-up coupler will kill the new motor.
- Seat the new motor's spline in the coupler, torque the flange bolts, reconnect power (stud nuts to 3 ft-lbs — hold the lower nut), and test through a full raise/lower cycle.
Why Buy From AAA Trailer
- Genuine KTI dump trailer parts in stock — pumps, motors, solenoids, remotes, couplers, reservoirs
- Ships same day from Howell, Michigan
- Not sure it fits? Call (517) 225-1991 with your trailer brand and pump model — we troubleshoot KTI units every week
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI 1245-18 12V Dump Trailer Pump Motor — Fits Load Trail, PJ, Maxx-D, Diamond C, Sure-Trac | Replaces 070062
Sale price
$0.00
Regular price
$279.00
SAVE $-279.00
Literature & Documentation

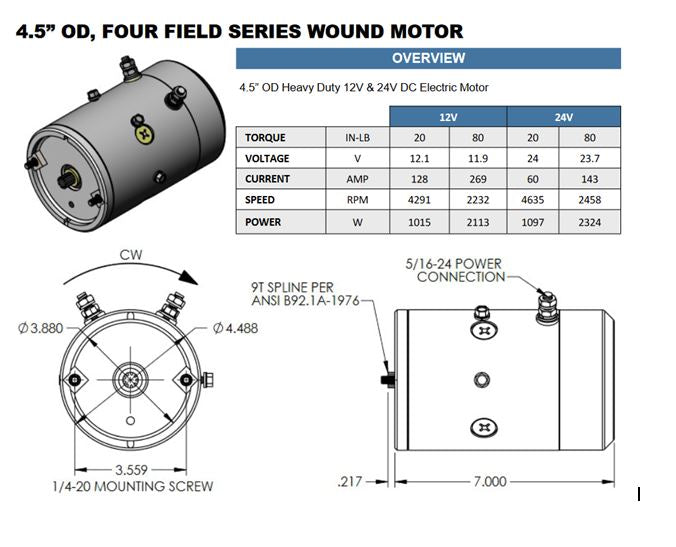

Official performance data (KTI 2024 catalog, p.47)
4.5" OD four-field series-wound DC motor — KTI’s factory performance table:
| Load | Voltage | Current | Speed | Power |
|---|---|---|---|---|
| 20 in-lb | 12.1 V | 128 A | 4,291 RPM | 1,015 W |
| 80 in-lb | 11.9 V | 269 A | 2,232 RPM | 2,113 W |
Shaft: 9-tooth male spline (ANSI B92.1A-1976) — mates to KTI’s 11-tooth spline pump input via coupler. Terminals: 2× 5/16"-24 studs. Sealed to IP65. Dimensions ≈ 7" L × 4.5" OD, 15.4 lb.
1.8 kW / 2.0 kW / 2.2 kW versions and thermal-switch variants are factory-order options — call us if your unit needs one.
Diagnosis before you replace the motor
From the KTI troubleshooting guide — most “dead motor” symptoms are electrical, not the motor:
- Motor not running → check voltage at the start solenoid while pressing the remote button, then check power at the motor studs.
- Clicking but no crank → usually voltage drop: verify battery charge and cable gauge (table below).
- Runs weak / stalls under load → load-test the battery first; a tired battery mimics a tired motor.
- Terminal stud nuts torque to 3 ft-lbs — hold the lower nut while torquing so the stud doesn’t spin.
Battery cable sizing (undersized cable = voltage drop, high amps, damaged components):
| Cable length | Wire gauge | Nominal OD |
|---|---|---|
| 1–2 ft | 4 ga | 0.43" |
| 3–4 ft | 2 ga | 0.49" |
| 5–7 ft | 1 ga | 0.56" |
| 8–9 ft | 1/0 ga | 0.61" |
| 10–12 ft | 2/0 ga | 0.66" |
| 13–15 ft | 3/0 ga | 0.72" |
| 16–19 ft | 4/0 ga | 0.78" |
