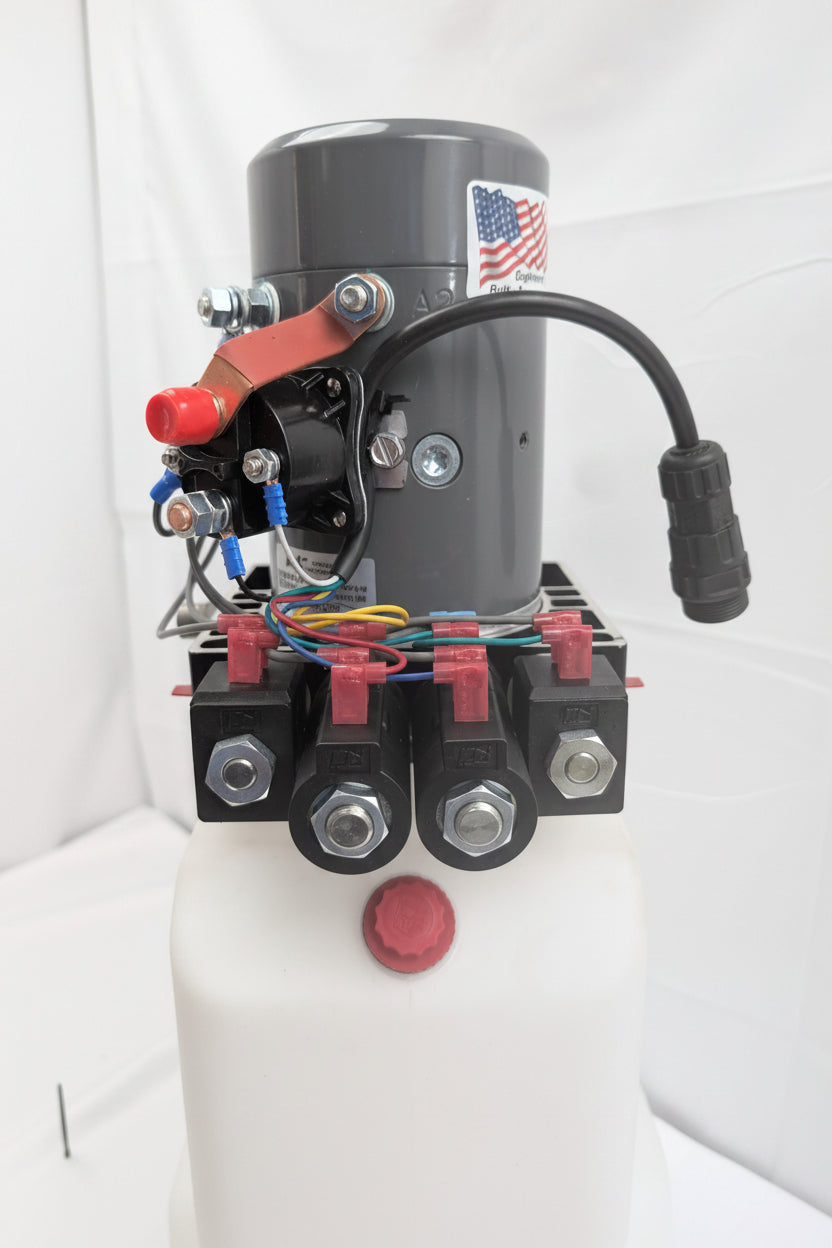

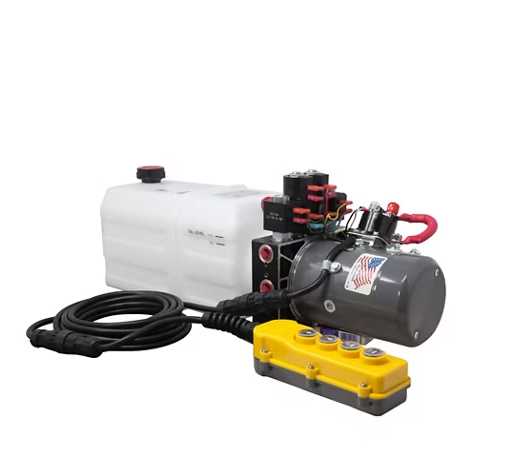

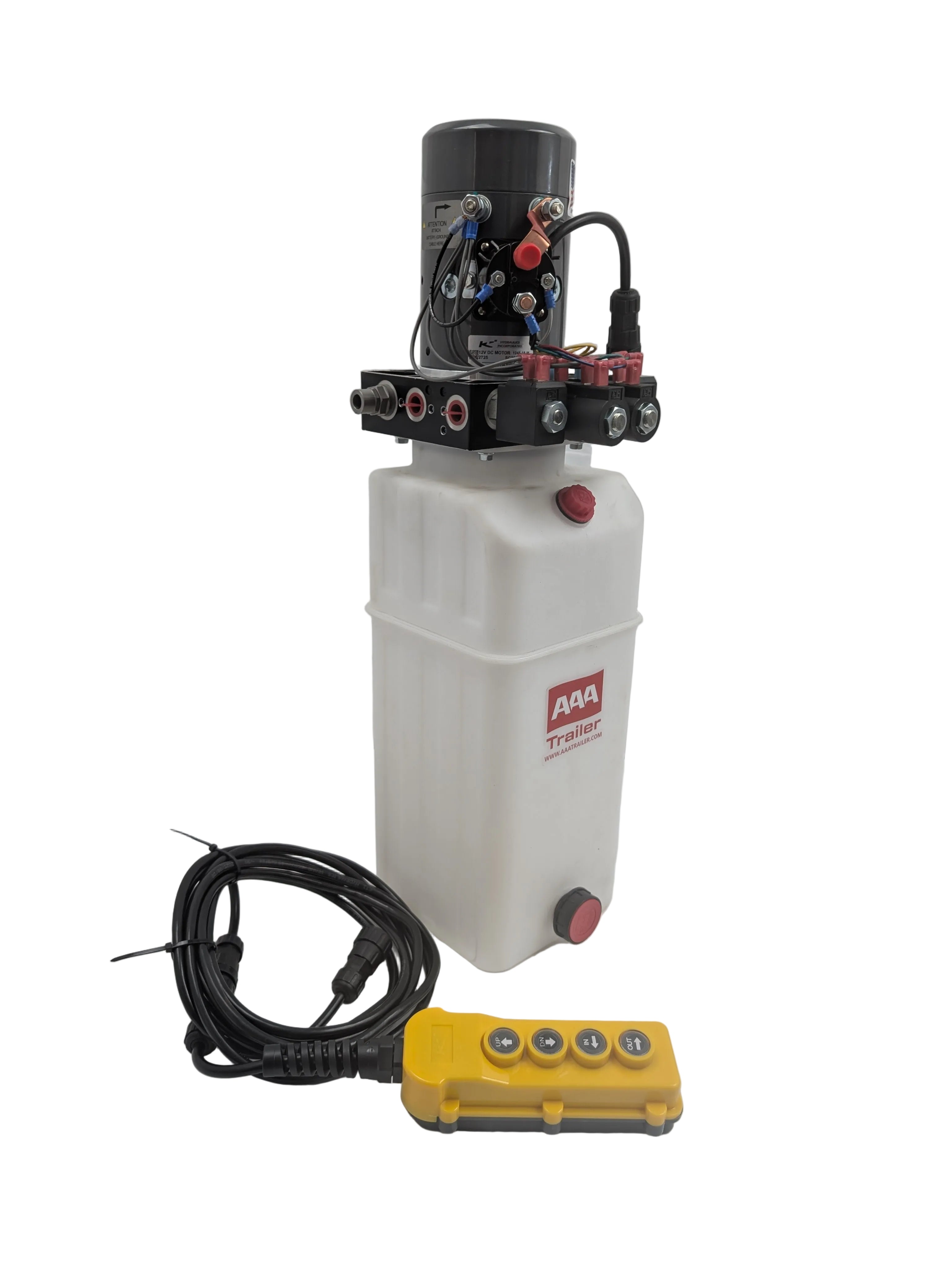

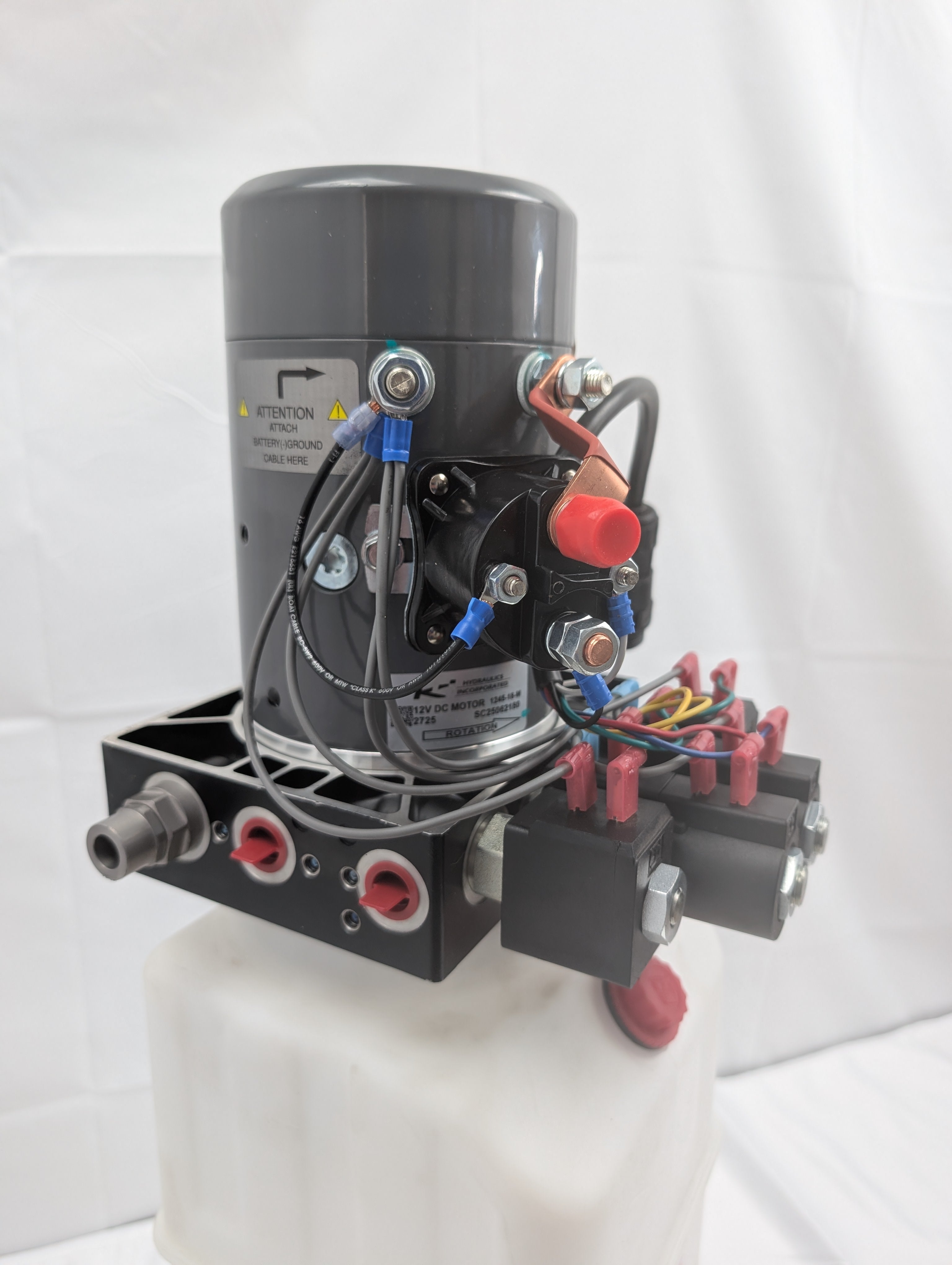

KTI DC46RA / DC-4586 — 12V Double-Acting Hydraulic Power Unit with 4-Button Wired Remote
Top-of-line KTI double-acting power unit. 4-button PU/PD wired pendant for two-axis control (e.g. lift/lower plus a second function on a hauler with multiple cylinders). 6-quart poly reservoir for longer duty cycles.
?? Built for Commercial Dump Applications
- Load Trail
- Diamond C
- Lamar
- Griffin
- Watchdog
- PJ Trailers
- Most other dump-trailer brands
Ideal for dump trailers, dump trucks, equipment trailers, and commercial hauling setups.
?? Key Features
- Double-Acting Performance. Powered up AND powered down for smoother, more precise bed control.
- 3200 PSI Maximum Pressure with 1500 PSI lowering relief.
- 2.0 GPM Internal Flow Control. Pressure-compensated, consistent displacement under load.
- 4-Button PU/PD Wired Remote. Two-axis directional control for trailers with more than one hydraulic function.
- 6 Quart Poly Reservoir. Heavy-duty polyethylene for commercial duty cycles.
- SAE #6 (F) Port. Industry-standard hydraulic fittings.
- Quiet Operation.
?? Specifications
- Voltage: 12V DC
- Pump Type: Double Acting
- Flow Rate: 2.0 GPM
- Max Pressure: 3200 PSI
- Port: SAE #6 (F)
- Reservoir: 6 Quart Polyethylene
- Remote: 4-Button PU/PD Wired
- Shipping Weight: 48 lb
?? Cross-Reference Part Numbers
- KTI: DC46RA
- Dexter: DC-4586 (ref #351354)
- Alt: CST-HPU001
Authorized KTI dealer. Ships from AAA Trailer.
📐 Dimensions & Mounting
| Overall Length | Approx. 21.8" (6 Qt) |
| Overall Width | Approx. 6.8" |
| Overall Height | Approx. 9.1" |
| Motor | 4.5" OD, 12V DC |
| Mounting | Horizontal mount — two 3/8"-16 bolts on 3.5" hole centers |
| Weight | Approx. 29–31 lbs (varies by reservoir) |
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI DC46RA / DC-4586 Hydraulic Pump - 12V Double Acting Dump Trailer Power Unit, 4-Button Wired Remote, 6 Quart Reservoir
Sale price
$0.00
Regular price
$819.83
SAVE $-819.83
Literature & Documentation
Installation quick-reference (double-acting: power up / power down)
Hose routing: port “A” (top) → base of the cylinder; port “B” (bottom) → rod end.
- Hydraulic fittings: 9/16-18 SAE ORB (SAE #6) into ports — torque to 18 ft-lbs.
- Mount with two 3/8-16 × 3/4" bolts; the flange must sit flush — don’t force alignment with the bolts.
- Battery terminal nuts: hold the bottom nut, torque the top nut to 3 ft-lbs.
- Fill the reservoir to ~1" from the top before first run; keep it above ½ during break-in.
Battery cable sizing (increase gauge as cable length grows — undersized cable = voltage drop, high amps, damaged components):
| Cable length | Wire gauge | Nominal OD |
|---|---|---|
| 1–2 ft | 4 ga | 0.43" |
| 3–4 ft | 2 ga | 0.49" |
| 5–7 ft | 1 ga | 0.56" |
| 8–9 ft | 1/0 ga | 0.61" |
| 10–12 ft | 2/0 ga | 0.66" |
| 13–15 ft | 3/0 ga | 0.72" |
| 16–19 ft | 4/0 ga | 0.78" |
Hydraulic fluid
KTI fluid recommendation: premium hydraulic oil with anti-wear, rust/oxidation and foam inhibitors — e.g. Chevron Rando HDZ, Mobil DTE 10/20 series, AMSOIL, Shell Tellus. Automotive ATF is acceptable under normal conditions. Do not use biodegradable hydraulic fluid, and do not mix oils.
| Ambient temperature | ISO viscosity grade |
|---|---|
| −20 °F to +32 °F | ISO 15 |
| +14 °F to +120 °F | ISO 22, 32, or ATF |
First-run bleed cycle
Bleed cycle (purge air) in 3 steps:
- Remove the breather cap so you can watch the fluid level. Verify fluid connections are tight. Never let the level fall below half while running.
- Run the unit to extend the cylinder, keeping the level above half tank.
- At full extension, run 5–10 seconds more (bleeding over the relief valve), re-check level, retract, and repeat until operation is smooth.
Double-acting units: repeat for both power-up and power-down. If fluid foams, wait ~10 minutes before continuing. Recharge the battery afterward.
