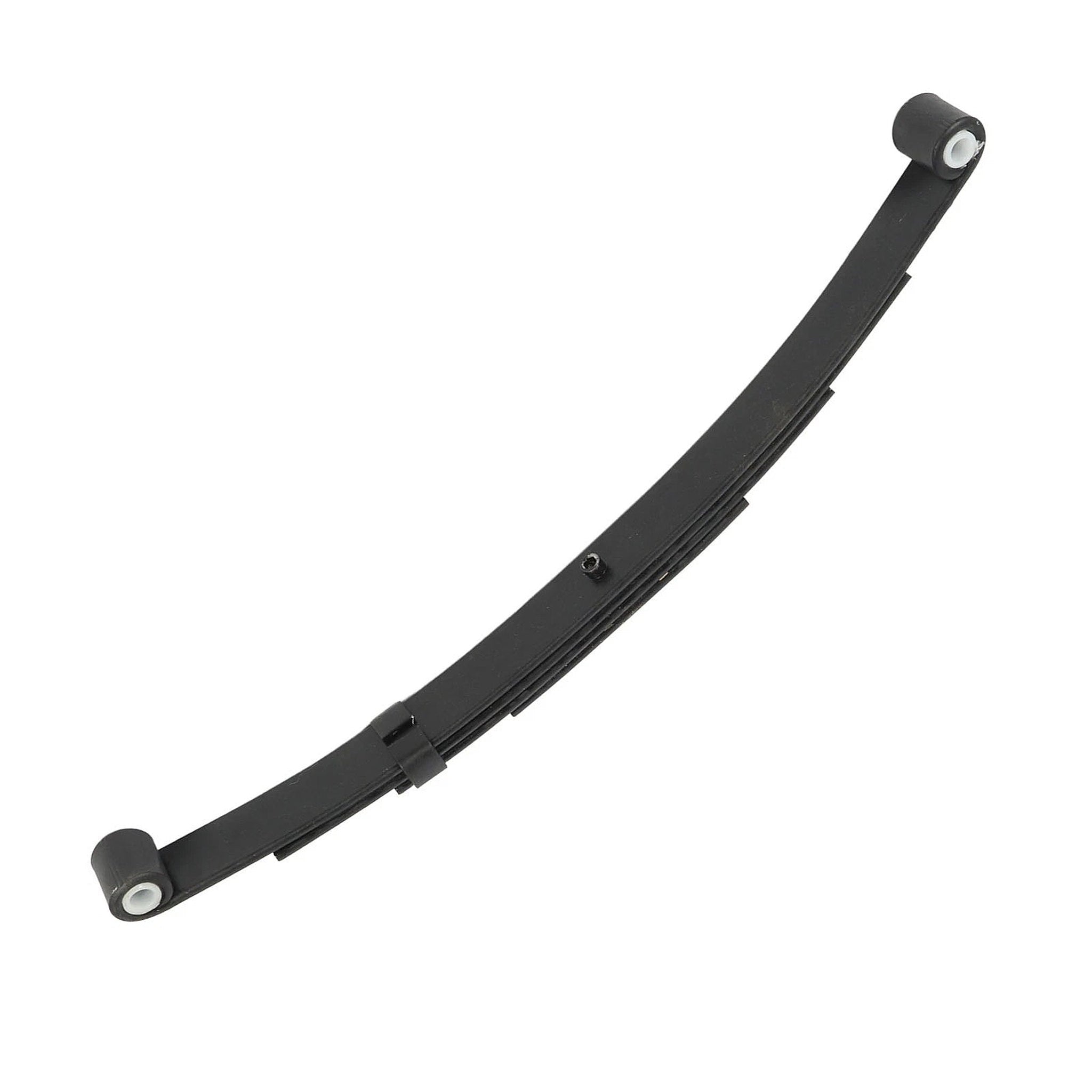

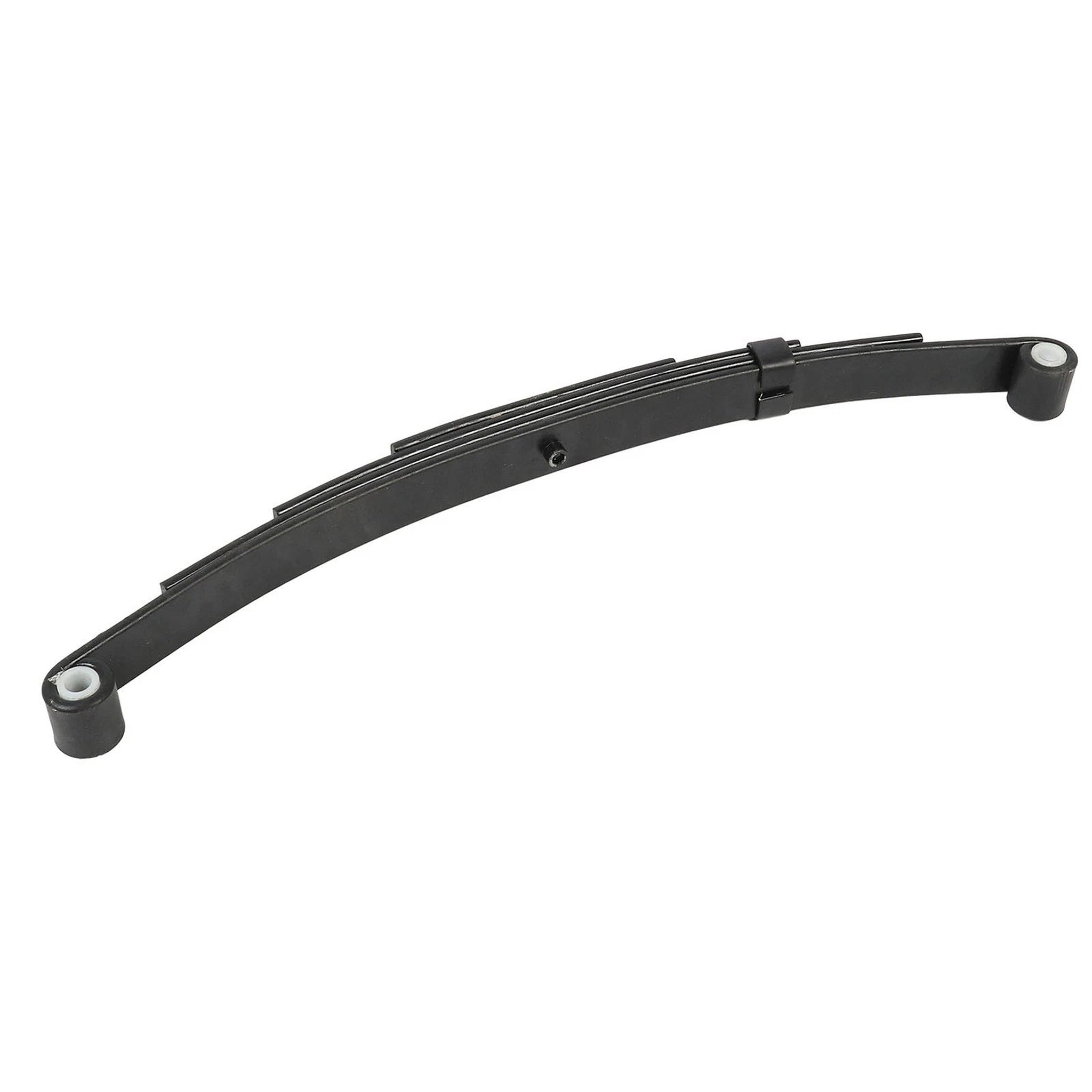

Double-eye leaf spring acts as part of a trailer's suspension system by providing an attachment point for a 3,500-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16" inner diameter.



Features:

• Leaf spring acts as part of your trailer's suspension system
  • Provides attachment point for your trailer's axle
• Multiple leaves allow flexibility to absorb road shock
  • Allows for a smooth ride
  • Reduces wear and tear on trailer
  • Ensures level ride on bumpy and uneven surfaces
• Sturdy steel construction
• Nylon bushings included
• Pre-mounted hangers or aftermarket hanger kit (sold separately) required for installation
  • Spring attaches to hanger mounted on trailer frame at one end
  • Other end connects to shackle straps suspended from hanger or equalizer

Specs:

• Quantity: 1 leaf spring
• Spring capacity: 1,750 lbs
• Axle capacity: 3,500 lbs
• Length from center of spring eye to center of spring eye (unloaded): 25-1/8"
• Spring width: 1-3/4"
• Eye diameter with bushing: 9/16"
  • Eye diameter without bushing: 11/16"
• Leaf thickness: 5/16"
• Number of leaves: 4
• Additional dimensions: see table
