🪑 OEM Driver Seat Bottom Cushion Assembly — 2022 GMC Acadia | Heated & Ventilated | Whisper Beige / Dark Galvanized (4KB) | Left Hand (LH) | Used

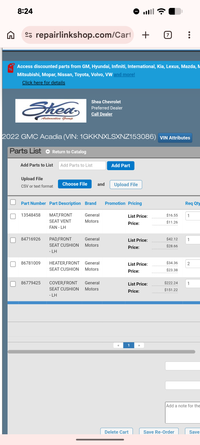

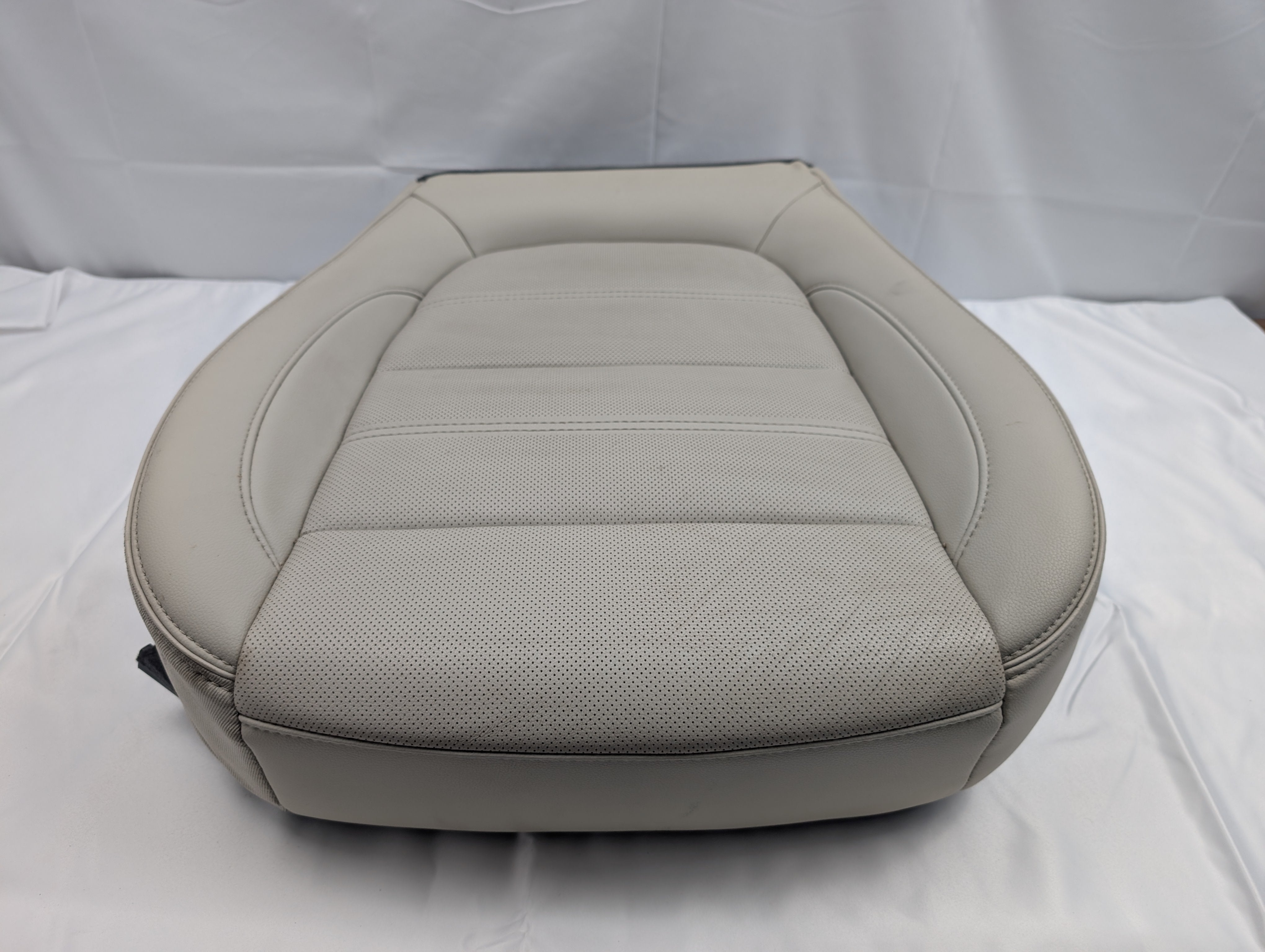

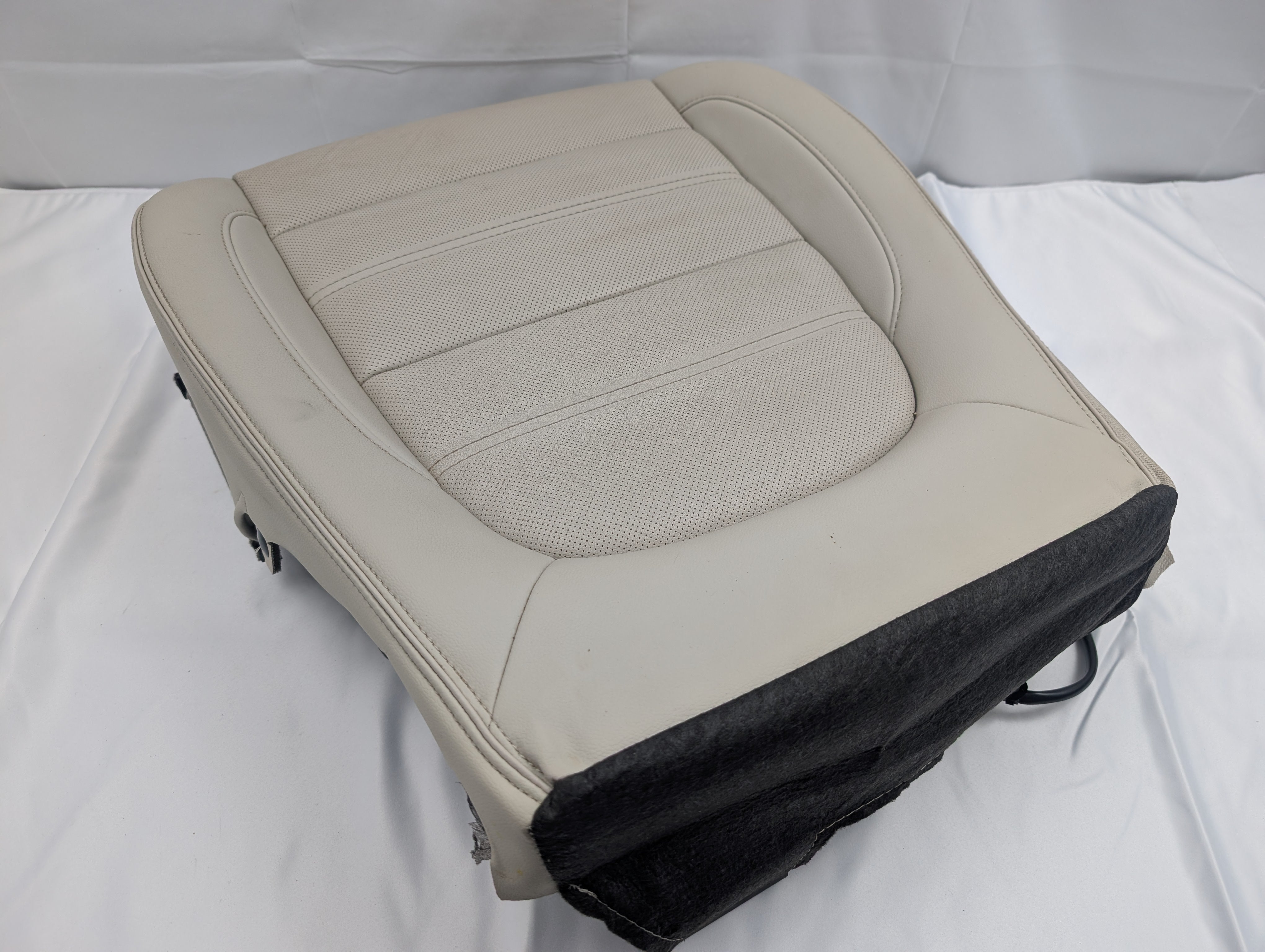

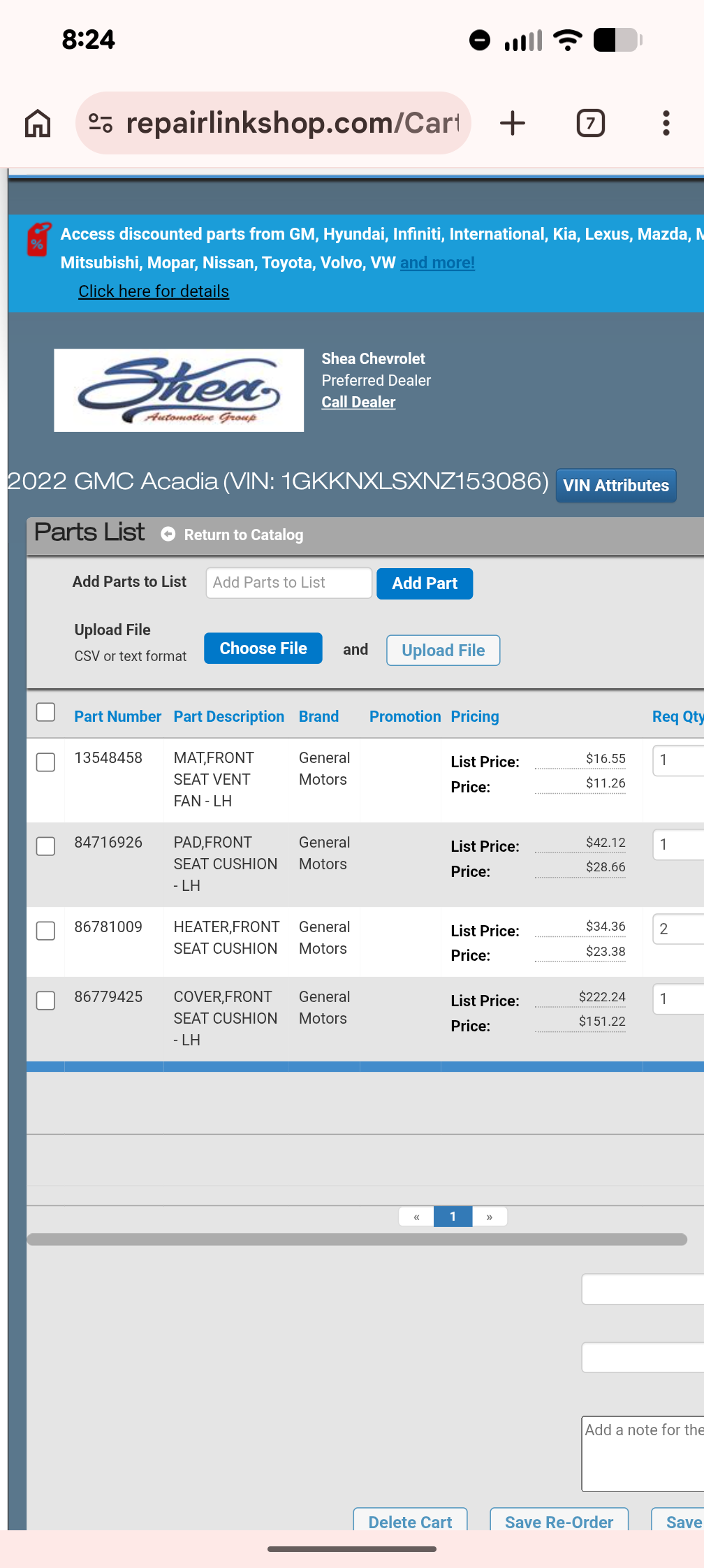

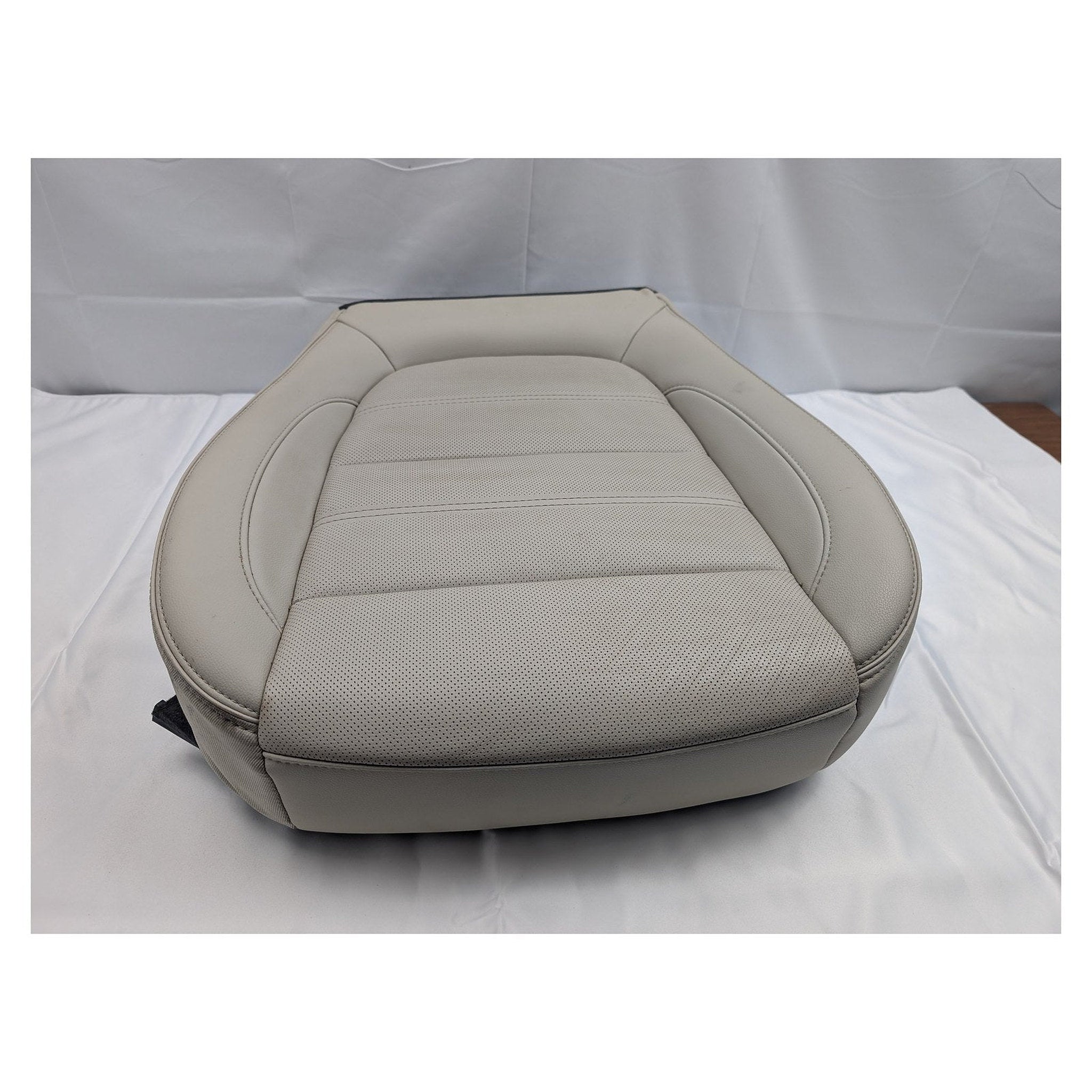

Used OEM driver (left hand) front seat bottom cushion assembly removed from a 2022 GMC Acadia (VIN: 1GKKNXLSXNZ153086). Complete assembly with all four OEM components confirmed via GM RepairLink — ventilation fan mat (GM# 13548458), foam pad (GM# 84716926), heated seat element (GM# 86781009), and perforated leather cover in Whisper Beige / Dark Galvanized 4KB (GM# 86779425). Total OEM new retail value over $315. Assembled in Mexico. Condition: Used, good cosmetic condition.

⚙️ What's Included (All 4 OEM Components)

• Vent Fan Mat, LH — GM# 13548458: Front seat ventilation fan mat (OEM list $16.55); the foam/mat layer the cooling fan sits in
• Seat Cushion Pad, LH — GM# 84716926: Factory OEM foam seat pad (OEM list $42.12)
• Seat Cushion Heater — GM# 86781009: Factory heating element (OEM list $34.36)
• Seat Cushion Cover, LH — GM# 86779425: Perforated leather in Whisper Beige / DK Galvanized 4KB (OEM list $222.24)

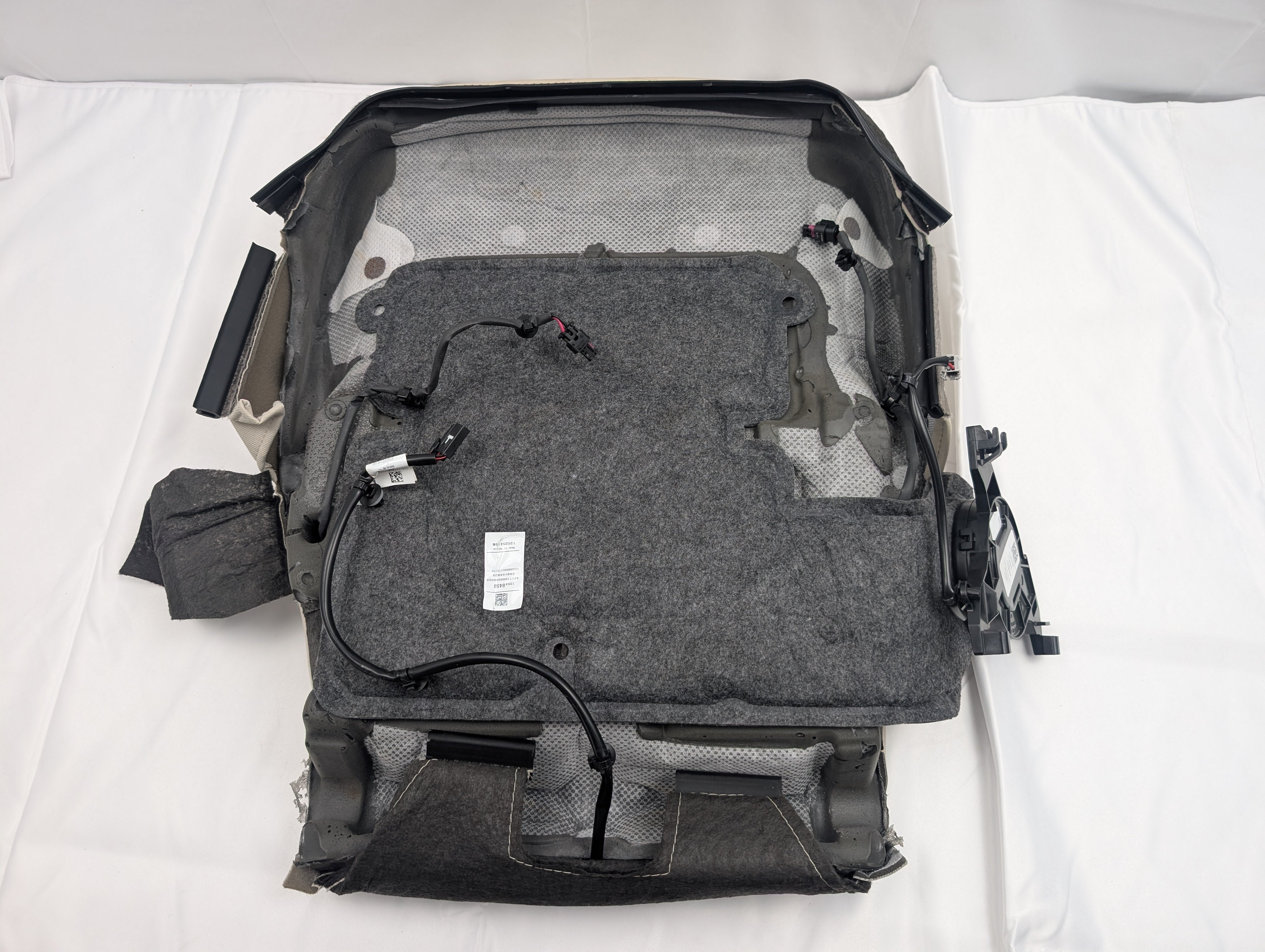

• Wiring harness connectors: Heated and ventilated seat pigtail connectors attached

📐 Specifications

• Vent Fan Mat GM#: 13548458 (MAT, FRONT SEAT VENT FAN - LH)
• Foam Pad GM#: 84716926 (PAD, FRONT SEAT CUSHION - LH)
• Heater GM#: 86781009 (HEATER, FRONT SEAT CUSHION)
• Cover GM#: 86779425 (COVER, FRONT SEAT CUSHION - LH)

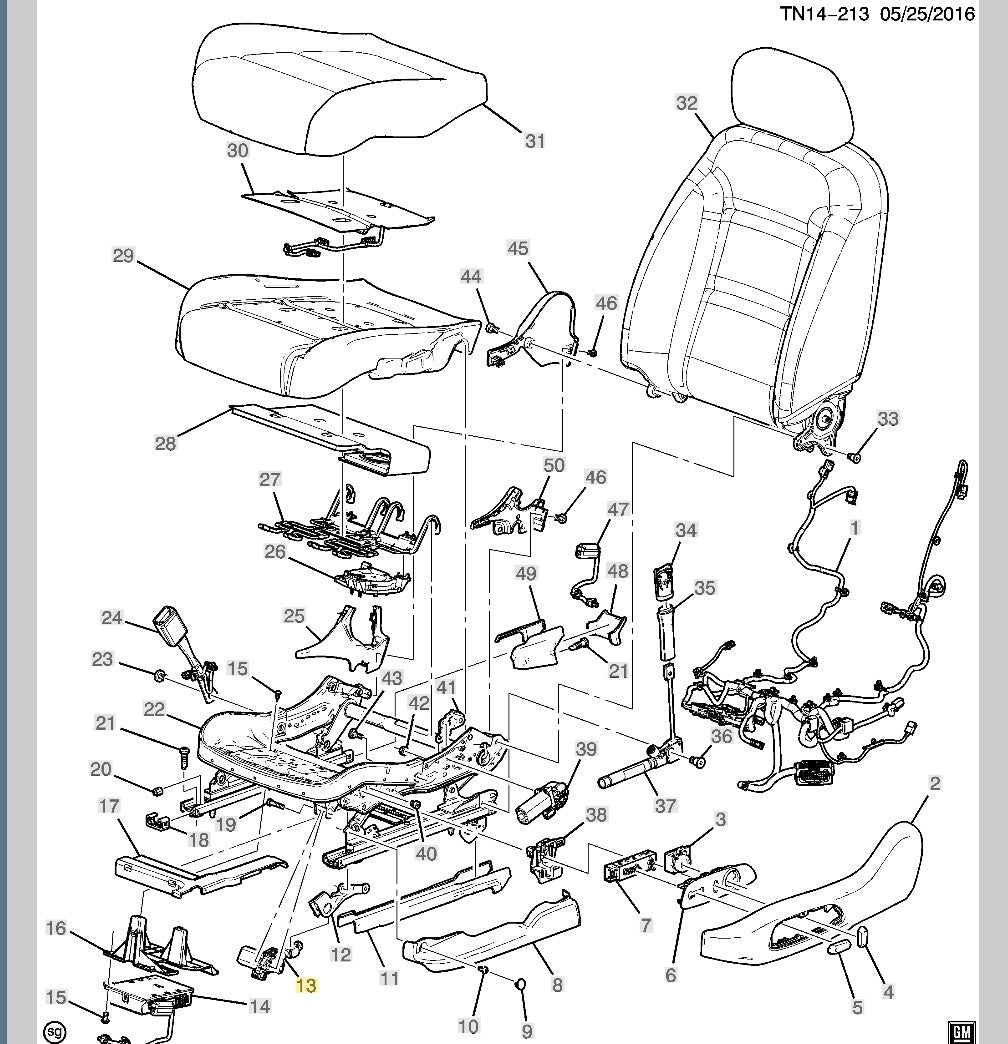

• Schematic Reference: TN14-213 — Driver Seat Cushion Assembly (items 28–31)
• Position: Driver / Front Left (LH)
• Interior Color Code: 4KB — DK Galvanized / Whisper Beige
• Cover Material: Perforated leather (Whisper Beige)
• Features: Heated + Ventilated (Cooled) Seat
• Donor Vehicle VIN: 1GKKNXLSXNZ153086 (2022 GMC Acadia)
• Platform: GM C1XX — 2017–2022 GMC Acadia Gen 2
• OEM New Retail Value: ~$315 (all four components)
• Condition: Used OEM — good condition

✅ Vehicle Fitment — Heated + Ventilated Seats Required

• 2022 GMC Acadia Denali — Heated + Ventilated standard on all Denali units
• 2021 GMC Acadia Denali — Heated + Ventilated standard
• 2020 GMC Acadia Denali — Heated + Ventilated standard
• 2019 GMC Acadia Denali — Heated + Ventilated standard
• 2018 GMC Acadia Denali — Heated + Ventilated standard
• 2017 GMC Acadia Denali — Heated + Ventilated standard
• 2022 GMC Acadia SLT with Luxury Package (RPO WPL) — Heated + Ventilated optional; confirm vehicle was built with ventilated seats (some 2022 SLT units were built without due to chip shortage)
• 2020–2022 GMC Acadia AT4 with Luxury Package (RPO WPL) — Heated + Ventilated optional; AT4 not available before 2020
• 2017–2021 GMC Acadia SLT with Luxury Package — Heated + Ventilated optional
• ⚠️ Does NOT fit: Acadia SLE (ventilated seats never available), SLT/AT4 without Luxury Package (heated only, not ventilated), or any 2023+ Acadia (Gen 3 redesign)
• Verify before ordering: Check your RPO codes on the label inside the glove box for KU9 (Ventilated Front Seats) to confirm your vehicle has this feature

🔧 Installation Notes

• All OEM components assembled together — no disassembly required
• Disconnect seat wiring harness, remove 4 seat bolts, unplug heated/ventilated connectors from underside
• Plug-and-play on matching heated + ventilated trim levels — no programming required
• Look for RPO code KU9 (Ventilated Front Seats) on your glove box sticker to confirm compatibility

🔁 Cross-Reference Part Numbers

• Vent Fan Mat: GM 13548458 (LH) | MAT, FRONT SEAT VENT FAN - LH
• Foam Pad: GM 84716926 (LH) | PAD, FRONT SEAT CUSHION - LH
• Heater: GM 86781009 | HEATER, FRONT SEAT CUSHION
• Cover (LH): GM 86779425 | COVER, FRONT SEAT CUSHION - LH
• Corresponding Passenger Cover (RH): GM 86779428
• Interior Color: 4KB | Whisper Beige / DK Galvanized
• Schematic: TN14-213 | Driver Seat Cushion Assembly
• Platform: C1XX | 2017–2022 GMC Acadia Gen 2
