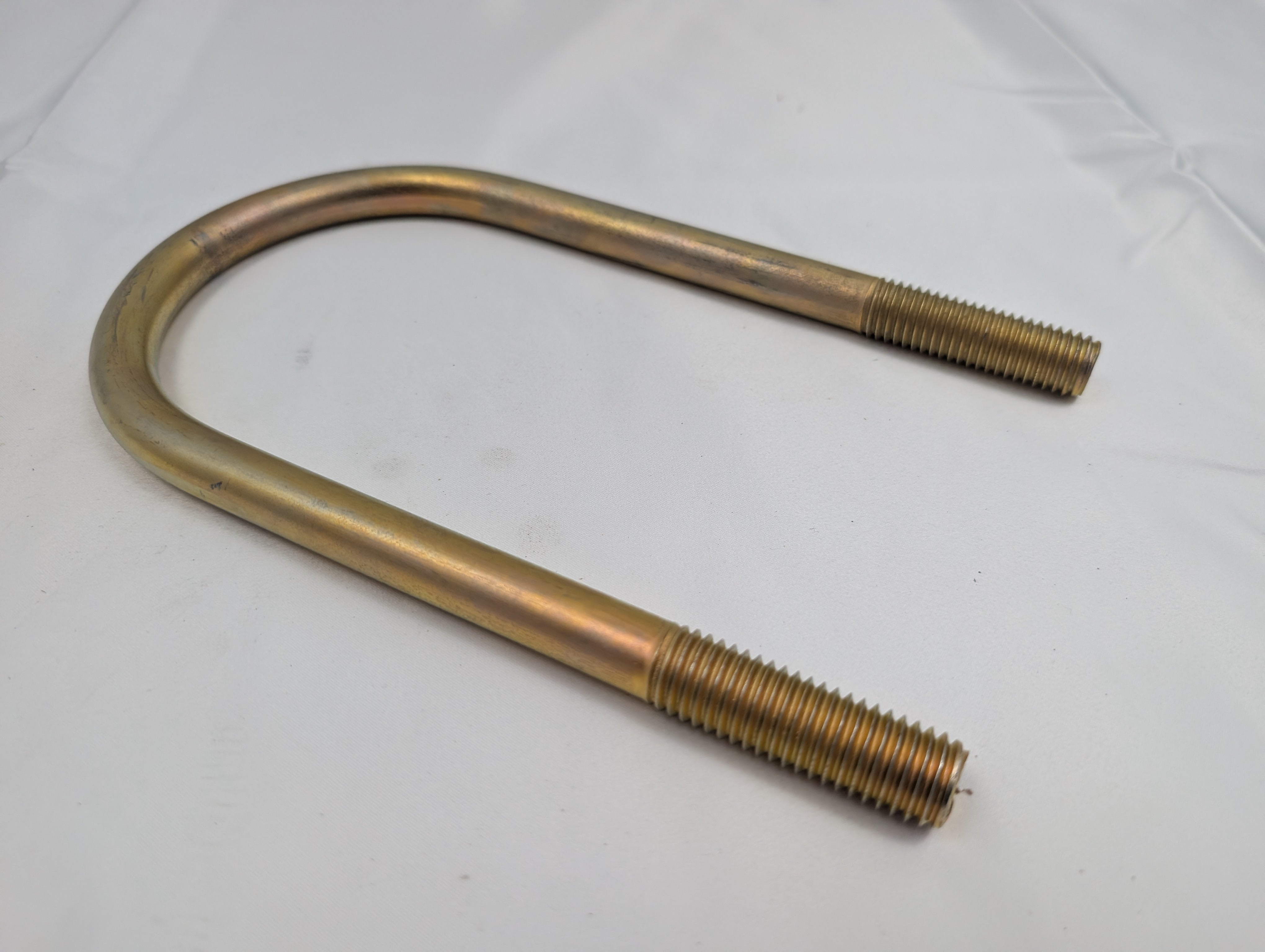

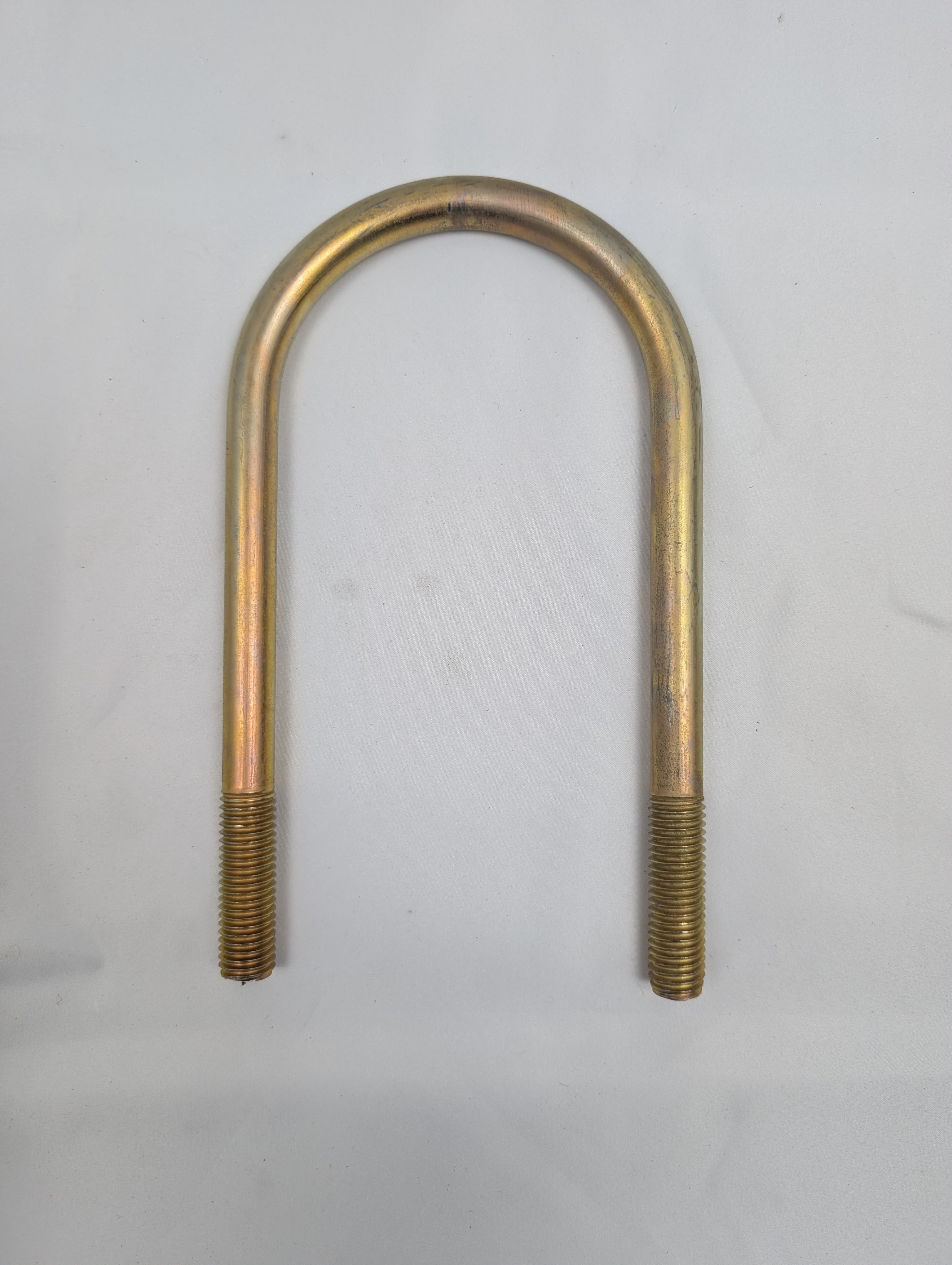

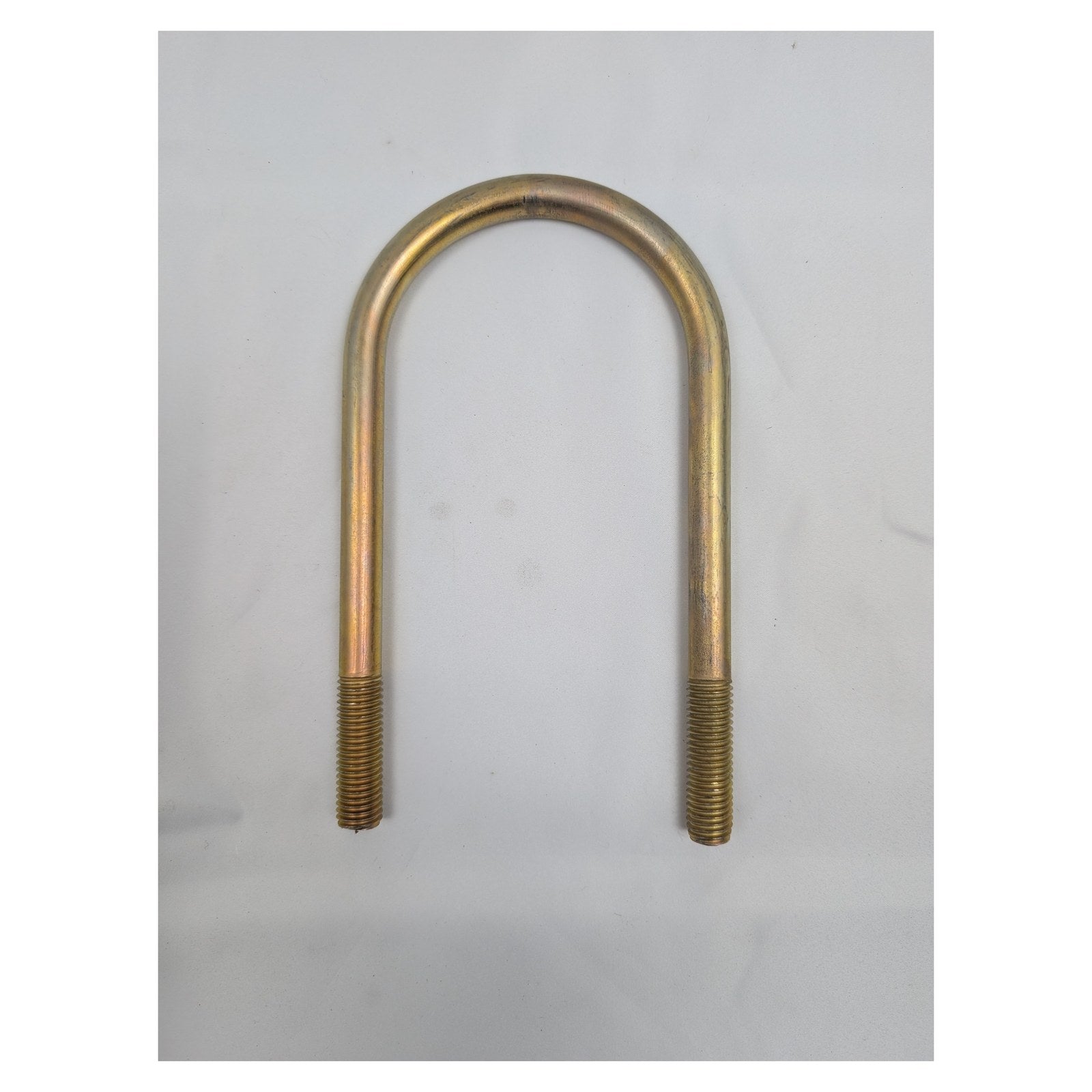

Heavy-duty trailer axle u-bolt sized 4" × 8-1/8" with 5/8"-11 thread in a round bend. Fits 4" diameter round trailer axle tubes on trailers in the 9,000 lb capacity range. Direct-fit replacement for OEM Dexter, Lippert, TRP, CP, and Al-Ko axles. Sold individually — need a pair or complete kit with nuts? See our U-bolt 2-pack, 4-pack, and kit listings.

⚠️ U-bolts are one-use fasteners. Once stretched during install, they should NOT be reused. Always install with new u-bolts when replacing springs, axles, or doing any suspension work. Torque spec: 85-100 ft·lbs for 5/8" thread (verify with your axle manufacturer).

⚙️ Key Features

• Heat-treated raw steel — engineered for stretch and torque retention
• Rolled threads — stronger than cut threads, resist stripping under high torque
• OEM-spec dimensions — direct fit for major heavy-duty trailer axle brands
• Round bend profile — matches round axle tube

📐 Specifications

• Inside Width (axle clearance): 4"
• Length (leg depth): 8-1/8"
• Thread Size: 5/8"-11
• Shape: Round
• Material: Heat-treated carbon steel
• Fits Axle Tube: 4" diameter round
• Fits Axle Capacity: 9,000 lb

🔄 Cross-References

This u-bolt is interchangeable with the following manufacturer part numbers (OEM replacement):

• Dexter: 011-064-00
• Also Fits: 9K Dexter / Al-Ko / Hayes 4" tube axles

🔧 What's Included

• (1) U-bolt (nuts sold separately — see part 854-6038)

🛠 Compatible Axles

Heavy-duty trailer axles with 4" round tube profile in the 9,000 lb range:

• Dexter 9K / 10K GD / 10K HD / 12K / 15K sprung axles (as applicable)
• Lippert / LCI equivalent capacity axles
• TRP / TruRyde heavy-duty sprung axles
• Al-Ko, Hayes, Redline equivalent capacity axles
• Most OEM commercial / equipment / gooseneck / deckover trailer axles in this range

📦 Buy in Pairs or as a Kit

U-bolts typically install in pairs (one per side of axle). For convenience, we offer:

• 854-1064-2PK — 2 U-bolts (one axle side)

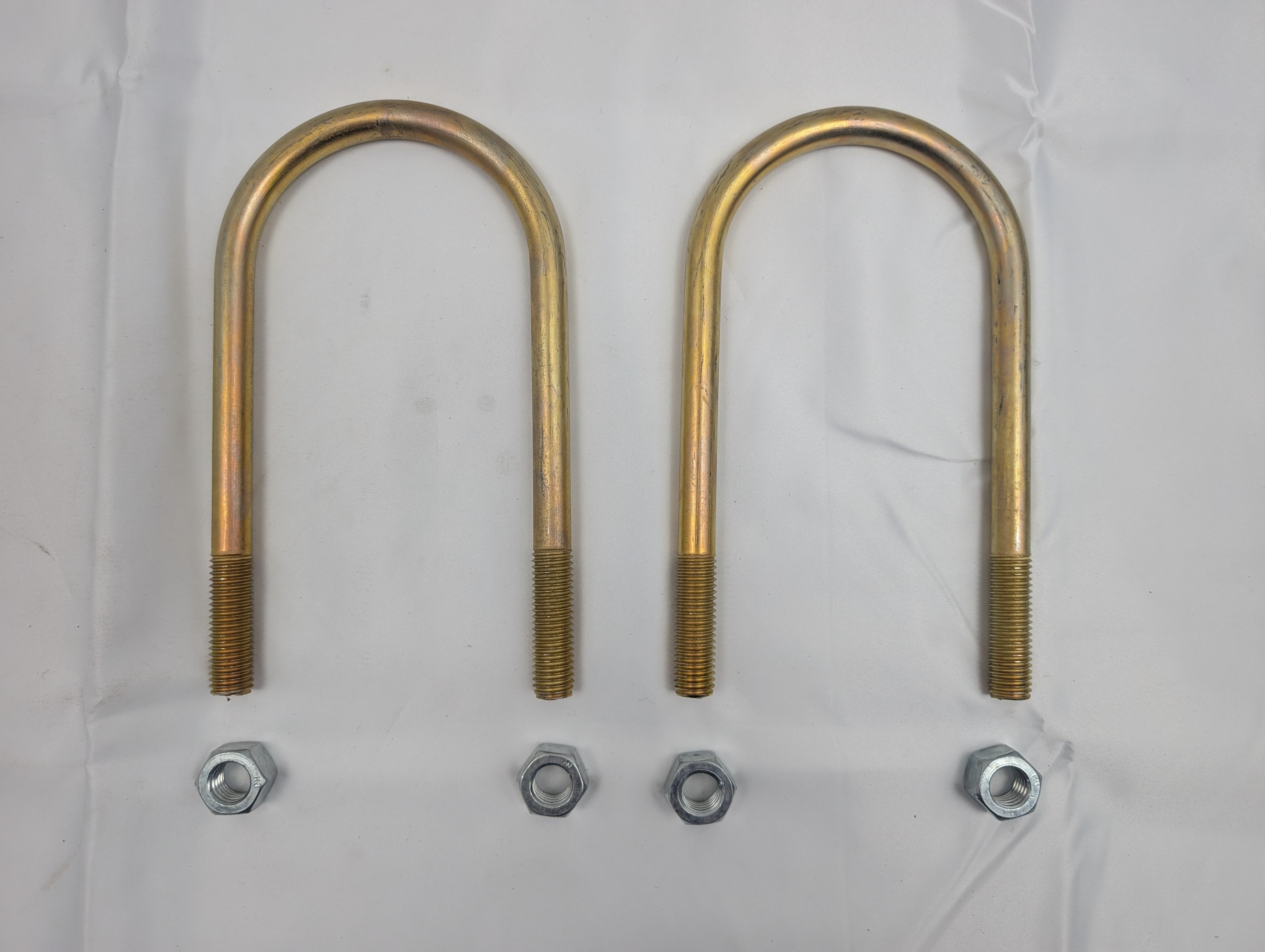

• 854-1064-KIT — 2 U-bolts + 4 matching locknuts (complete one-side kit)
• 854-1064-4PK — 4 U-bolts (tandem axle or both sides)
• 854-1064-4PK-KIT — 4 U-bolts + 8 matching locknuts (complete tandem kit)

🔄 Related Parts

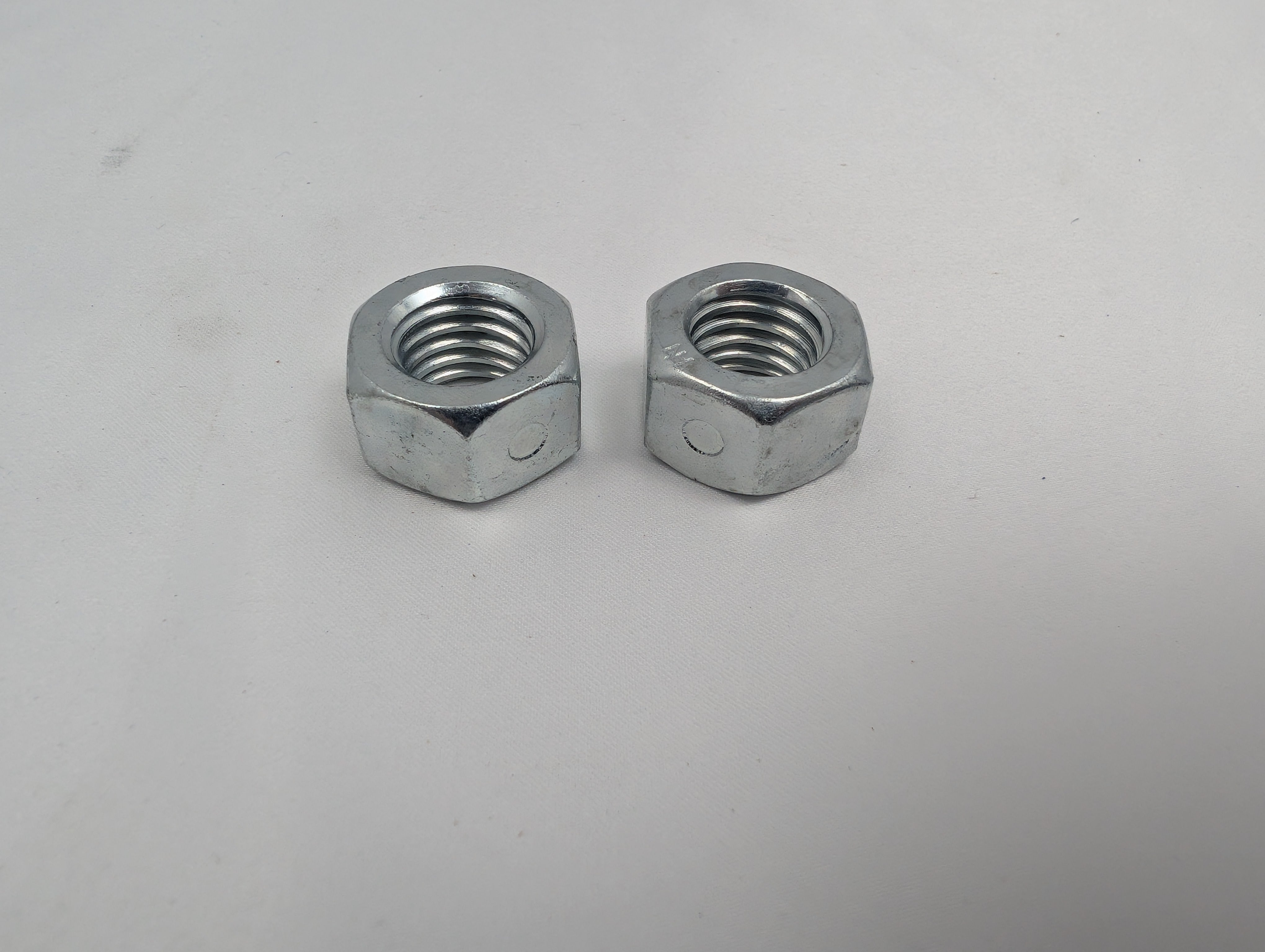

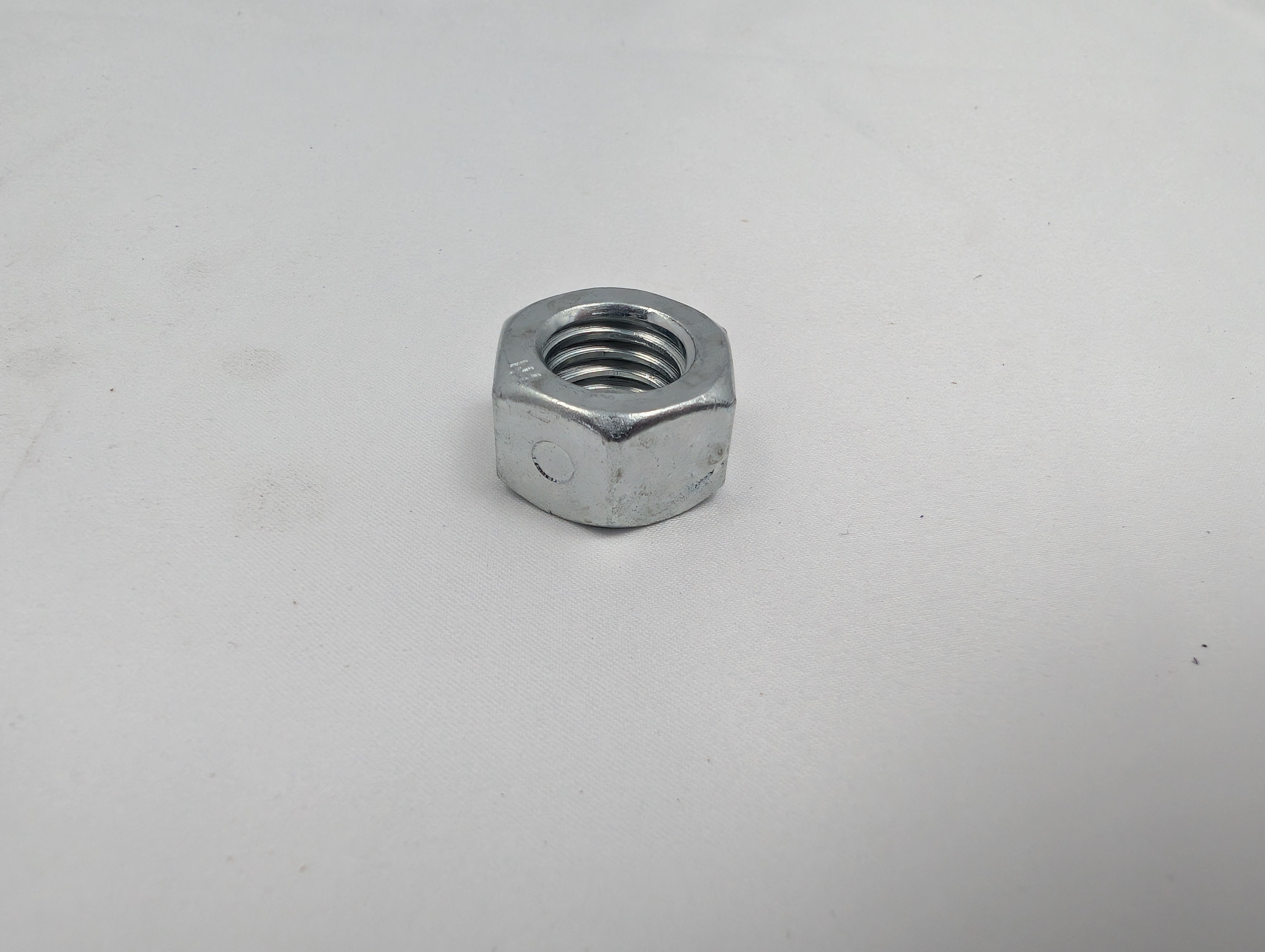

• Locknuts (854-6038) — 5/8"-11 matching locknuts
• Tie plates — axle spring plates for this tube diameter
• Leaf springs — always replace with new u-bolts

💡 Pro Tip: For heavy-duty applications always torque in a criss-cross pattern in 2-3 passes. Re-torque after the first 50 miles and again at 500 miles to compensate for initial settling.

Questions about heavy-duty axle hardware? Call or text AAA Trailer at 517-225-1991 — we stock u-bolts, nuts, tie plates, and axle hardware for trailers from 2,000 lb utility up through 15,000 lb commercial. Same-day shipping from Howell, Michigan.

📞 Call/Text: 517-225-1991   🌐 AAATrailer.com
