TRP 10k Trailer Brake Idler Hub for 9-10K Axles with 12-1/4 x 3-3/8 brakes

TRP 10k Trailer Brake Idler Hub for 9-10K Axles with 12-1/4 x 3-3/8 brakes

$235.00
$235.00

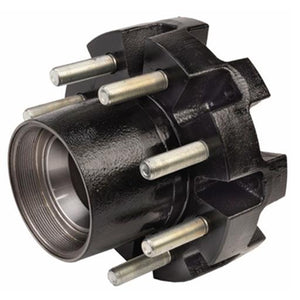

The Dexter Compatible TRP Trailer Hub Assembly is designed for 10,000-lb trailer idler axles. It fits 12-1/4" diameter x 4" wide drums and is compatible with 16", 16-1/2", 17", and 17-1/2" wheels. This hub uses a standard 8 on 6-1/2" bolt pattern with 5/8" wheel studs. Components such as the inner bearing (395S), outer bearing (387A), races, oil seal (10-56), retaining ring (33-52-1), and lug nuts (6-109) are sold separately.
Features:
  • Compatible with 10,000-lb Dexter idler axles.
  • Designed for 12-1/4" x 4" trailer brake drums.
  • Requires separate purchase of bearings, races, oil seal, oil cap, retaining ring, and lug nuts.
Specifications:
  • Application: 10,000-lb trailer axles with a 3-1/4" inner diameter oil seal.
  • Bolt pattern: 8 on 6-1/2".
  • Wheel stud dimensions: 5/8" diameter x 1-1/16" long.
  • Grease cap flange diameter: 3.5".
  • Weight capacity: 5,000 lbs per hub.
Bearing, Race, and Seal Details (Sold Separately):
  • Inner bearing: 395S (2.625" inner diameter).
  • Outer bearing: 387A (2.250" inner diameter).
  • Inner race: 394A.
  • Outer race: 382A.
  • Oil seal: 10-56 (3.125" inner diameter, 4.500" outer diameter).
Product Details:
  • Compatible wheel sizes: 16", 16-1/2", 17", 17-1/2"
  • Axle rating: 10,000 lbs
  • Stud size: 5/8"
