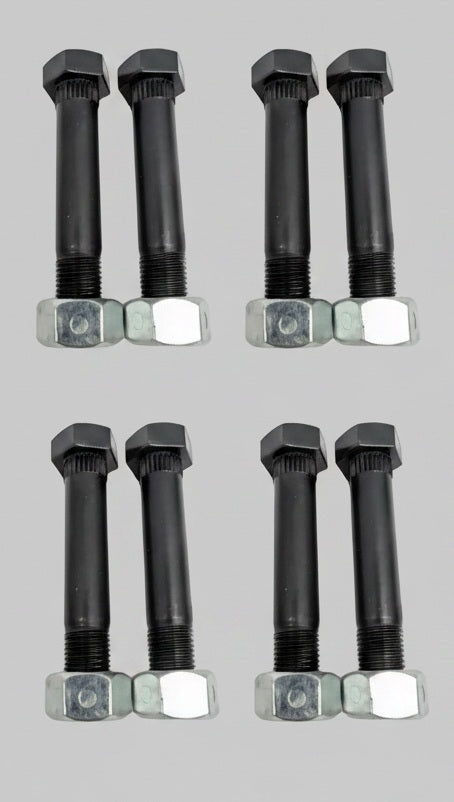

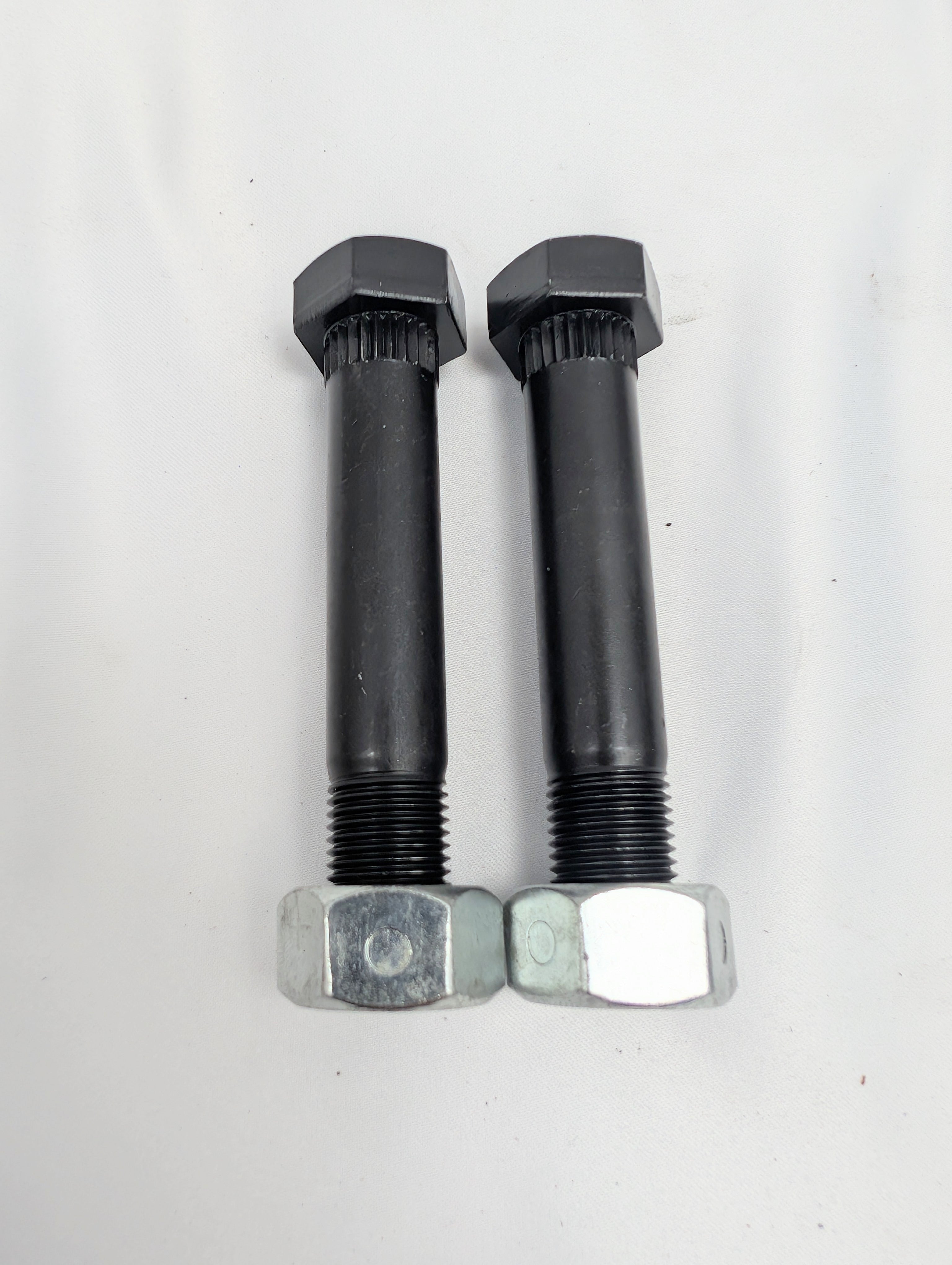

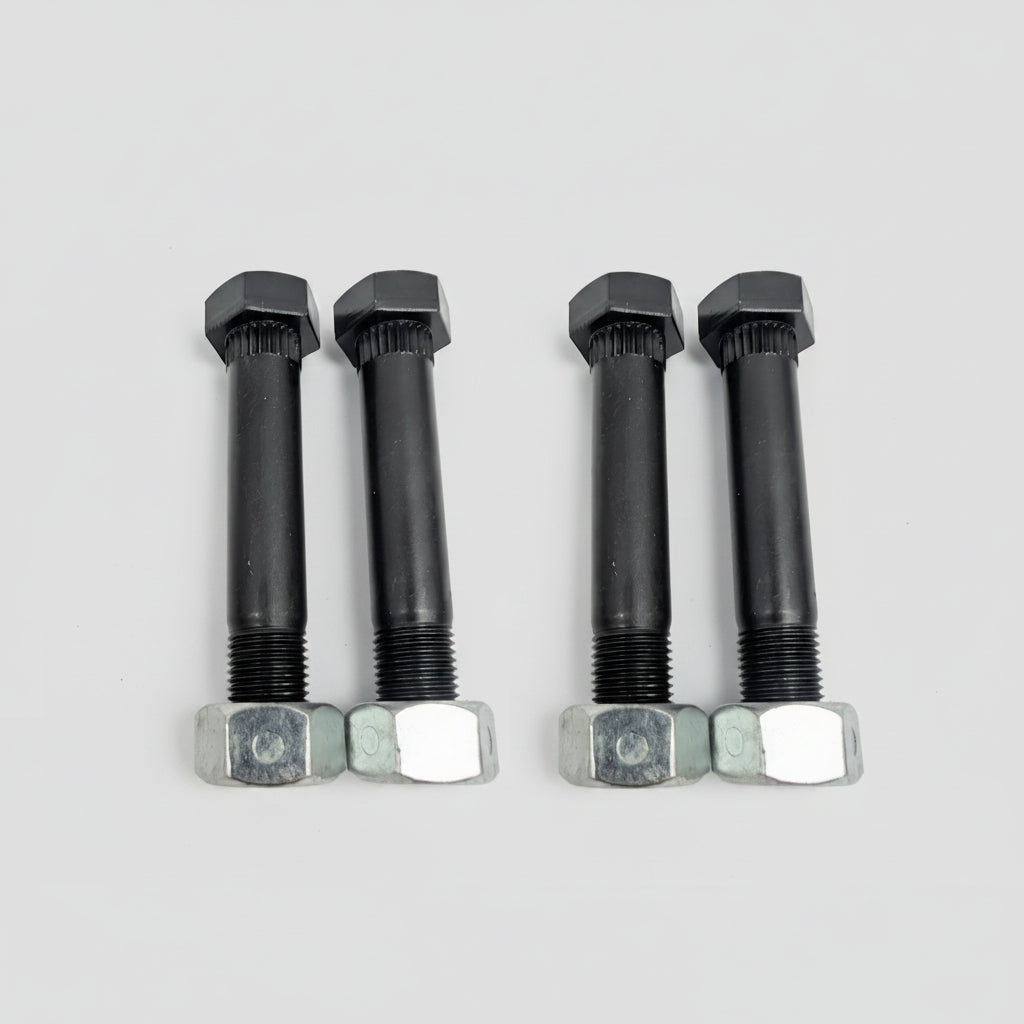

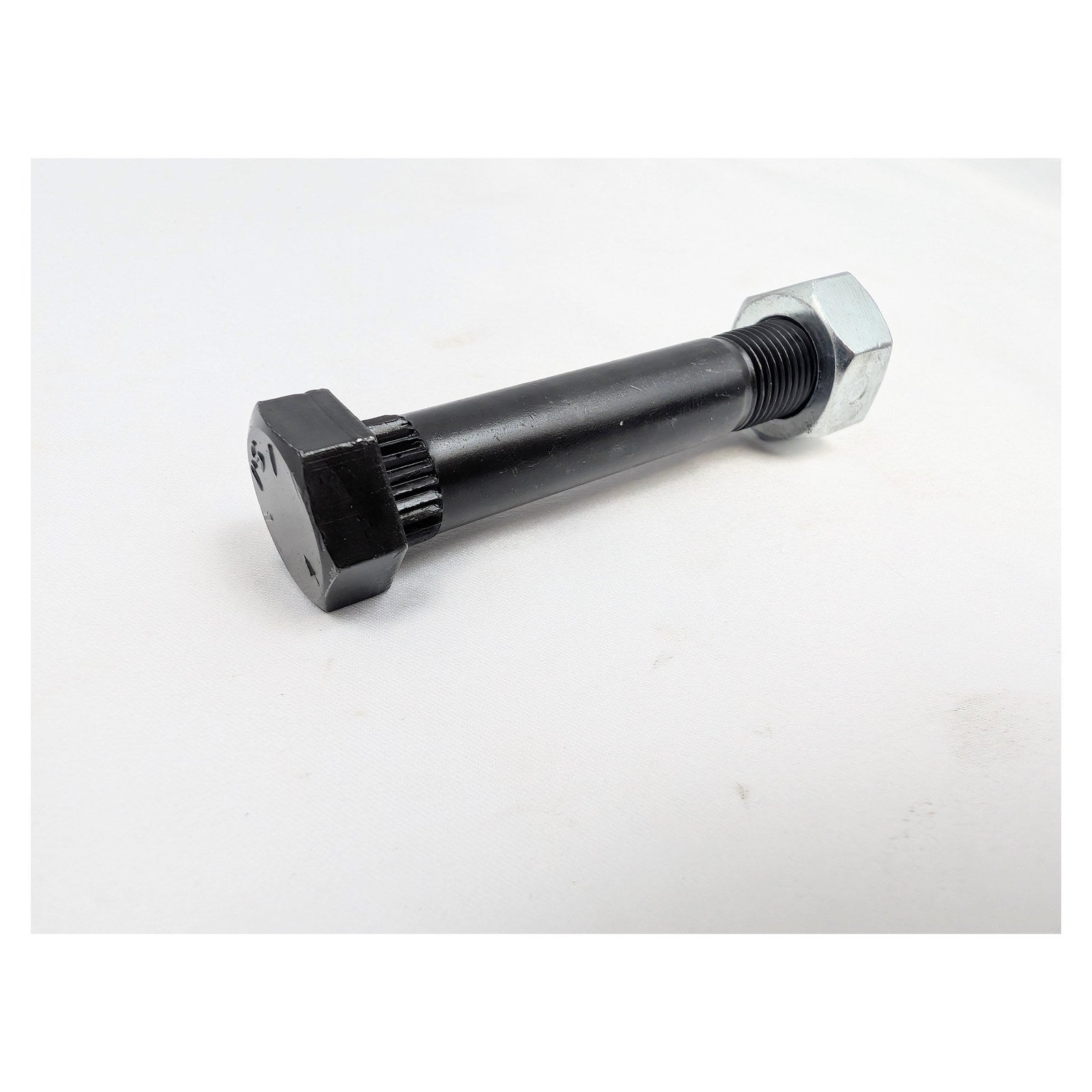

Splined Straight-Shank 9/16"-18 × 3" Shackle Bolt

The TruRyde® 1181 is a splined straight-shank shackle bolt with a full 9/16" shank and 9/16"-18 fine thread. The serrations under the hex head bite into the shackle bracket on installation, locking the bolt against rotation during torque and preventing loosening from road vibration.

• Serrations under the hex head — bolt won't spin during install or service
• Full 9/16" straight shank — same diameter shoulder-to-thread (no step-down)
• 9/16"-18 thread (UNF, fine pitch — 18 TPI)
• 3" overall length
• Grade 5 high-strength steel
• Matching prevailing-torque lock nut included — resists vibration loosening
• Non-greasable (plain hex head, no zerk fitting)

🔍 Which shackle bolt do I need? There are four common 9/16" shackle bolts for trailer suspensions. Measure your existing bolt carefully — these are NOT interchangeable:

• This one (854-1181): Splined head, full 9/16" straight shank, 9/16"-18 thread, 3" long, non-greasable
• 854-1182 / FA-7-17: Same bolt, different length (3-1/2" version)
• FA-7-126: Step-down bolt — 9/16" shoulder narrows to 7/16"-20 thread (different thread, different nut)
• FA-7-187: Greasable wet bolt version of FA-7-126 (step-down with grease zerk)

Double-check thread pitch AND whether the thread diameter matches the shank diameter before ordering.

Specifications (Per Bolt)

• Part Number: 1181 (AAA SKU: 854-1181)
• Brand: TruRyde® (Dexter Axle Group)
• Type: Splined Straight-Shank Shackle Bolt (Non-Greasable)
• Shank Diameter: 9/16" (full length, no step-down)
• Thread: 9/16"-18 UNF (fine pitch, 18 TPI)
• Length: 3"
• Head: Hex with serrations under the head
• Material: Grade 5 high-strength steel
• Finish: Black oxide bolt, zinc-plated hex lock nut
• Includes: (1) 9/16"-18 prevailing-torque hex lock nut per bolt
• Application: Trailer leaf spring shackle and equalizer mounting

Applications

• Leaf spring shackles on single-axle and tandem-axle trailers
• Equalizer center-pivot connections
• Direct replacement for splined factory shackle hardware
• Utility, cargo, boat, landscape, and equipment trailer suspensions

Fits most: utility trailers, enclosed cargo trailers, equipment trailers, boat trailers, landscape trailers, and tandem-axle trailers using splined 9/16"-18 shackle hardware from TruRyde®, Lippert (LCI), Dexter Axle, and equivalent manufacturers.

Key Features

• ✓ Splined head bites into bracket — no bolt-rotation issues during torque
• ✓ Grade 5 steel construction
• ✓ Prevailing-torque hex lock nut included — no separate nut to buy
• ✓ Black oxide finish resists corrosion
• ✓ Direct factory replacement — no modifications needed

Fitment & Compatibility

Compatible with: TruRyde®, Lippert (LCI), Dexter Axle, and most standard trailer leaf spring suspensions using splined 9/16"-18 shackle bolt holes.

Works with: shackle straps, equalizers, nylon bushings, and bronze (oilite) bushings.

Cross-references: 1181, 854-1181

⚠ Always verify bolt diameter, length, thread pitch, and head style before ordering. Measure your existing bolt and confirm it has serrations under the head and a full-diameter (non-step-down) shank.
