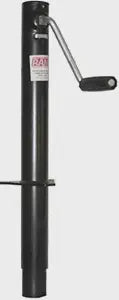

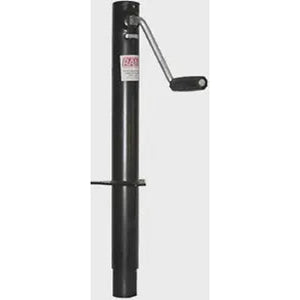

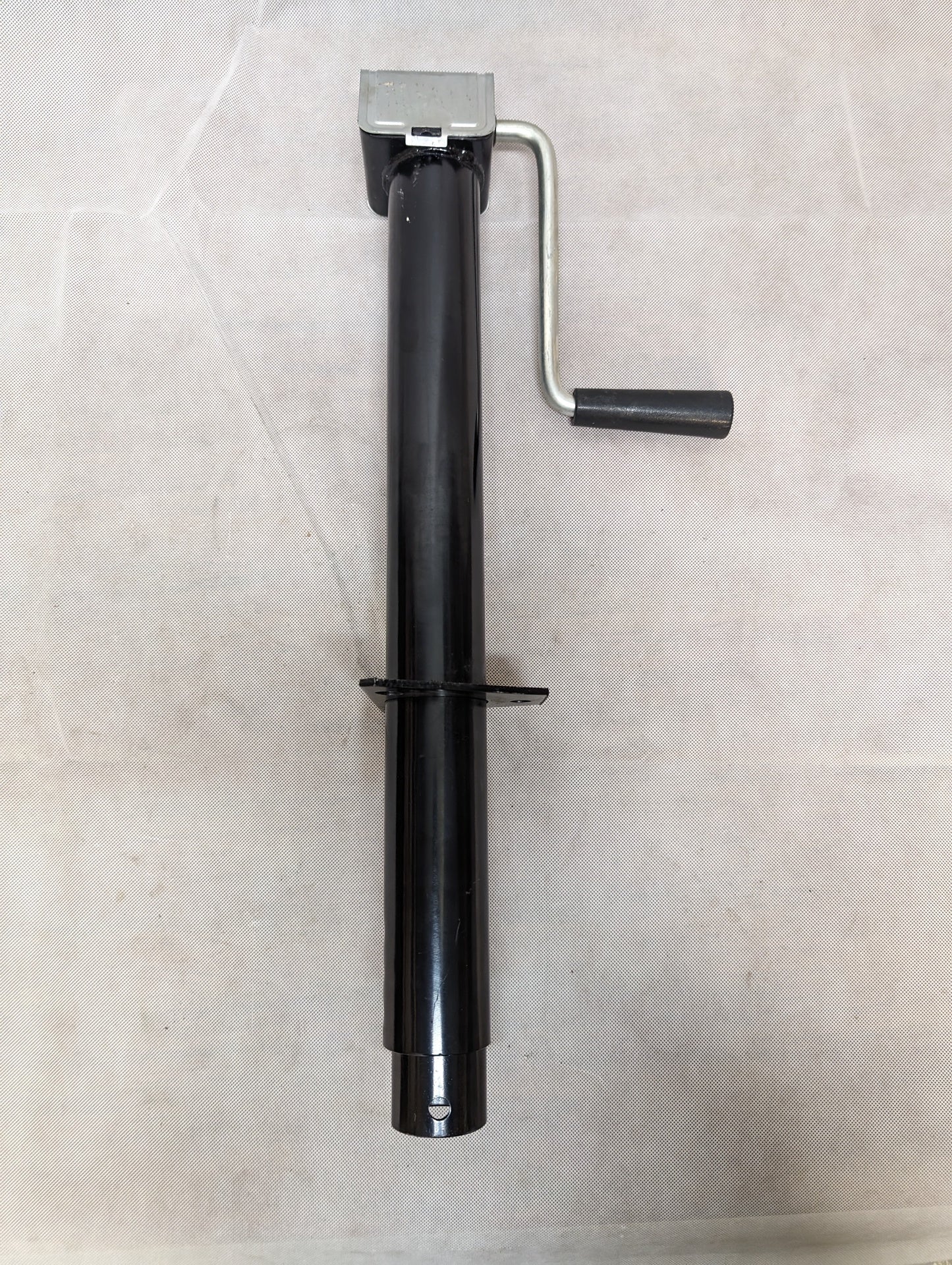

⚓ RAM TJA-2000S — 2,000 lb Sidewind A-Frame Trailer Jack | 15" Travel | Black Powder Coat

The RAM TJA-2000S is the sidewind version of RAM's industry-standard 2,000 lb A-frame tongue jack — built for utility, cargo, horse, flatbed, and single-axle trailers where a side crank handle works better than a top wind. The internal zinc-finish gearbox and grooved comfort handle deliver smooth, controlled cranking, while the black powder coat finish on both inner and outer tubes keeps rust at bay season after season. Bolt-on or weld-on A-frame mounting means it drops right into virtually any standard A-frame bracket.

⚙️ Key Features

• 2,000 lb Lift Capacity — Handles tongue weight for most single-axle trailers up to 10,000 lb GVWR
• 3,000 lb Support Capacity — Safely holds trailer weight when parked and unhitched
• 15" Travel — Extra reach vs. 10" jacks; ideal for taller trailers and high-deck applications
• Sidewind (Side Crank) Handle — Internal gearbox with zinc-finish grooved comfort handle; smooth operation alongside the trailer frame
• Black Powder Coat Finish — Applied to both outer and inner tubes for double corrosion protection
• Bolt-On or Weld-On A-Frame Bracket — Universal 3" center-to-center mounting hole pattern; fits virtually all standard A-frame tongue mounts
• Pre-Drilled Inner Tube — Bottom of inner tube pre-drilled for optional foot plate installation
• Swivel Pull Pin — Shared pull pin design works with 2,000–5,000 lb RAM jacks
• Inner Leg Retention — When fully retracted, inner leg extends only 2-5/8" from outer tube — stays compact and tidy

📐 Specifications

• Brand: RAM Trailer Products
• MPN: TJA-2000S
• Also Known As: TJA2000S, TJA-2001S-B, TJA-2000S-B
• Lift Capacity: 2,000 lbs
• Support Capacity: 3,000 lbs

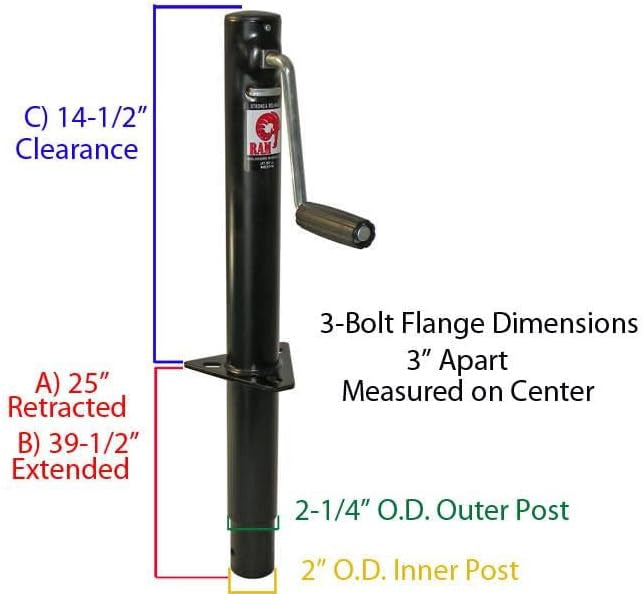

• Travel: 14-1/2" (listed as 15")
• Bracket Height (retracted, bracket to bottom): 9-1/4"
• Extended Height (bracket to bottom): ~24-1/4"
• Overall Retracted Height: ~25"
• Outer Tube Diameter: 2-1/4"
• Inner Tube Diameter: 2"
• Mounting Hole Spacing: 3" center-to-center (standard A-frame)
• Finish: Black powder coat (inner and outer tubes) / Zinc (handle arm & gearbox)
• Wind Direction: Sidewind (side crank)
• Mounting Style: Bolt-on or weld-on A-frame bracket
• Foot Plate: Not included — pre-drilled for optional foot installation

🔧 Fitment & Installation Notes

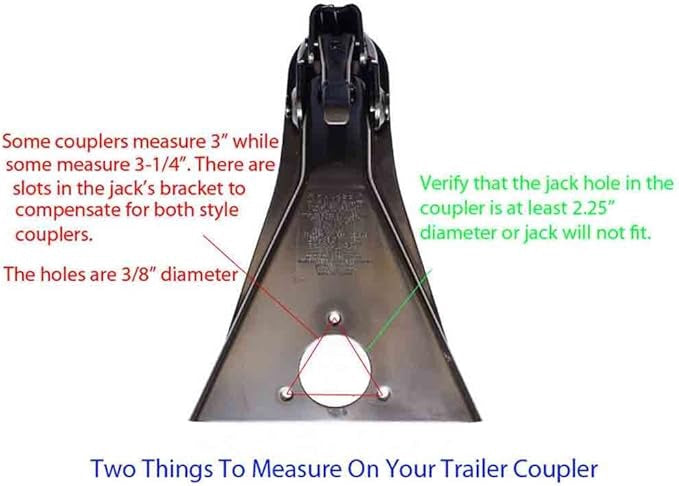

• Direct bolt-on replacement for any standard A-frame tongue jack with 3" center-to-center mounting holes
• All A-frame jacks share the universal 3" bolt pattern — if your trailer has an A-frame mount, this jack fits
• Compatible with optional drop leg JF-1005H-Z for additional 8" of reach on high-deck trailers
• Compatible with caster wheel upgrades JC-101 (poly, 6") and JC-102 (steel, 6") — note: caster reduces capacity to 1,200 lbs
• Replacement sidewind handle available for TJA-2000S Series if handle is lost or damaged
• Replacement gear kit and bearing available for long-term serviceability
• Suitable for: utility trailers, flatbed trailers, equipment trailers, snowmobile trailers, car haulers, camper trailers, cattle trailers, and horse trailers
• Match jack capacity to your trailer's tongue weight — typically 10–15% of loaded trailer GVWR

🔁 Cross-Reference / Related Part Numbers

• RAM TJA-2000S | TJA2000S | TJA-2001S-B | TJA-2000S-B
• Replaces Bulldog 155033 (sidewind equivalent)
• Preferred sidewind replacement for Bulldog Rack & Gear Jack BD165412 (obsolete)
• Prefer top wind? See RAM TJA-2000-B (black) or RAM TJA-2000-Z (zinc)
• Need 5,000 lb sidewind? See RAM TJA-5000S
