• Side Frame Mount Jack
• 9001 - 10000 lbs
• Sidewind Jack
• Drop Leg
• Weld-On
• Fixed Mount Jack
• 26 Inch Lift
• With Rectangle Foot

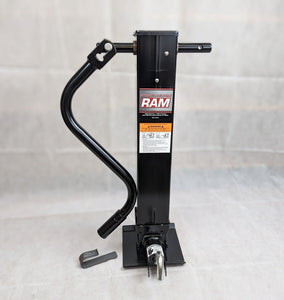

Pull the front-facing plunger pin on this jack to release the drop leg for 13-1/2" of lift on top of the 12-3/8" of screw travel. Durable screw offers increased strength. Built-in grease zerk allows simple greasing. Sidewind crank included.

Features:

• Heavy-duty utility jack lets you raise and lower your trailer
• Ideal for agricultural and commercial applications
• Drop leg with spring return increases overall extension for maximum adjustability
• Plunger pin positioned to the front
• Durable 1" jack screw allows for heavy lifting
• Twin thrust bearings make extending and retracting jack easy
• Effortless greasing with built-in grease zerk
• Black painted inner and outer tubes
• Sidewind handle has curved edges - no sharp ends
• Handle can be secured for travel with included weld-on clip
• Footplate minimizes sinking in soft ground
• Weld-on installation

Specs:

Height:

28" Retracted
40-1/4" Extended

• Total lift: 25-7/8"
• Screw travel: 12-3/8"
• Drop leg travel: 13-1/2"
• Lift capacity: 10,000 lbs
• Support capacity: 12,000 lbs
• Outer tube width: 4"
• Inner tube width: 3-1/2"
• Footplate dimensions: 8-1/4" long x 8" wide
• Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
• 1-Year warranty
