KTI Dump Trailer Hydraulics 3 Quart Plastic Reservoir Complete Tank Kit with hardware
KTI 8181-35-K 3 Quart Hydraulic Reservoir Tank Kit Complete Poly Reservoir Kit for Dump Trailer Hydraulic Pumps Replace your worn or damaged hydraulic reservoir with the KTI
...Read more
...
There was an error submitting the form. Please try again.
false
Fast Shipping
Easy Returns
Secure Checkout
Licensed Dealer
KTI 8181-35-K 3 Quart Hydraulic Reservoir Tank Kit
Complete Poly Reservoir Kit for Dump Trailer Hydraulic Pumps
Replace your worn or damaged hydraulic reservoir with the KTI 8181-35-K 3 quart plastic reservoir tank kit, designed for dump trailer hydraulic systems including power up / power down and gravity down setups.

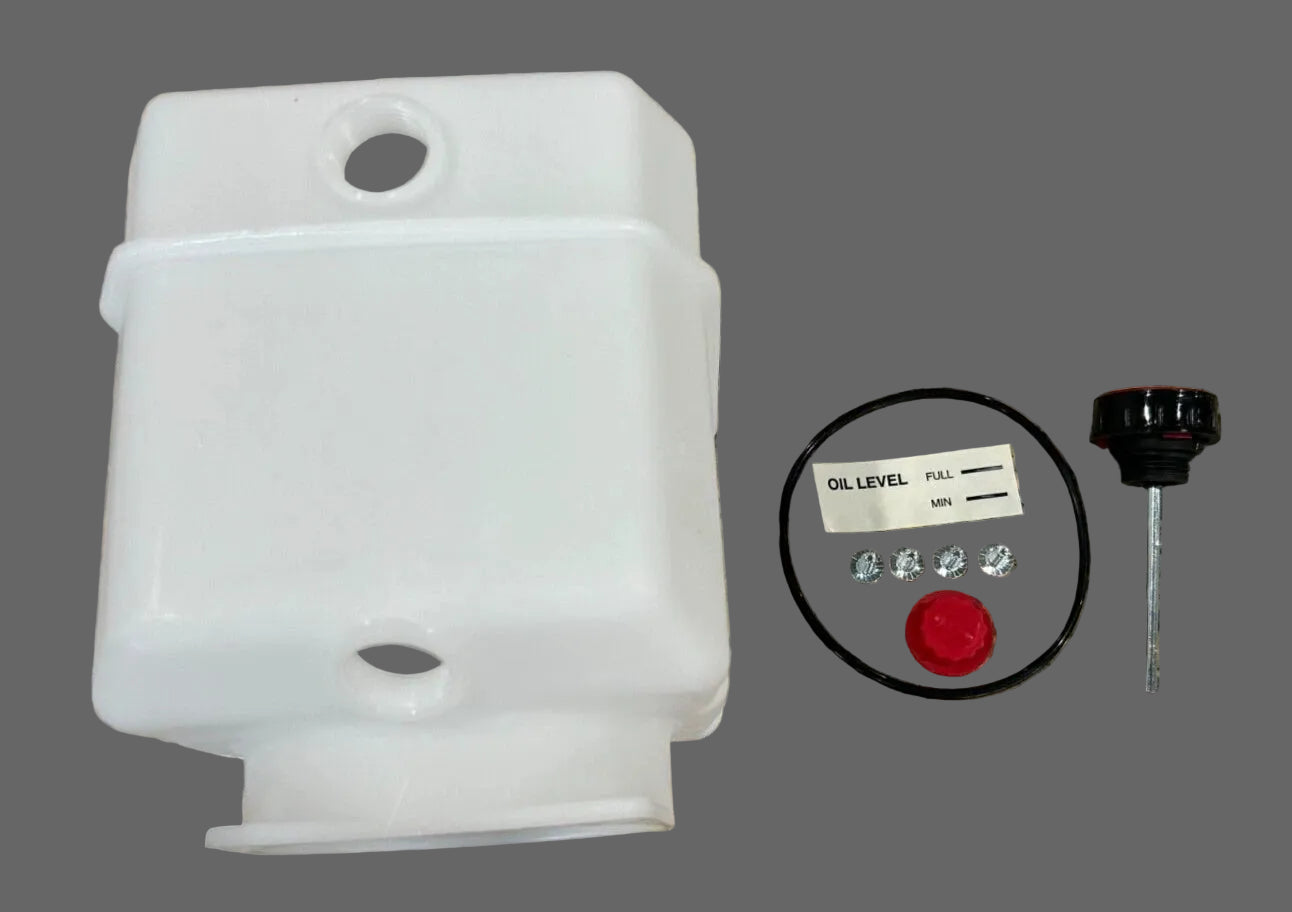

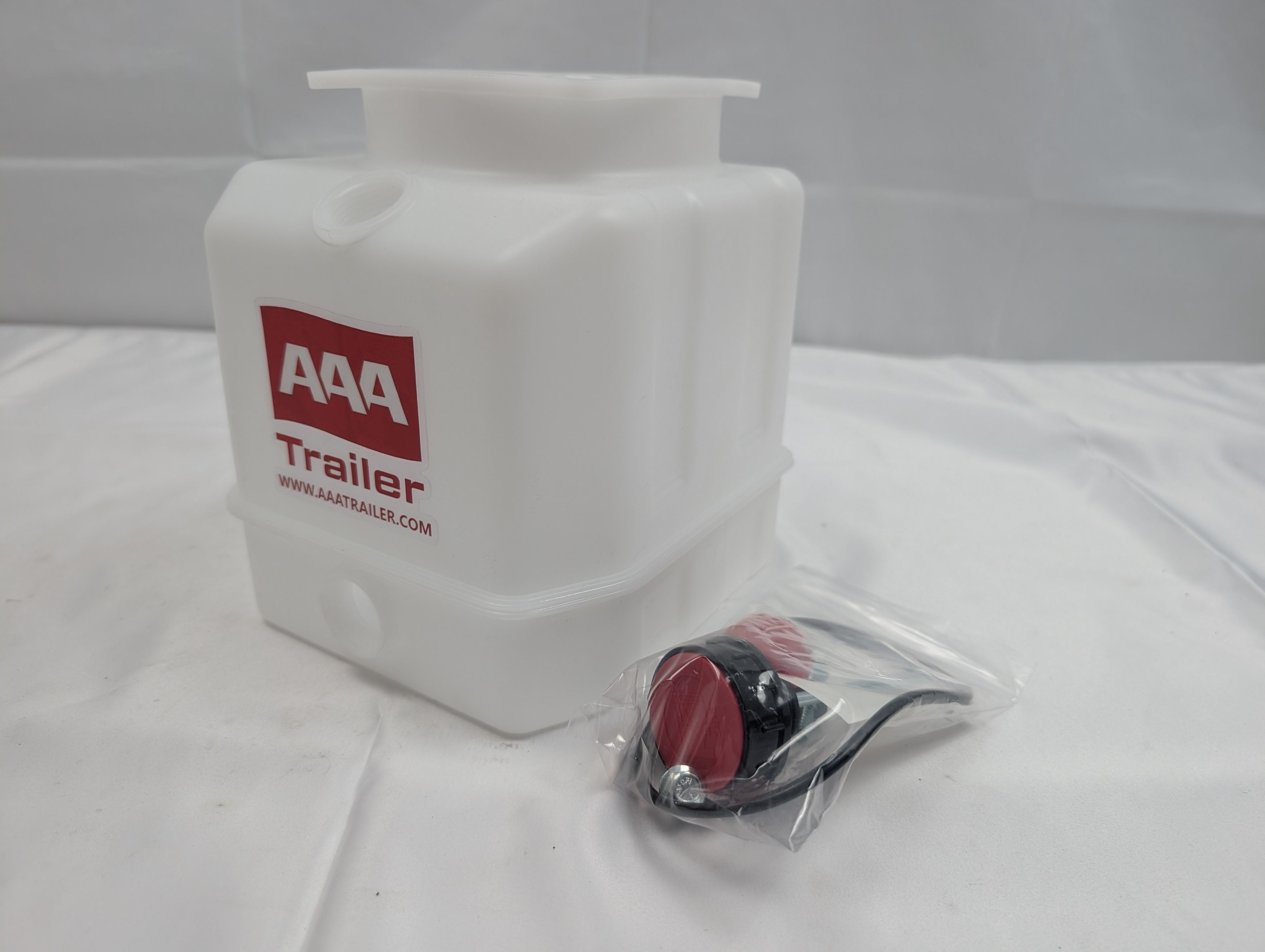

This complete kit includes the translucent poly tank, O-ring seal, dipstick breather, and reservoir plug — everything you need for a clean, leak-free installation.
💪 Built for Dump Trailer Applications
Commonly used on:
-
PJ Trailers
-
Big Tex Trailers
-
Load Trail Trailers
-
Other dump trailer hydraulic pump systems
Compatible with power up/down and gravity down hydraulic units.
📐 Specifications
| Specification | Detail |
|---|---|
| Brand | KTI Hydraulics |
| Part Number | 8181-35-K |
| Capacity | 3 Quart |
| Material | Translucent Poly Plastic |
| Opening Size | 4-11/16” Round Opening |
| Bolt Pattern | 4” Square Bolt Pattern |
| Ports | Two 1” Threaded Openings |
| Includes | O-ring, Dipstick/Breather, Reservoir Plug |
🔍 Product Features

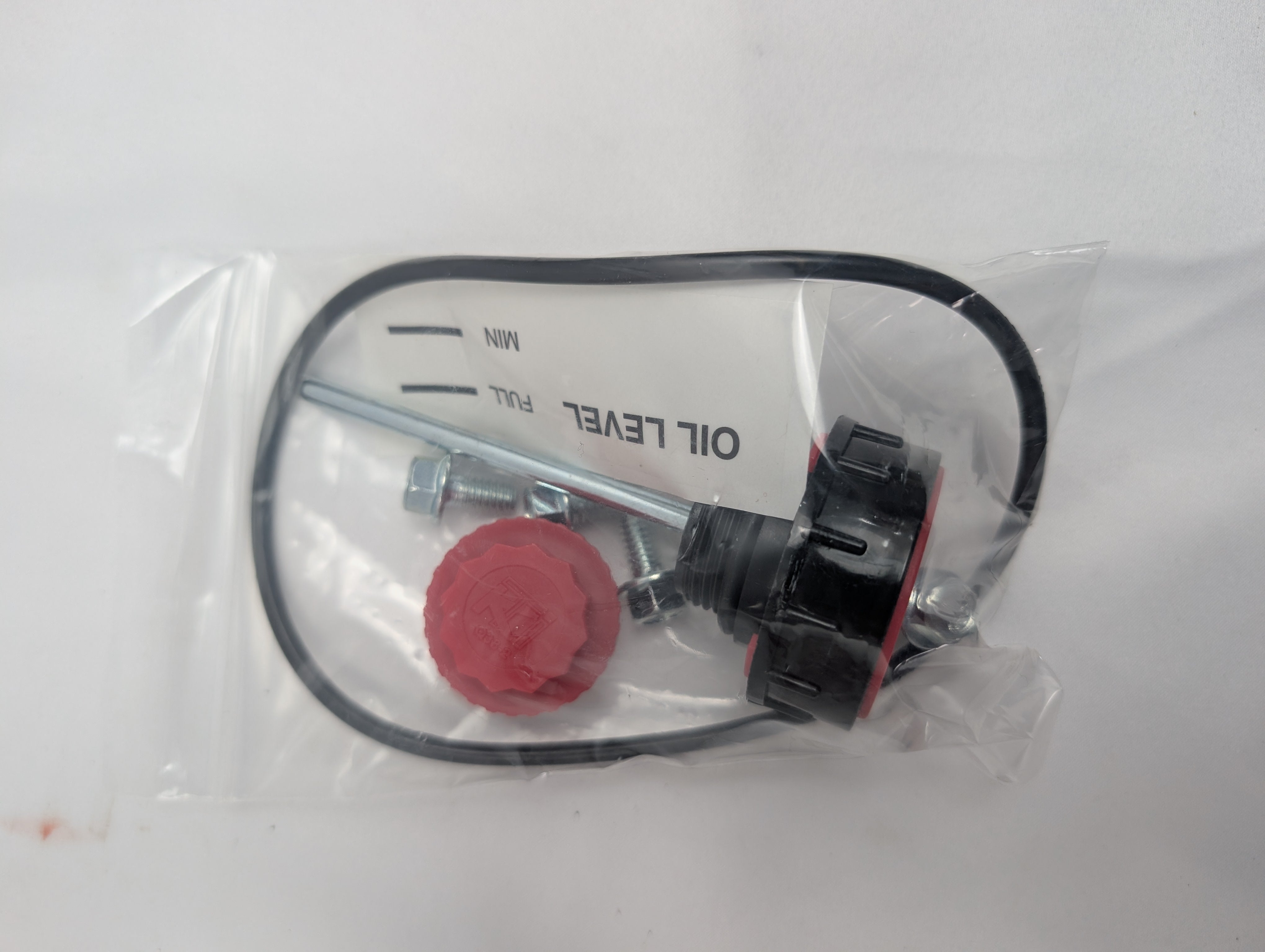

Complete Kit
Includes:
-
Poly reservoir tank
-
O-ring gasket
-
Dipstick/breather cap
-
Reservoir plug
Durable Translucent Construction
The semi-transparent plastic tank allows for quick visual inspection of hydraulic fluid levels.
Easy Installation
Designed with:
-
4-11/16” round opening
-
4” square bolt pattern
-
Dual 1” threaded ports
Direct replacement for many KTI hydraulic power units.
🛠 Common Applications
This 3 quart hydraulic reservoir is frequently installed on:
-
Dump trailers
-
Hydraulic lift trailers
-
PJ trailer dump units
-
Big Tex dump trailers
-
Gravity down hydraulic systems
If you're replacing a cracked, leaking, or discolored tank, this is the correct OEM-style solution.
🚛 In Stock & Ready to Ship
Order your KTI 3 quart reservoir tank kit today from AAA Trailer and restore your hydraulic system with confidence.
📋 KTI Catalog Data
- Type: Complete Reservoir Tank Kit
- Capacity: 3 Quart plastic
- Includes: Tank, cap, breather, fittings, hardware
- Mounting: Horizontal or vertical
🏭 About KTI Hydraulics
KTI Hydraulics Inc. — founded 1997 in Tustin, California. ISO 9001:2015 Certified. Every KTI power unit is 100% factory inspected and tested to stringent specifications before shipping. Inventor of the patented Universal Manifold® system used in dump trailers worldwide.
📞 Call/Text: 517-225-1991 🌐 AAATrailer.com
🔄 Cross Reference / Alternate Part Numbers
KTI 8181-35-K | KTI-8181-35K | 818135K | 3-quart plastic reservoir kit
Related KTI Hydraulic Products
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI Dump Trailer Hydraulics 3 Quart Plastic Reservoir Complete Tank Kit with hardware
Sale price
$0.00
Regular price
$58.50
SAVE $-58.50
Literature & Documentation
Specifications (from the KTI catalog)
| Usable volume (horizontal) | 3 QT |
| Tank length “A” | 8.00" |
| Material | Polyethylene (plastic square series) |
Fill to ~1" from the top with the unit at rest; the reservoir should sit about ½ full with the cylinder fully extended. Never let it drop below ½ while running.
Hydraulic fluid
KTI fluid recommendation: premium hydraulic oil with anti-wear, rust/oxidation and foam inhibitors — e.g. Chevron Rando HDZ, Mobil DTE 10/20 series, AMSOIL, Shell Tellus. Automotive ATF is acceptable under normal conditions. Do not use biodegradable hydraulic fluid, and do not mix oils.
| Ambient temperature | ISO viscosity grade |
|---|---|
| −20 °F to +32 °F | ISO 15 |
| +14 °F to +120 °F | ISO 22, 32, or ATF |
Purging air after install
Bleed cycle (purge air) in 3 steps:
- Remove the breather cap so you can watch the fluid level. Verify fluid connections are tight. Never let the level fall below half while running.
- Run the unit to extend the cylinder, keeping the level above half tank.
- At full extension, run 5–10 seconds more (bleeding over the relief valve), re-check level, retract, and repeat until operation is smooth.
Double-acting units: repeat for both power-up and power-down. If fluid foams, wait ~10 minutes before continuing. Recharge the battery afterward.
