KTI 8181-6-KIT Quart Hydraulic Reservoir Tank Kit
Complete Poly Hydraulic Reservoir for Dump Trailer Pumps
The KTI 8181-6 6 quart hydraulic reservoir tank kit is a direct replacement solution for dump trailer hydraulic power units. Designed for power up / power down and gravity down systems, this complete kit includes everything needed for installation.
If your hydraulic tank is cracked, leaking, or discolored, this OEM-style KTI reservoir restores proper function and fluid capacity.
💪 Built for Dump Trailer Applications
Commonly used on:
-
PJ Trailers
-
Big Tex Trailers
-
Load Trail Trailers
-
Other dump trailer hydraulic systems
Compatible with:
-
Power up / power down pumps
-
Gravity down hydraulic units
📐 Specifications
| Specification | Detail |
|---|---|
| Brand | KTI Hydraulics |
| Part Number | 8181-6 |
| Capacity | 6 Quart |
| Material | Translucent Poly Plastic |
| Opening Size | 4-11/16” Round Opening |
| Bolt Pattern | 4” Square Bolt Pattern |
| Ports | Two 1” Threaded Openings |
| Includes | O-ring, Dipstick/Breather, Reservoir Plug |
🔍 Product Features
Complete Kit

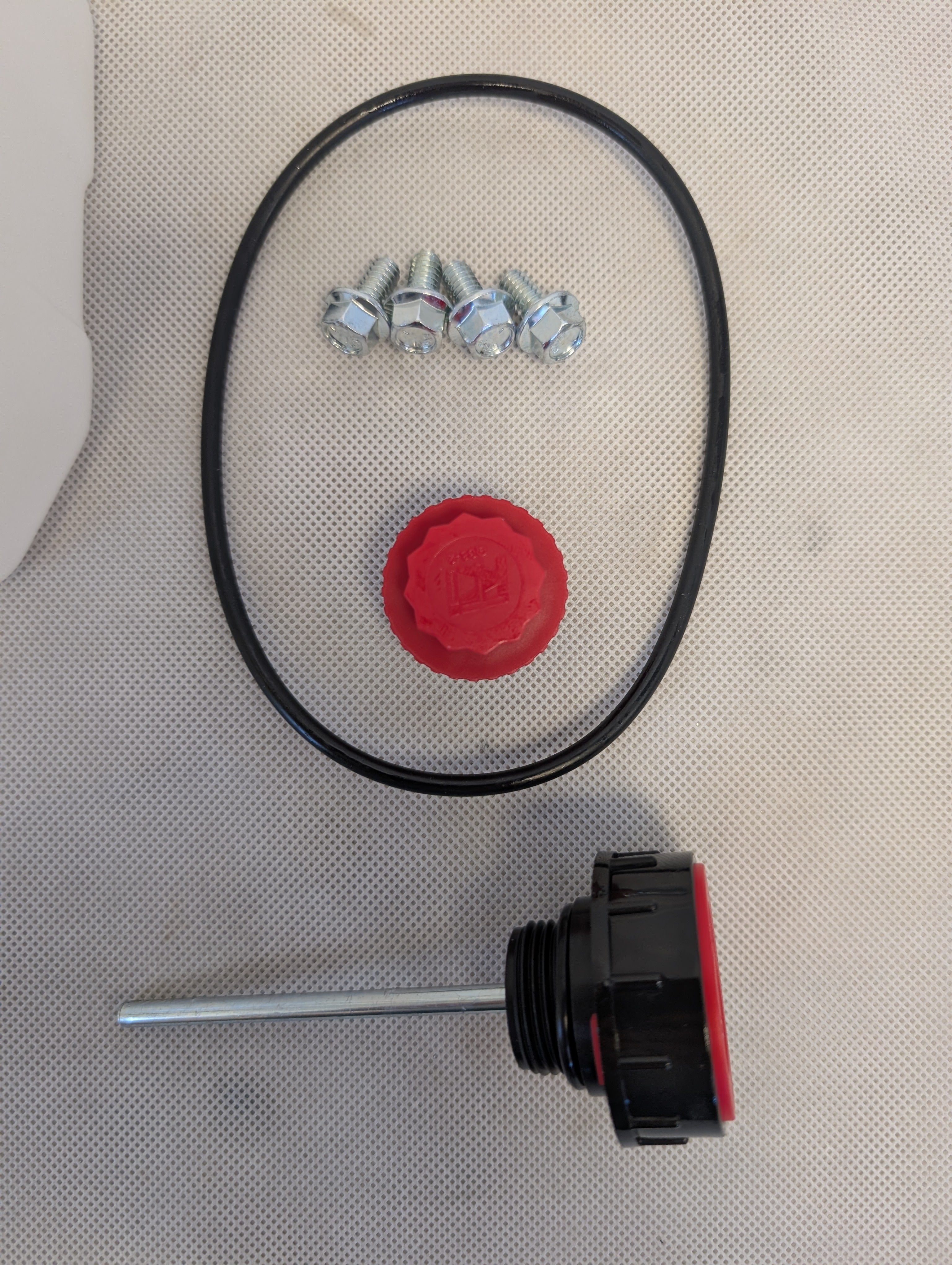

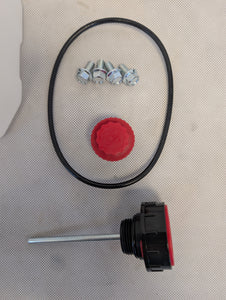

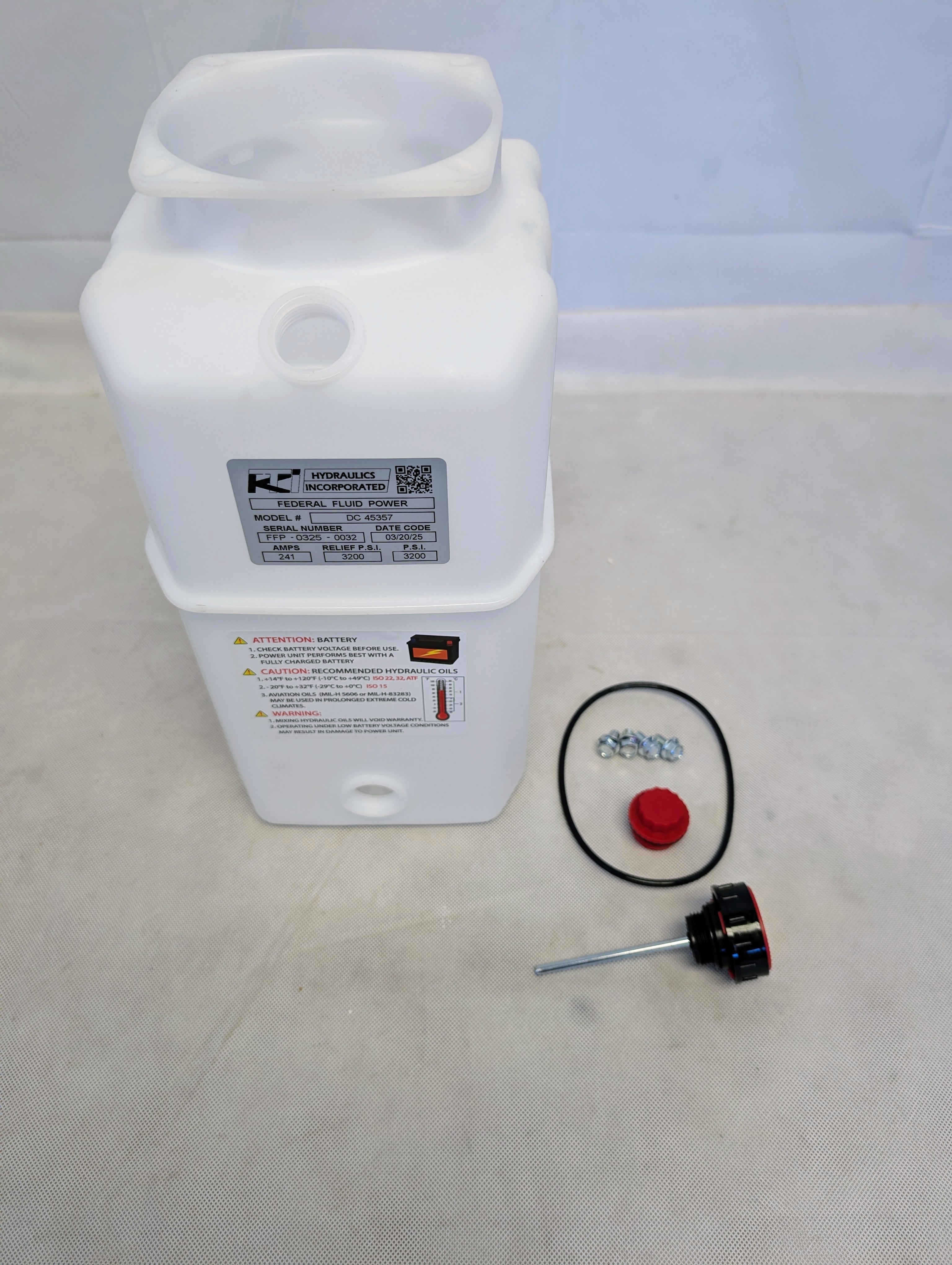

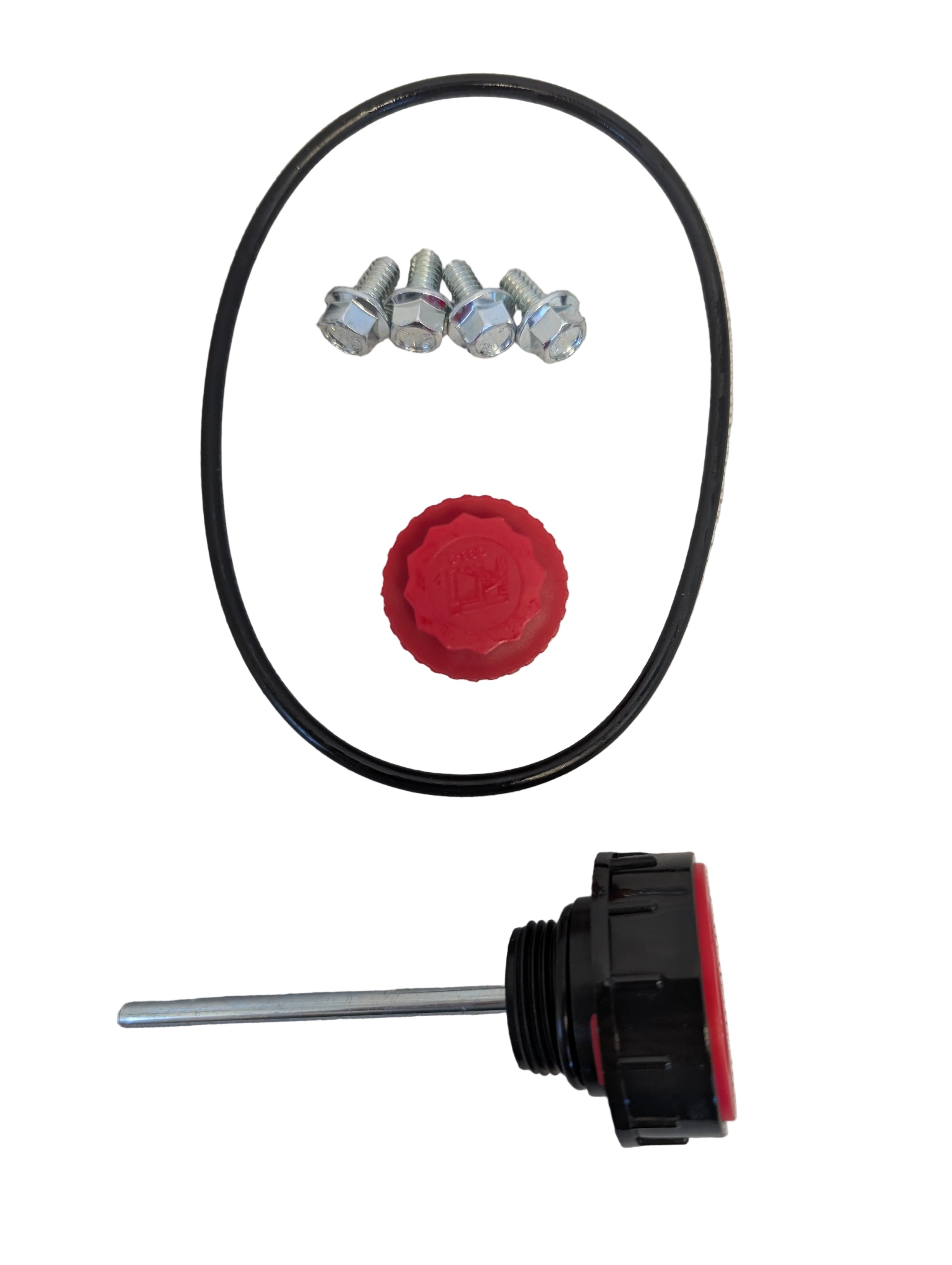

Includes:
-

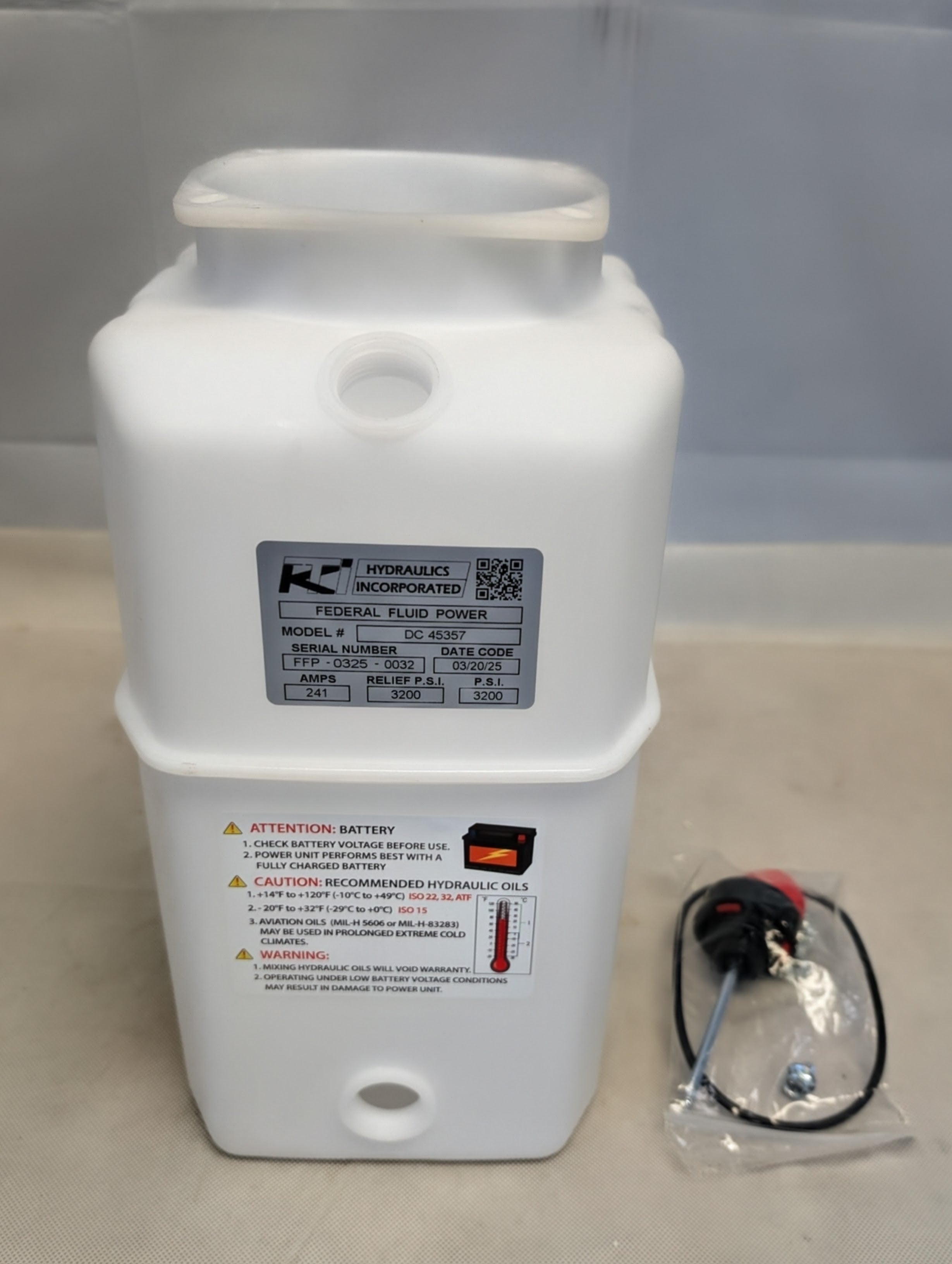

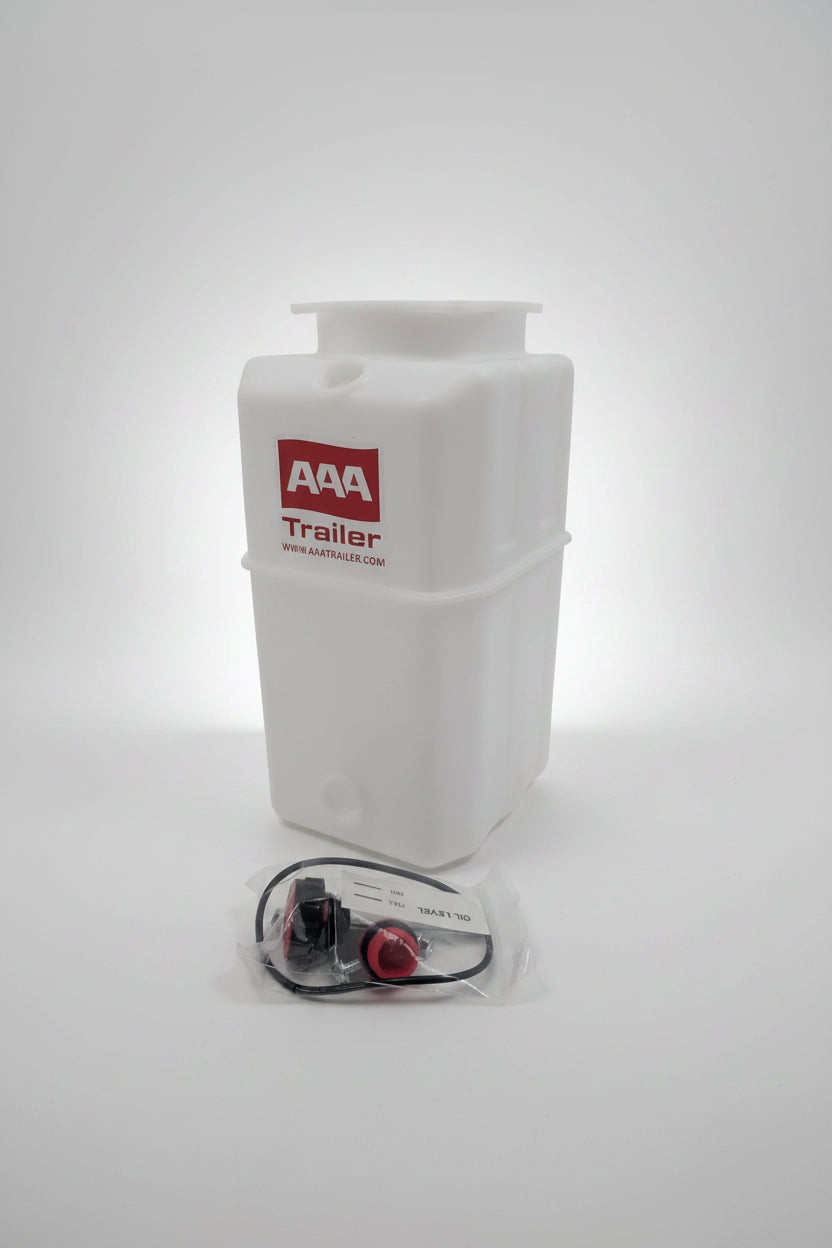

Poly hydraulic reservoir tank
-
O-ring gasket
-
Dipstick / breather cap
-
Reservoir plug
Increased Capacity
The 6 quart size offers additional fluid capacity for larger hydraulic systems.
Durable Translucent Construction
Semi-transparent design allows quick visual inspection of hydraulic fluid level without removing the cap.
Easy Installation
Designed with:
-
4-11/16” round opening
-
4” square bolt pattern
-
Dual 1” threaded ports
Direct fit for many KTI hydraulic power units.
🛠 Common Applications
This 6 quart hydraulic reservoir tank is frequently installed on:
-
Dump trailers
-
Equipment trailers
-
Hydraulic lift trailers
-
PJ dump trailer units
-
Big Tex dump trailers
If you're replacing a damaged reservoir, this is the correct high-capacity option.
🚛 In Stock & Ready to Ship
Order your KTI 8181-6 hydraulic reservoir tank kit today from AAA Trailer and restore reliable hydraulic performance.
📋 KTI Catalog Data
- Type: Complete Reservoir Tank Kit
- Capacity: 6 Quart plastic
- Includes: Tank, cap, breather, fittings, hardware
- Mounting: Horizontal or vertical
🏭 About KTI Hydraulics
KTI Hydraulics Inc. — founded 1997 in Tustin, California. ISO 9001:2015 Certified. Every KTI power unit is 100% factory inspected and tested to stringent specifications before shipping. Inventor of the patented Universal Manifold® system used in dump trailers worldwide.
📞 Call/Text: 517-225-1991 🌐 AAATrailer.com
🔄 Cross Reference / Alternate Part Numbers
KTI 8181-6-KIT | KTI-8181-6-KIT | 81816KIT | 6-quart reservoir kit with cap and plug
Related KTI Hydraulic Products
- KTI 25-3 Reservoir Cap
- KTI Q2-4113 Reservoir O-Ring Seal
- KTI 8181-35-K 3-Quart Reservoir Tank Kit
- KTI 8181-6 6-Quart Reservoir Tank (Tank Only)
Part number: KTI 8181-06K (previously listed as SKU 8181-6-KIT). Cross-reference: 8181-6-KIT, 8181 6 quart reservoir kit.
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI 8181-06K 6-Quart Hydraulic Reservoir Tank Kit with Hardware
Sale price
$0.00
Regular price
$79.00
SAVE $-79.00
Literature & Documentation

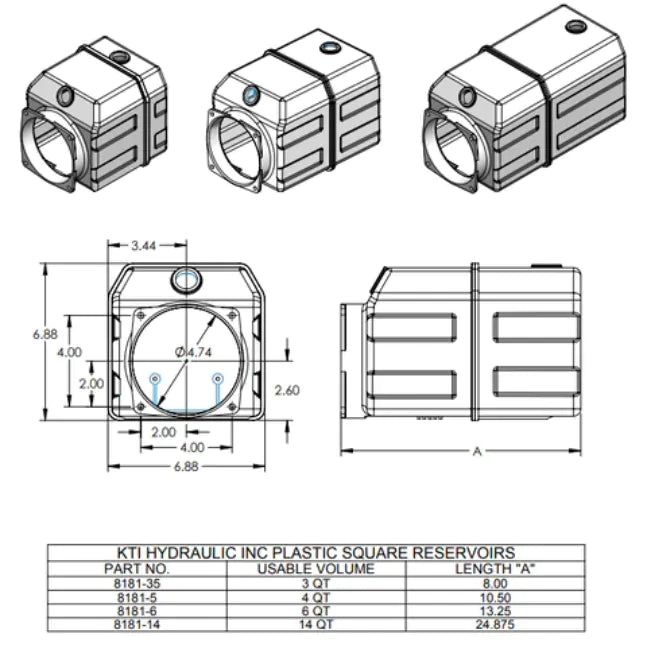

Specifications (from the KTI catalog)
| Usable volume (horizontal) | 6 QT |
| Tank length “A” | 13.25" |
| Material | Polyethylene (plastic square series) |
Fill to ~1" from the top with the unit at rest; the reservoir should sit about ½ full with the cylinder fully extended. Never let it drop below ½ while running.
Hydraulic fluid
KTI fluid recommendation: premium hydraulic oil with anti-wear, rust/oxidation and foam inhibitors — e.g. Chevron Rando HDZ, Mobil DTE 10/20 series, AMSOIL, Shell Tellus. Automotive ATF is acceptable under normal conditions. Do not use biodegradable hydraulic fluid, and do not mix oils.
| Ambient temperature | ISO viscosity grade |
|---|---|
| −20 °F to +32 °F | ISO 15 |
| +14 °F to +120 °F | ISO 22, 32, or ATF |
Purging air after install
Bleed cycle (purge air) in 3 steps:
- Remove the breather cap so you can watch the fluid level. Verify fluid connections are tight. Never let the level fall below half while running.
- Run the unit to extend the cylinder, keeping the level above half tank.
- At full extension, run 5–10 seconds more (bleeding over the relief valve), re-check level, retract, and repeat until operation is smooth.
Double-acting units: repeat for both power-up and power-down. If fluid foams, wait ~10 minutes before continuing. Recharge the battery afterward.
