6 Quart Reservoir – Power Up / Gravity Down

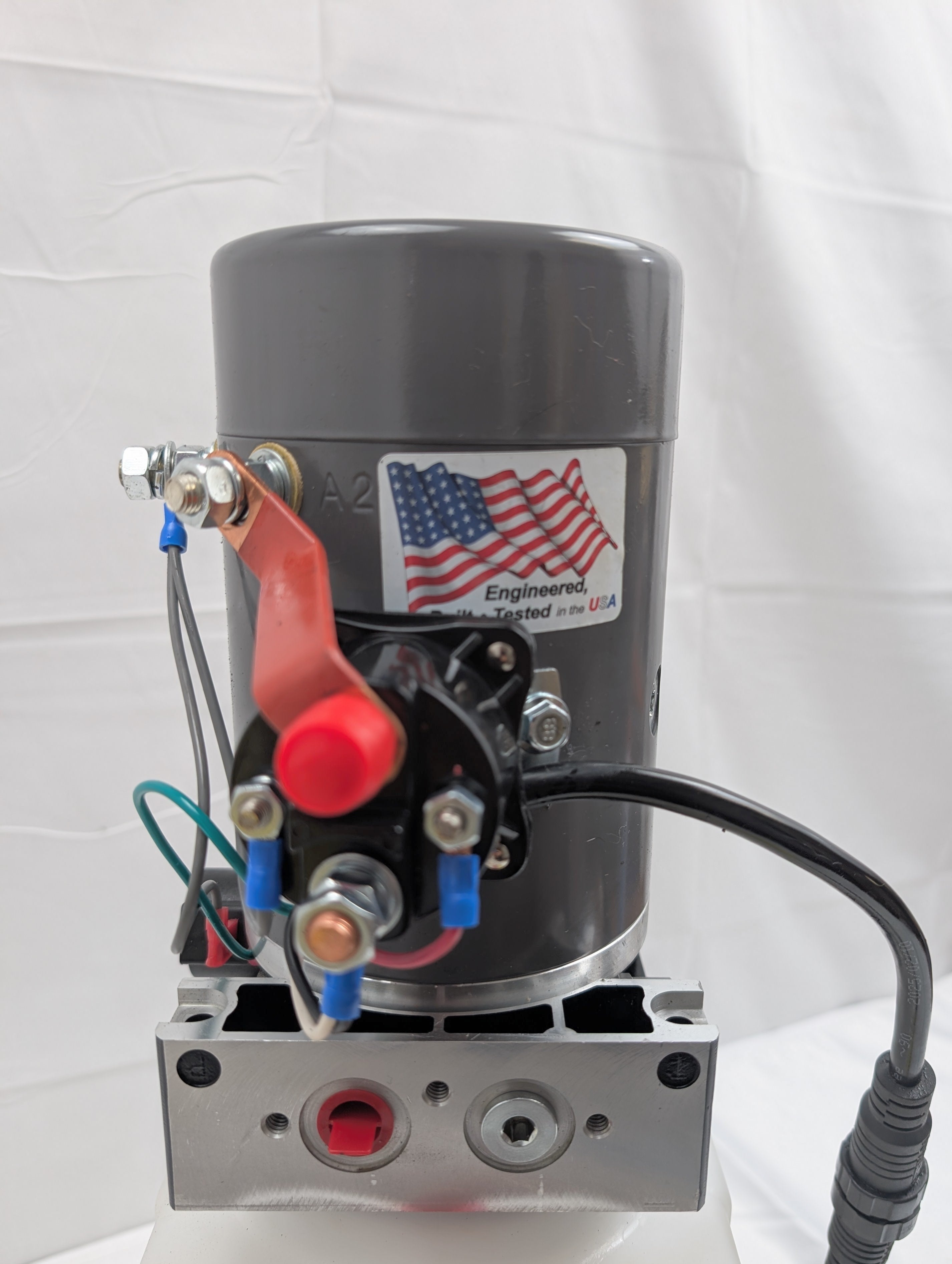

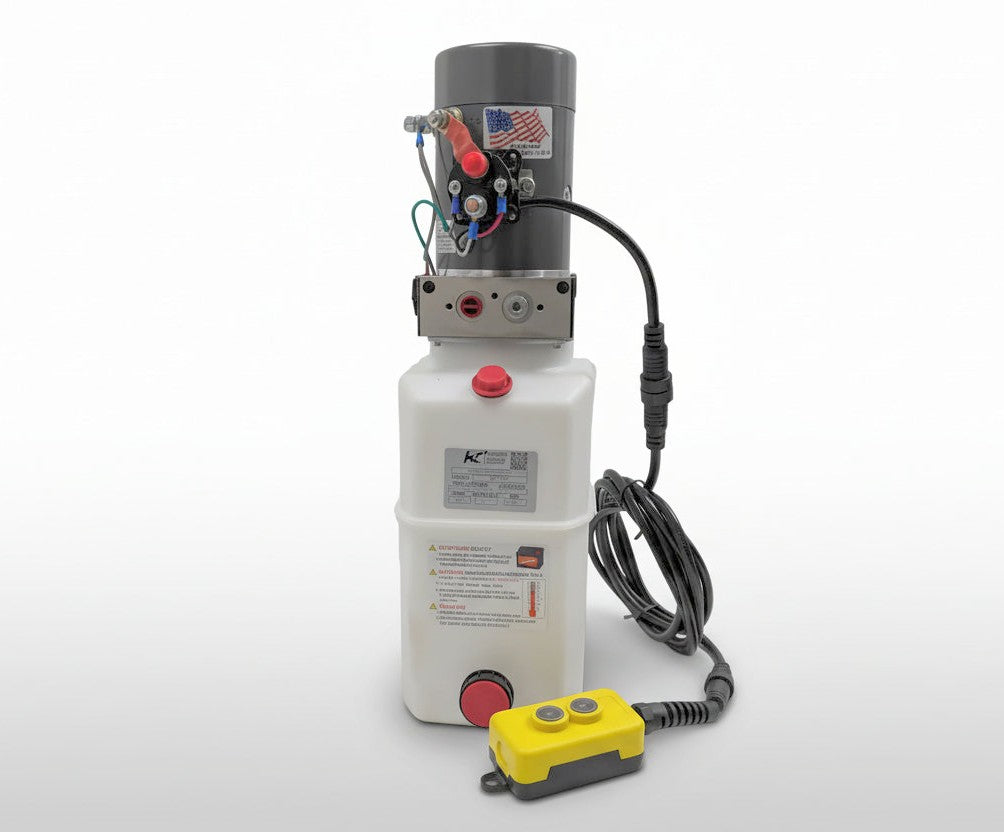

The KTI DC26 12V Single-Acting Hydraulic Power Unit delivers dependable lifting performance for dump trailers, hydraulic tilts, and dovetail systems.
Designed with a 6-quart fluid reservoir and pressure-compensated flow control, this compact hydraulic pump provides smooth, controlled lifting while allowing gravity-assisted lowering to reduce battery strain.
Ideal for trailer owners replacing worn-out power units or upgrading existing systems.
⚙️ System Type
✔ Single Acting Pump
✔ Power Up
✔ Gravity Down
✔ 12V DC Motor
This unit is designed for trailers that lift under hydraulic power and lower via gravity return.
📊 Technical Specifications
| Specification | Detail |
|---|---|
| Brand | KTI Hydraulics |
| Model | DC26 |
| Voltage | 12V DC |
| Pump Type | Single Acting |
| Operation | Power Up / Gravity Down |
| Reservoir Capacity | 6 Quart |
| Flow Control | Pressure Compensated |
| Control | 4-Button Remote w/ 15 ft Cord |
| Application | Dump, Tilt, Dovetail Trailers |
| Overall Length | Approx. 16.6" (3 Qt) / 21.8" (6 Qt) / 25.9" (8 Qt) / 33.5" (14 Qt) |
| Overall Width | Approx. 6.8" |
| Overall Height | Approx. 9.1" |
| Motor | 4.5" OD, 12V DC |
| Mounting | Horizontal mount — two 3/8"-16 bolts on 3.5" hole centers |
| Weight | Approx. 29–31 lbs (varies by reservoir) |
🔍 Key Features
✔ 6-Quart Reservoir
Provides adequate hydraulic fluid capacity for consistent lifting performance.
✔ Pressure Compensated Flow Control
Maintains steady lift speed and smooth operation under load.
✔ Compact Design
Fits a wide range of trailer installations without excessive space requirements.
✔ 4-Button Remote with 15’ Cord
Offers flexible control positioning during operation.
✔ Gravity Down Efficiency
Reduces electrical load during lowering to extend battery life.
✔ Commercial-Grade Construction
Built for demanding environments and daily use.
🛠 Verified Fitment & Applications
Commonly installed on trailers equipped with KTI single-acting hydraulic systems, including:
• PJ Trailers
• Load Trail
• Diamond C
• Lamar
• Griffin
• Iron Bull (single-acting setups)
• Sure-Trac (select models)
• Norstar dump beds
⚠ Always verify whether your trailer uses a single-acting (gravity down) system before ordering.
🚛 Ideal For
• Dump trailers
• Hydraulic tilt trailers
• Equipment transport trailers
• Hydraulic dovetail systems
• Light commercial applications
🔄 Replacement For
Often replaces:
• Older KTI single-acting pump assemblies
• Power up / gravity down hydraulic units
• Worn 6-quart dump trailer pumps
📦 What’s Included
• DC26 Hydraulic Power Unit
• 6-Quart Reservoir
• 4-Button Remote with 15’ Cable
KTI DC26
single acting hydraulic pump
power up gravity down pump
12V dump trailer pump
3 quart hydraulic power unit
dump trailer hydraulic replacement
Load Trail hydraulic pump
Diamond C hydraulic unit
PJ trailer hydraulic system
📋 KTI Catalog Data
- Motor: 12V DC, 4.5" OD, 1.6 kW
- Hydraulic Circuit: Single Acting (Power Up / Gravity Down)
- Manifold: Universal Manifold I
- Ports: SAE #6 ORB (9/16-18)
- Pump: Pressure Loaded Gear Pump (PL Series)
- Pressure: Up to 3,000 PSI
🏭 About KTI Hydraulics
KTI Hydraulics Inc. — founded 1997 in Tustin, California. ISO 9001:2015 Certified. Every KTI power unit is 100% factory inspected and tested to stringent specifications before shipping. Inventor of the patented Universal Manifold® system used in dump trailers worldwide.
📞 Call/Text: 517-225-1991 🌐 AAATrailer.com
🔍 Cross-Reference Model Numbers:
Also known as: DC-45597 (Primary Mover / Amazon), DC-4442 (Johnson Trailer Parts), KTI-12VDA6Q. Same KTI double-acting pump — different distributor model numbers.
Searching for DC-45597, DC-4442, or KTI-12VDA6Q? This is the same product.
📖 Guides for This Pump
📖 Installation Instructions
Mounting, hydraulic line connections, battery cable gauge sizing, electrical wiring, and the critical bleed cycle procedure for first-time use.
Related KTI Hydraulic Products
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI DC26-S / DC-45598 12V Single-Acting Dump Trailer Hydraulic Power Unit — 6-Quart Poly Reservoir with Remote
Sale price
$0.00
Regular price
$379.00
SAVE $-379.00
Literature & Documentation
Installation quick-reference (single-acting: power up / gravity down)
- Hydraulic fittings: 9/16-18 SAE ORB (SAE #6) into ports — torque to 18 ft-lbs.
- Mount with two 3/8-16 × 3/4" bolts; the flange must sit flush — don’t force alignment with the bolts.
- Battery terminal nuts: hold the bottom nut, torque the top nut to 3 ft-lbs.
- Fill the reservoir to ~1" from the top before first run; keep it above ½ during break-in.
Battery cable sizing (increase gauge as cable length grows — undersized cable = voltage drop, high amps, damaged components):
| Cable length | Wire gauge | Nominal OD |
|---|---|---|
| 1–2 ft | 4 ga | 0.43" |
| 3–4 ft | 2 ga | 0.49" |
| 5–7 ft | 1 ga | 0.56" |
| 8–9 ft | 1/0 ga | 0.61" |
| 10–12 ft | 2/0 ga | 0.66" |
| 13–15 ft | 3/0 ga | 0.72" |
| 16–19 ft | 4/0 ga | 0.78" |
Hydraulic fluid
KTI fluid recommendation: premium hydraulic oil with anti-wear, rust/oxidation and foam inhibitors — e.g. Chevron Rando HDZ, Mobil DTE 10/20 series, AMSOIL, Shell Tellus. Automotive ATF is acceptable under normal conditions. Do not use biodegradable hydraulic fluid, and do not mix oils.
| Ambient temperature | ISO viscosity grade |
|---|---|
| −20 °F to +32 °F | ISO 15 |
| +14 °F to +120 °F | ISO 22, 32, or ATF |
First-run bleed cycle
Bleed cycle (purge air) in 3 steps:
- Remove the breather cap so you can watch the fluid level. Verify fluid connections are tight. Never let the level fall below half while running.
- Run the unit to extend the cylinder, keeping the level above half tank.
- At full extension, run 5–10 seconds more (bleeding over the relief valve), re-check level, retract, and repeat until operation is smooth.
Double-acting units: repeat for both power-up and power-down. If fluid foams, wait ~10 minutes before continuing. Recharge the battery afterward.
