Upgrade your hydraulic trailer control with the KTI KWR‑006 Bluetooth Wireless Hydraulic Controller, a wireless control system designed for dual double-acting hydraulic circuits on dump trailers, equipment trailers, and hydraulic accessories.

The KWR-006 uses Bluetooth Low Energy technology and a 4-button key-fob remote to provide precise control of multiple hydraulic functions. This allows operators to run two separate double-acting hydraulic circuits, making it ideal for trailers or equipment with multiple hydraulic functions such as dump beds, hydraulic ramps, or attachments.

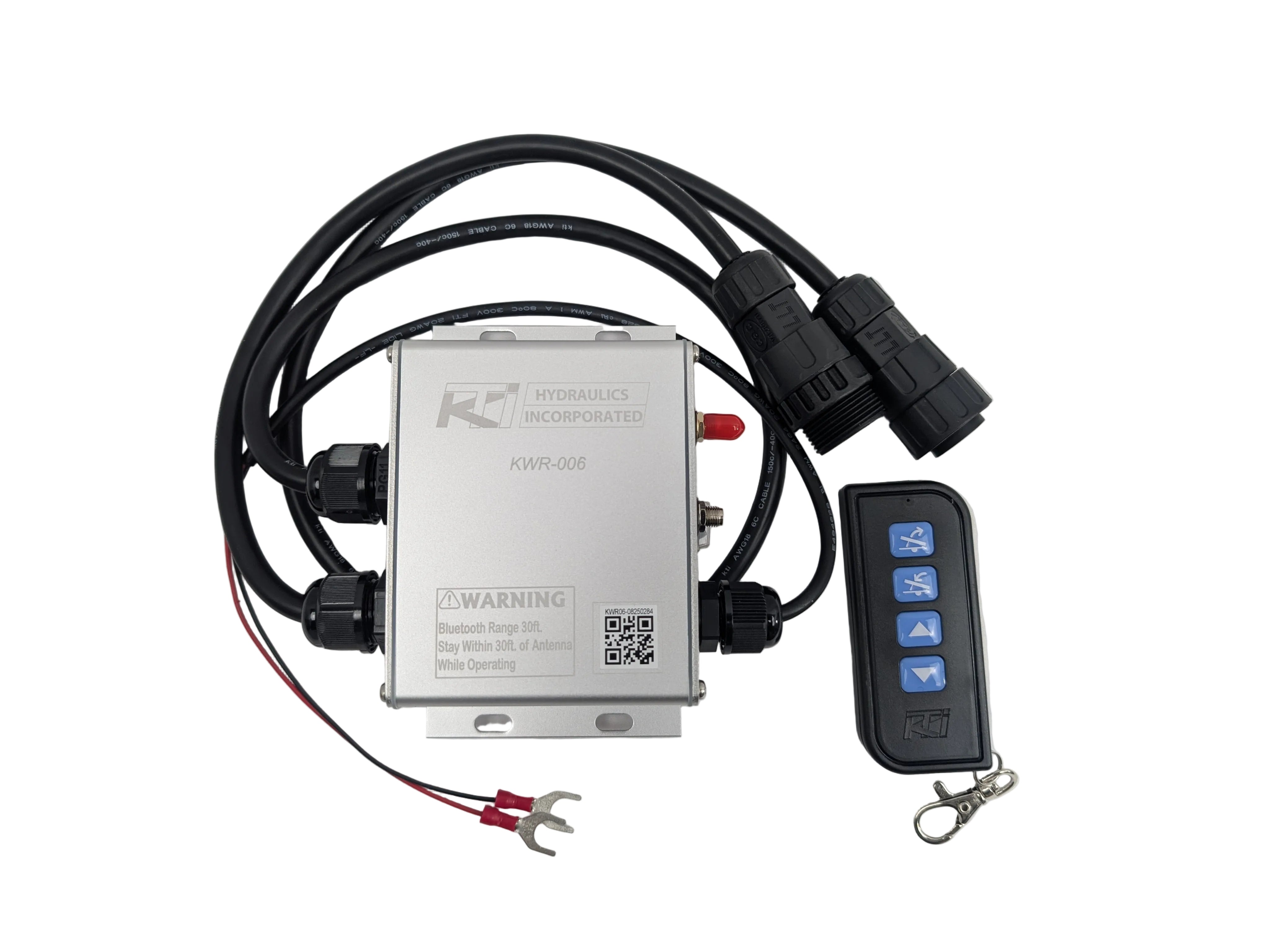

The controller system includes a Bluetooth receiver module and wireless key-fob remote, giving users flexible operation either from the included remote or through the KTI Bluetooth mobile app on compatible smartphones. The system provides a typical wireless range of up to about 30 feet, depending on installation location and environmental conditions.

A 6-pin connector ensures compatibility with KTI hydraulic power units, and the controller is designed specifically to work with KTI pumps and control systems.

This wireless controller is commonly installed on dump trailers manufactured by companies such as Load Trail, Diamond C, Lamar, and PJ Trailers equipped with KTI hydraulic systems.

Key Features

• 4-Button Wireless Remote – Controls two independent double-acting hydraulic circuits

• Bluetooth Control Capability – Can be operated via KTI smartphone app

• Dual Double-Acting Circuit Control – Ideal for complex hydraulic trailer setups

• 6-Pin Connector – Designed for compatible KTI hydraulic power units

• Wireless Range up to ~30 ft – Reliable control from a safe operating distance

• Sleep Mode Feature – Automatically powers down after inactivity to preserve battery life

• Compact Key-Fob Remote – Easy to carry and operate

Hydraulic Functions

The 4-button remote allows control of two separate circuits:

(Exact function depends on the hydraulic schematic of the connected power unit.)

Specifications

Typical Applications

The KWR-006 controller is commonly used on:

• Dump trailers with multiple hydraulic functions

• Hydraulic equipment trailers

• Trailers with hydraulic ramps or lift gates

• Hydraulic accessories requiring dual circuits

• Industrial hydraulic systems using KTI power units

Compatibility

Compatible with KTI hydraulic power units built after approximately 2015 equipped with KWR controller connectors.

Commonly found on trailers from:

• Load Trail

• Diamond C

• Lamar

• PJ Trailers

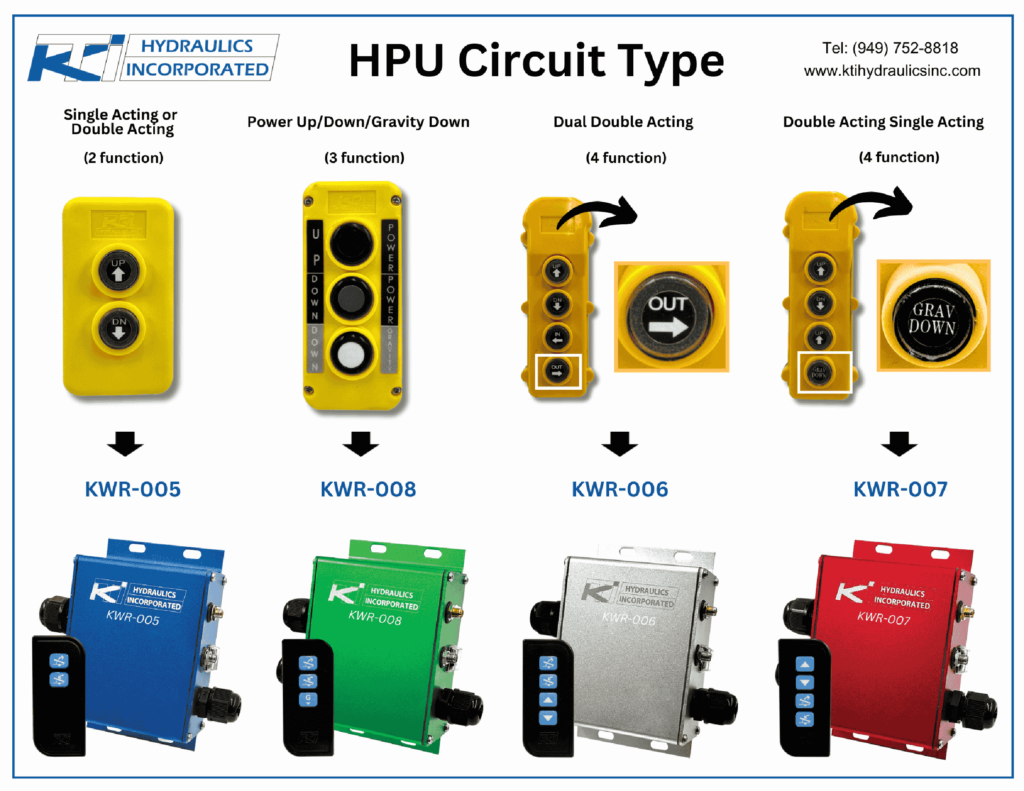

KTI Dump Trailer Remote Comparison Chart

KTI Hydraulics offers several wireless and wired remote systems designed to control hydraulic dump trailer pumps and other hydraulic accessories. Use the chart below to compare the most common KTI remote controllers and determine which one is compatible with your hydraulic power unit.

Common Hydraulic Functions Explained

Understanding your hydraulic system type ensures you select the correct controller for your dump trailer pump.

Typical Trailer Brands Using KTI Controllers

These remote systems are commonly installed on trailers manufactured by:

• Load Trail

• Diamond C

• Lamar

• PJ Trailers

• Big Tex

Most modern dump trailers equipped with KTI hydraulic power units support one of these remote controller systems.

Need Help Choosing the Right Remote?

If you're unsure which controller your trailer requires, check:

1. Hydraulic pump brand label

2. Connector type on the pump

3. Number of hydraulic functions your trailer uses

You can also contact AAA Trailer for assistance selecting the correct hydraulic controller.

📍 Howell, Michigan
📞 517-225-1991
🌐 AAATrailer.com

📖 Guides for the KWR-006

• → Which KWR Controller Do I Need?
• → How to Pair a Replacement Key Fob
• → Identify Your Pump by Remote Type

📖 Installation & App Setup Guide

Step-by-step installation instructions, Bluetooth app download links, key fob pairing procedure, and model-specific wiring notes for all KWR units.

View Full KWR Installation Guide →
