KTI KWR-007 Bluetooth Wireless Hydraulic Controller — 6-Pin, 4-Function, Double-Acting AND Single-Acting Compatible

The KTI KWR-007 is the most advanced wireless hydraulic controller in KTI's KWR remote series. If you've been running a KWR-005 or older KWR-003 and you need more functionality — this is the upgrade.

Unlike the KWR-005 (2-function, double-acting only) and the KWR-008 (3-button, double-acting only), the KWR-007 handles 4 functions across BOTH double-acting AND single-acting (gravity-down) hydraulic circuits — all through one controller with a 6-pin connector. It's the right remote for newer KTI power units using circuit 215, and the only wireless option if your pump is a gravity-down design.

🎯 Why Choose the KWR-007?

• Works with BOTH pump types — power-up/power-down AND power-up/gravity-down
• 4-function control — full up/down with both circuit options
• 6-pin connector — matches newer KTI power units (circuit 215)
• Bluetooth paired to key fob OR smartphone app (iOS / Android)
• Live battery voltage readout through the KTI app — monitor your trailer battery from your phone
• Up to 4 key fobs can pair to one receiver — perfect for fleets or multi-operator crews
• Auto-sleep after 5 minutes idle — won't drain battery when parked
• Built-in safety shutoff after inactivity
• ~30-40 ft range depending on antenna placement and obstructions

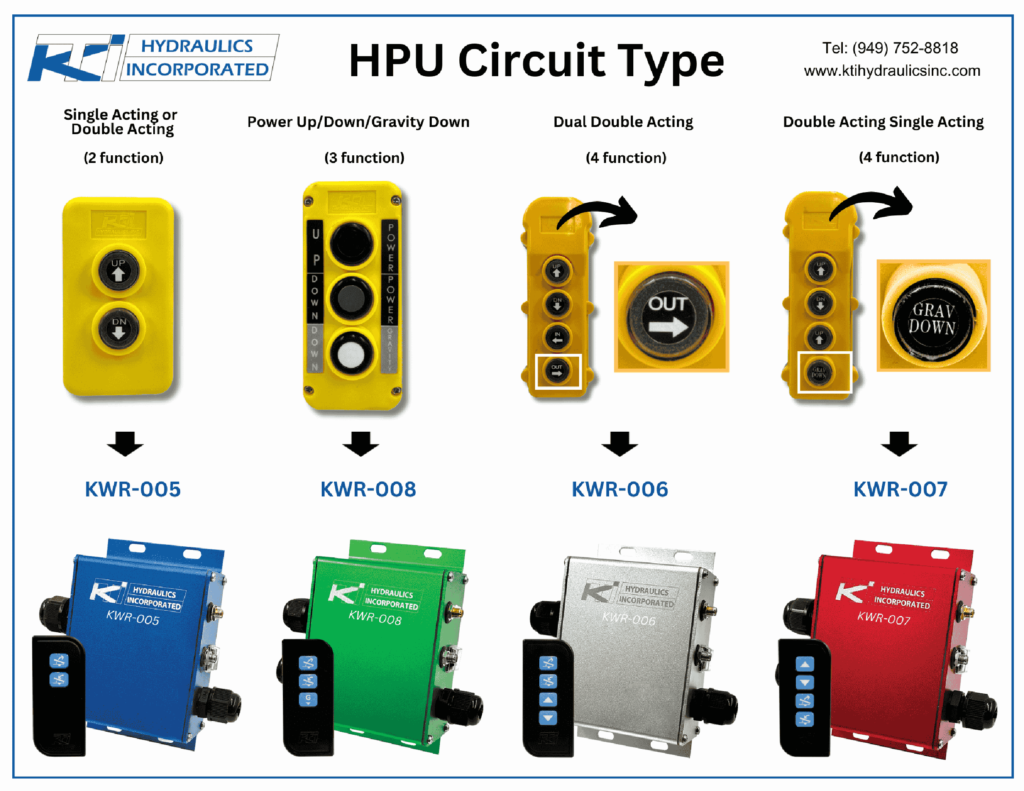

🔄 KWR-005 vs KWR-007 — Which Do You Need?

Rule of thumb: If your trailer was built within the last few years and uses a 6-pin pump harness, the KWR-007 is the correct remote. If your pump is older with a 4-pin connector and power-up/power-down only, the KWR-005 is the more economical match. When in doubt, call us at 517-225-1991 with your pump model number and we'll confirm before you order.

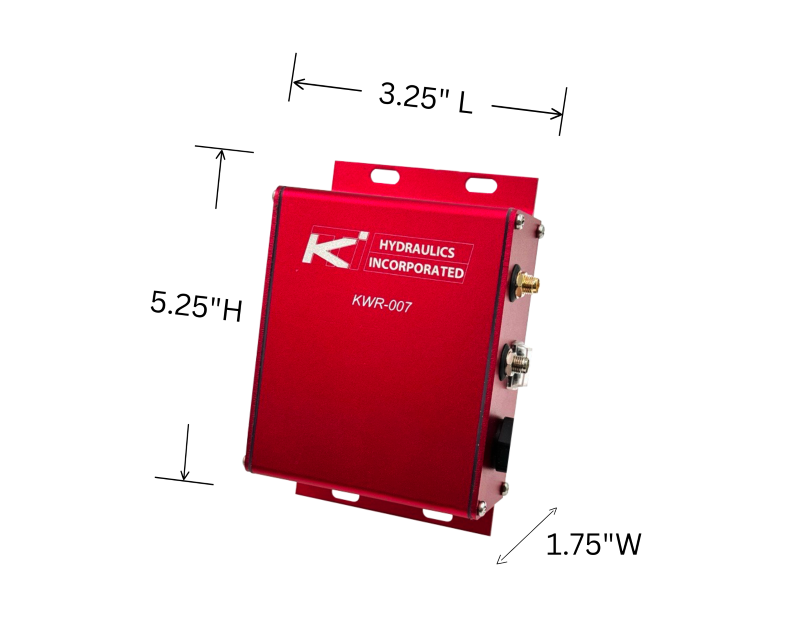

📐 Specifications

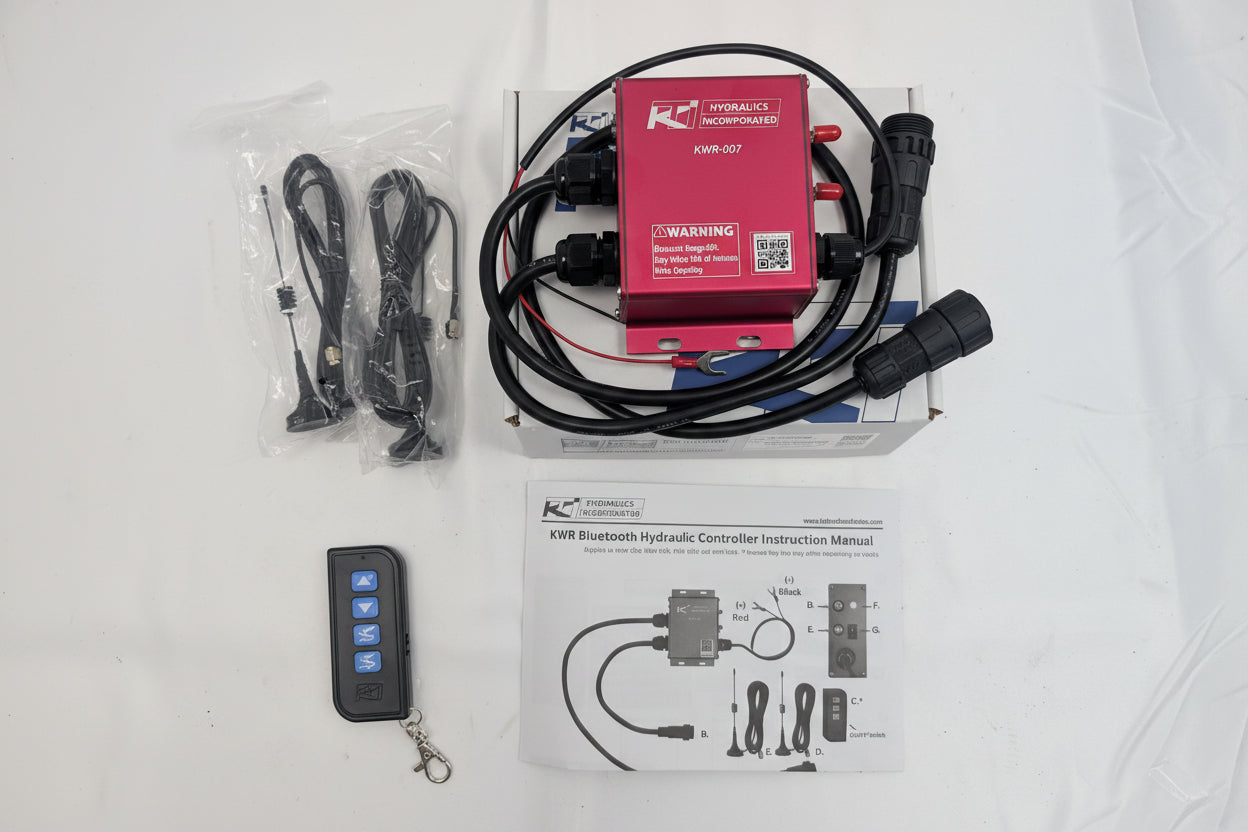

📦 What's Included

• (1) KWR-007 receiver unit with integrated Bluetooth + RF antennas
• (1) Wireless key fob remote
• (1) Detachable antenna
• Power / ground wiring with 15A inline fuse
• Pre-terminated connectors for KTI 6-pin pump harness
• Installation manual (or scan the QR code for digital version)

✅ Compatible Hydraulic Power Units

• Newer KTI double-acting power units with 6-pin harness and circuit 215
• Newer KTI single-acting / power-up gravity-down units with 6-pin harness
• Dump trailers from most major brands (Load Trail, Big Tex, PJ Trailer, Griffin, Diamond C, Cargo Mate, Sure-Trac) equipped with recent-generation KTI pumps using the 6-pin connector

Not sure if you have a 4-pin or 6-pin pump? Look at the harness plug coming out of the top of your KTI pump — count the pins. Or send us a photo via text to 517-225-1991 and we'll identify it.

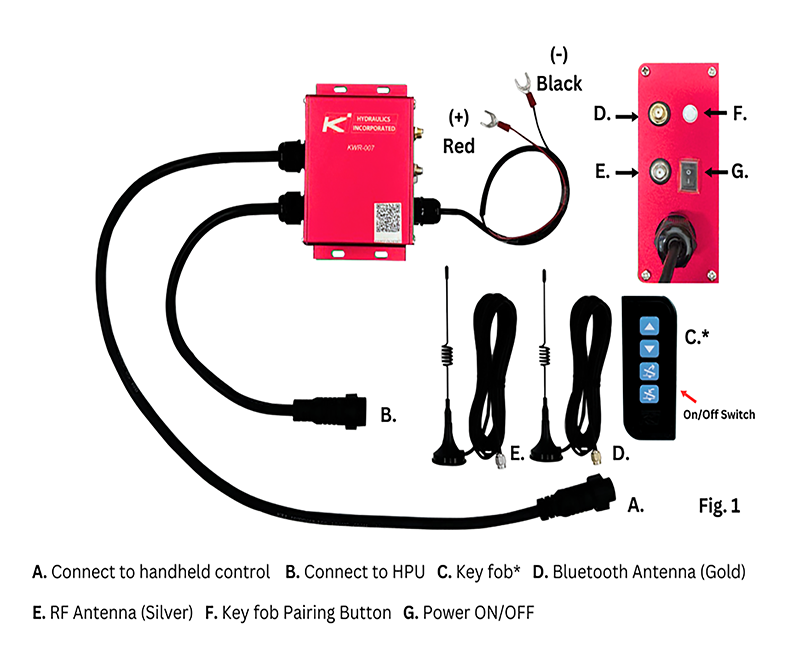

💡 Pro Tips — Installation & Pairing

• Mount the receiver in a sealed enclosure, away from the pump motor and heat. Mount the antenna OUTSIDE the enclosure, as high as possible for best range.
• Power connections: Red (+) to battery positive via the included 15A fuse; Black (-) to battery negative. Ground the power unit directly to the negative battery terminal.
• Bluetooth pairing passcode: 123456 (no quotes)
• Download the KTI Bluetooth app (free on iOS App Store or Google Play) to pair, monitor battery voltage, and configure the system.
• App permissions required: Bluetooth, Location, Camera (used to scan the QR code on the KWR unit for quick pairing).
• Test function first with the handheld pendant before operating via wireless remote to ensure the pump and electrical circuit are healthy. Then move to wireless.

❓ FAQ

I have a 4-pin pump. Can I still use the KWR-007?
Generally no — the KWR-007 is designed for the newer 6-pin connector. If your pump is 4-pin, either the KWR-005 (2-function) or KWR-008 (3-button) is the correct choice. Call 517-225-1991 and we'll help you pick.

Does this replace the corded/wired remote (395-55)?
It can, but most installations keep both — the corded pendant as a reliable backup if the wireless loses signal or the battery dies. Adding wireless doesn't remove the wired connection.

How many controllers can I pair?
Up to 4 key fobs plus phone app access — ideal for crews, multi-operator setups, or keeping a spare fob in the truck.

What's the battery life on the key fob?
The fob uses a standard 23AE 12V battery. Expected life is 1+ years under normal use. The app and fob both show battery warnings when power is low.

Range seems short — what helps?
Mount the antenna OUTSIDE any metal enclosure, as high as possible. Metal boxes significantly reduce range. A proper antenna location typically delivers the full 30-40 ft.

Can I buy just the key fob replacement?
Replacement fobs are available for the KWR series. Call or text 517-225-1991 if you need a spare or replacement fob.

Questions? Call or text AAA Trailer at 517-225-1991 — we'll identify your pump's connector type and recommend the right KWR model before you buy. Same-day shipping from Howell, Michigan.
