OEM-Quality Valve Actuator for Hydraulic Dump Trailer Systems

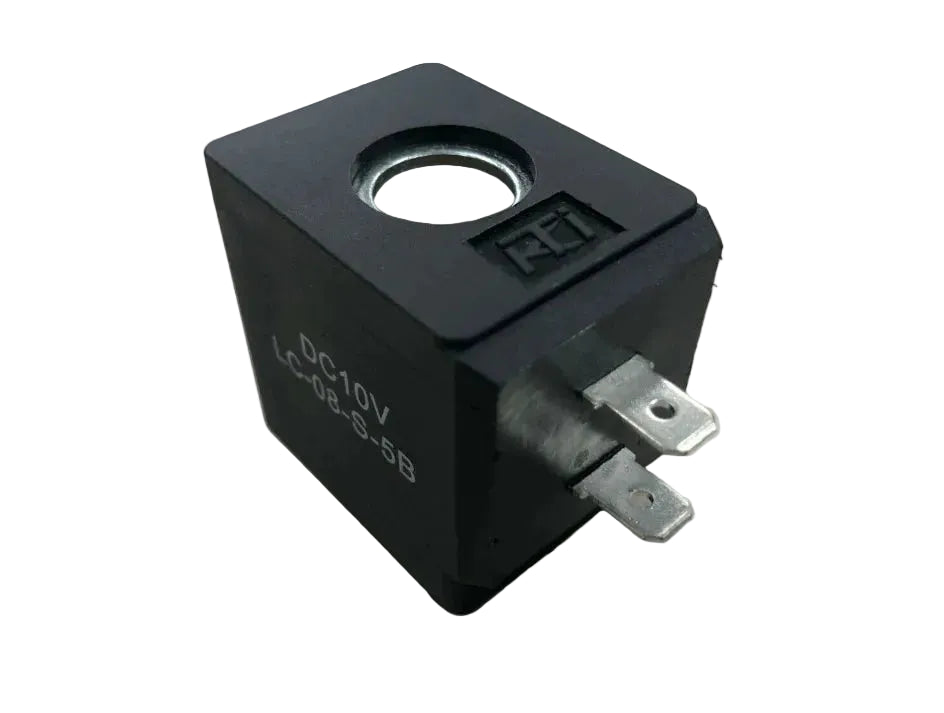

The KTI LC-08-S-5B 10-volt DC hydraulic solenoid coil is a precision-engineered electrical magnet actuator designed to control directional and release valves in double-acting hydraulic systems. Built for reliable “down” valve operation on both power up/down and gravity-down trailer pump assemblies, this solenoid coil delivers consistent performance for demanding dump trailer applications.
Trusted as an OEM replacement by major trailer manufacturers including Load Trail, Diamond C, Lamar, and PJ Trailers, the LC-08-S-5B is built to meet real-world worksite demands.
📊 Technical Specifications
| Specification | Detail |
|---|---|
| Brand | KTI Hydraulics |
| Part Number | LC-08-S-5B |
| Voltage | 10V DC |
| Terminals | Dual Spade (¼″) |
| Coil Design | Square coil body |
| Function | Hydraulic down-valve activation |
| System Type | Double-acting hydraulic |
| OEM Compatibility | Load Trail, PJ, Diamond C, Lamar, Griffin |
| Mount | Direct valve mount |
| Uses | Dump trailer hydraulic systems |
🔍 Key Features
🔌 10V DC Coil
Engineered to operate in standard 12-volt trailer electrical systems with stable, low-voltage performance.
🔄 Dual Spade Terminals
Easy wiring with two ¼″ spade connectors for reliable power and ground connections.
🛠 Easy Replacement
Slides directly over compatible hydraulic valve body — no complicated adapters required.
🔩 Durable Construction
Robust materials to withstand vibration and frequent actuation.
🎯 OEM Choice
Used by premium trailer manufacturers who specify genuine KTI components for hydraulic control.
🧰 Common Applications
This solenoid coil is commonly installed in:
-
Power up / power down hydraulic assemblies
-
Gravity-down hydraulic systems
-
Dump trailers
-
Commercial trailer hydraulic units
-
OEM-specified replacement installs
Whether you’re repairing a worn or burnt-out coil or upgrading an older pump, this KTI unit restores dependable hydraulic valve control.
🚛 In Stock & Ready to Ship
Order the KTI LC-08-S-5B 10V DC hydraulic solenoid coil from AAA Trailer — backed by fast fulfillment and competitive pricing.
📋 KTI Catalog Data
- Type: Square Coil Actuator
- Voltage: 10V DC
- Connector: Dual Spade terminals
- Function: Cartridge valve actuation in KTI manifolds
🏭 About KTI Hydraulics
KTI Hydraulics Inc. — founded 1997 in Tustin, California. ISO 9001:2015 Certified. Every KTI power unit is 100% factory inspected and tested to stringent specifications before shipping. Inventor of the patented Universal Manifold® system used in dump trailers worldwide.
📞 Call/Text: 517-225-1991 🌐 AAATrailer.com
Related KTI Hydraulic Products
What sets us apart is our dedicated team of knowledgeable professionals who are always ready to assist. Great customer service isn't just a promise—it's the foundation of our success. We invite you to visit our showroom or reach out for personalized advice. Whether you're purchasing online or stopping by, we're here to make your trailer journey seamless. Visit Us Today
- Address: 4675 East Grand River Ave, Howell, MI 48843
- Phone: (517) 225-1991 (Call or text)
- Hours: Monday to Friday: 10:00 AM - 5:30 PM | Saturday: By appointment
Thank you for considering AAA Trailer. We're excited to help you hit the road with confidence! If you have any questions, don't hesitate to contact us.
To deliver your favorite products, we have partnered with the UPS & FEDEX . We are ready to entrust them with your orders and are always on your side if something goes wrong.
We will be happy to assist you with eligible returns, the return instructions, and the shipping address. If you need a return or exchange, send us an email so we can discuss a replacement.
KTI Hydraulics LC-08-S-5B 10v DC Square Coil Actuator, Dual Spade for Dump Trailers
Sale price
$0.00
Regular price
$29.50
SAVE $-29.50
Literature & Documentation
Diagnosis & installation
If the circuit isn’t responding, verify the coil energizes (magnetic pull at the stem) when the remote button is pressed — a non-energizing coil is a common failure mode in the KTI troubleshooting matrix.
- Check the manifold cavity for burrs/shavings before installing.
- Lubricate every O-ring and back-up ring with hydraulic fluid — never grease, motor oil, or WD-40 (additive incompatibility causes valve failure).
- Directional valve LSV2-08-4CO: 7/8" deep socket. Load-holding valve LSPC-080-4-00: 15/16" deep socket.
- Hand-tighten, then torque the cartridge to 18 ft-lbs maximum — over-torquing damages the assembly.
- Safety: disconnect the remote pendant first; never work on a hot or pressurized system.
