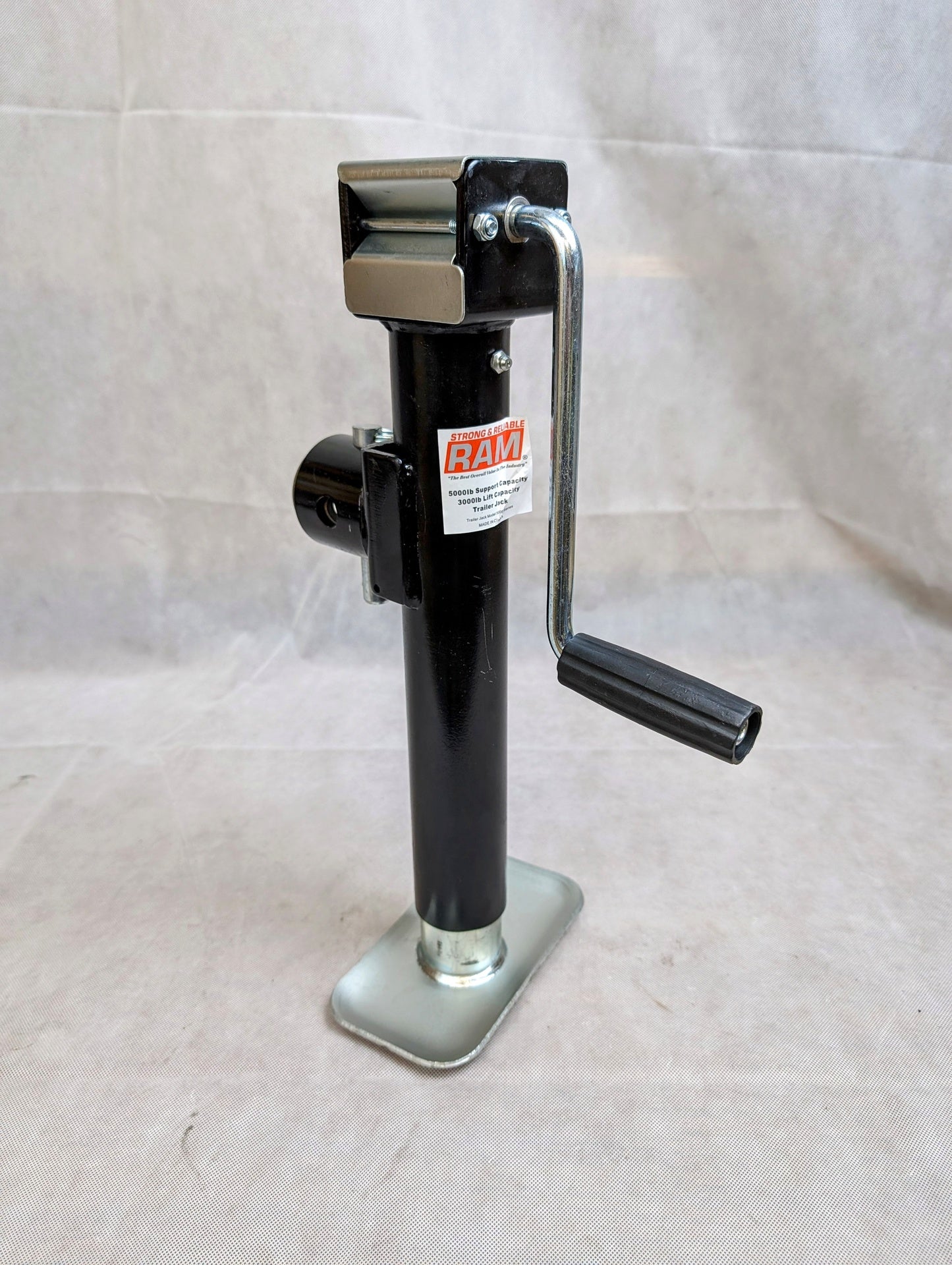

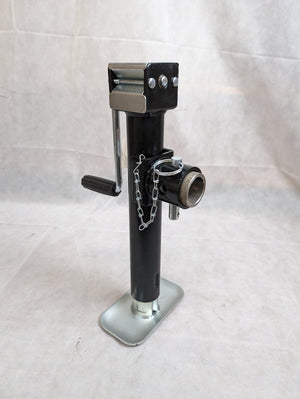

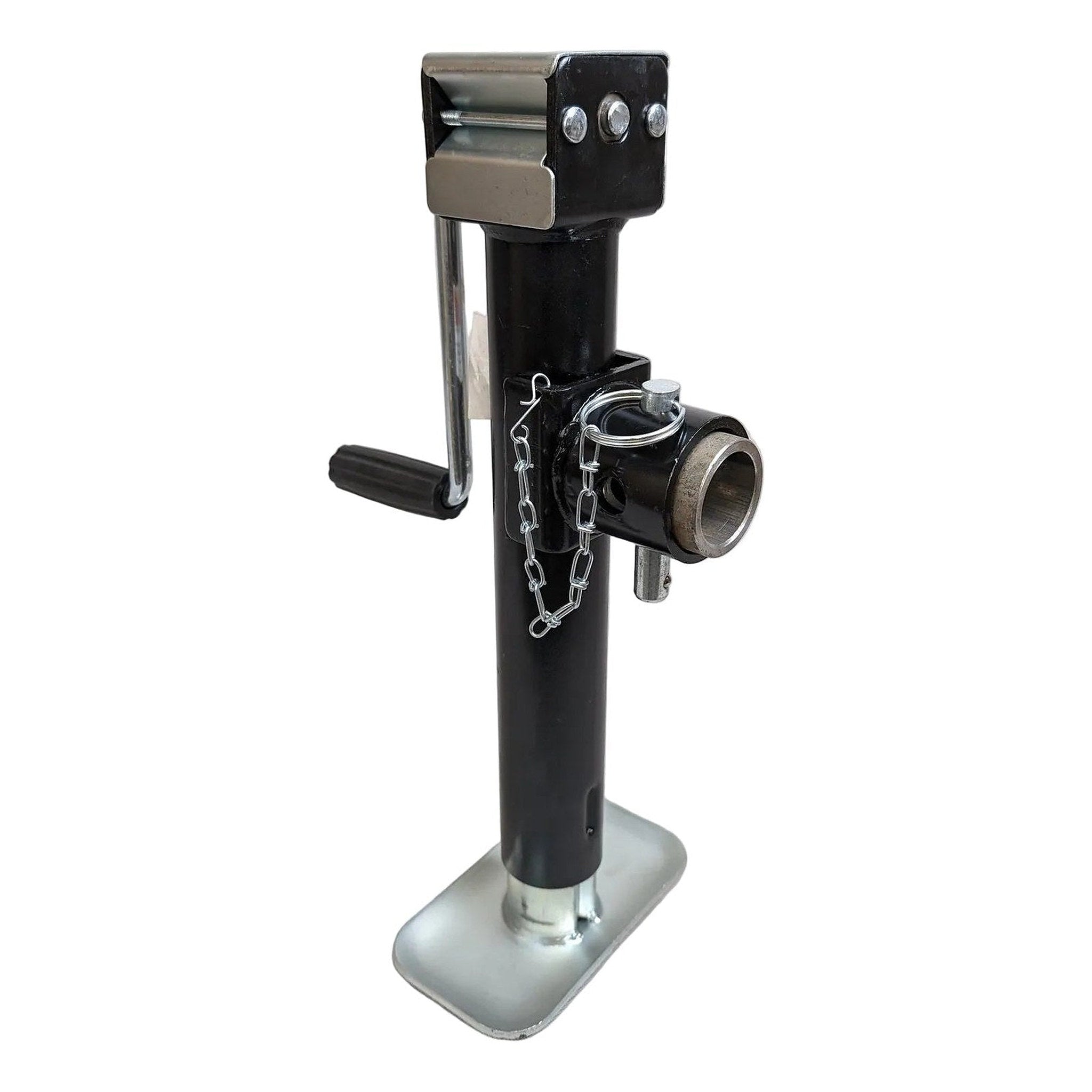

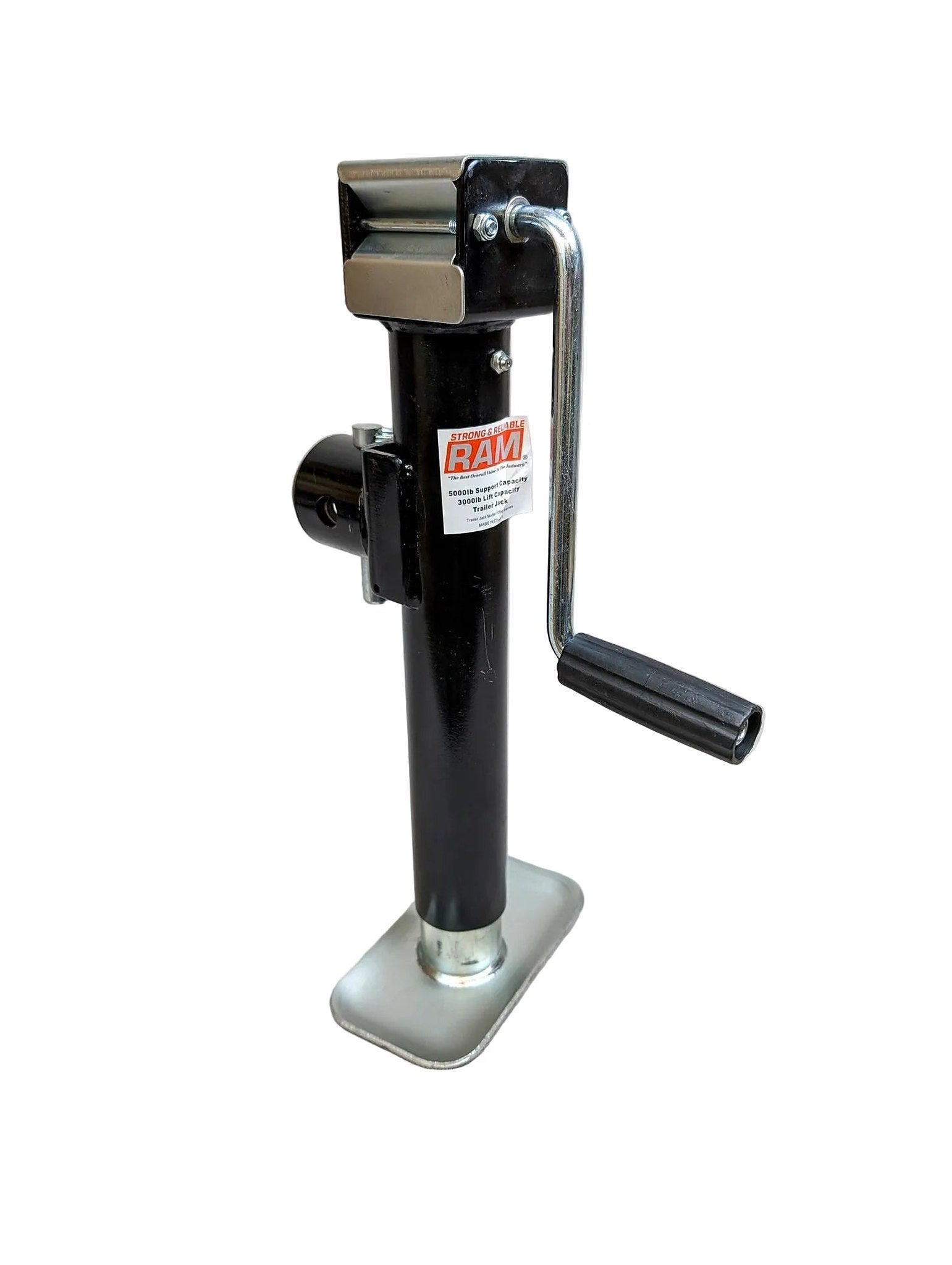

⚓ RAM TJP-4502 — 5,000 lb Sidewind Pipe Mount Swivel Jack | 10" Lift | Weld-On

The RAM TJP-4502 is a heavy-duty tubular swivel tongue jack built for ag, industrial, commercial, and utility trailers that demand serious support. With a 5,000 lb static support capacity and 3,000 lb lift capacity, this jack handles the heavy tongue weights that standard A-frame jacks can't touch. The pipe mount design welds directly to your trailer's frame — no bolt holes, no brackets to strip. When you're done hitching, the entire jack swivels up and locks with a 5/8" pull pin, completely clearing the ground for travel.

⚙️ Key Features

• 5,000 lb Static Support Capacity — Safely holds heavy trailer tongue weight when parked
• 3,000 lb Lift Capacity — Raises and lowers loaded heavy-duty trailers with ease
• 10" Travel — Sufficient lift range for most trailer frame heights
• Sidewind (Side Crank) Operation — Side handle design for easy operation alongside the trailer frame
• Weld-On Pipe Mount — 2" raw male mating pipe included; welds directly to trailer tongue or frame for maximum strength
• Swivel Design — Pivots up and locks out of the way during travel; no ground clearance issues
• 5/8" Pin & Lanyard Assembly — Keeps swivel pin attached and ready; never loses the pin
• Pressed-In Grease Zerk — Easy field greasing extends jack life and keeps operation smooth
• Black Powder Coat Outer Tube — Durable exterior finish resists rust, chipping, and road grime
• Zinc Finish Inner Tube — Corrosion-resistant inner tube slides smoothly through the outer
• Welded Zinc Sand Foot — 3-3/4" x 7-1/2" foot plate distributes load on dirt, gravel, and uneven surfaces

📐 Specifications

• Brand: RAM Trailer Products
• MPN: TJP-4502
• Also Known As: TJP4502, 4502
• Static Support Capacity: 5,000 lbs
• Lift Capacity: 3,000 lbs
• Travel (Lift): 10"
• Retracted Overall Height: 17-1/2"
• Extended Overall Height: 28-1/2"
• Ground Clearance (swiveled up): 6-1/4"
• Foot Plate: 3-3/4" x 7-1/2" welded zinc sand foot
• Mounting Pipe: 2" raw round male mating pipe (included)
• Pin Diameter: 5/8"
• Wind Direction: Sidewind (side crank)
• Mount Type: Weld-on pipe mount
• Outer Tube Finish: Black powder coat
• Inner Tube Finish: Clear zinc

🔧 Installation & Application Notes

• Weld the included 2" mating pipe to the side of the trailer tongue or frame — position so the jack hangs vertically when deployed
• Ideal for ag trailers, gooseneck trailers, equipment trailers, flatbeds, commercial utility trailers, and dump trailers
• Swivel the jack up and insert the 5/8" pull pin to lock in the travel position before moving the trailer
• Grease the zerk fitting periodically to maintain smooth operation and extend jack life
• Match jack capacity to your trailer's tongue weight — typically 10–15% of loaded GVWR
• Need more travel? See the RAM TJP-4515 (15-1/2" lift) or TJP-5215 (15" lift, 5,000 lb topwind) for added reach

🔁 Cross-Reference / Related Part Numbers

• RAM TJP-4502 | TJP4502 | 4502
• Similar to: CURT 28354 | TruRyde TR-JTWT5K-10 (topwind version)
• Need 15" lift sidewind? See RAM TJP-4515
• Need topwind 10" lift? See RAM TJP-5001-B
