• A-Frame Jack
• Electric Jack
• 3500 lbs
• 25-1/8 Inch Lift
• Bolt-On
• 1 Jack
• 2 1/4 Inch
• Model: EJ3500B

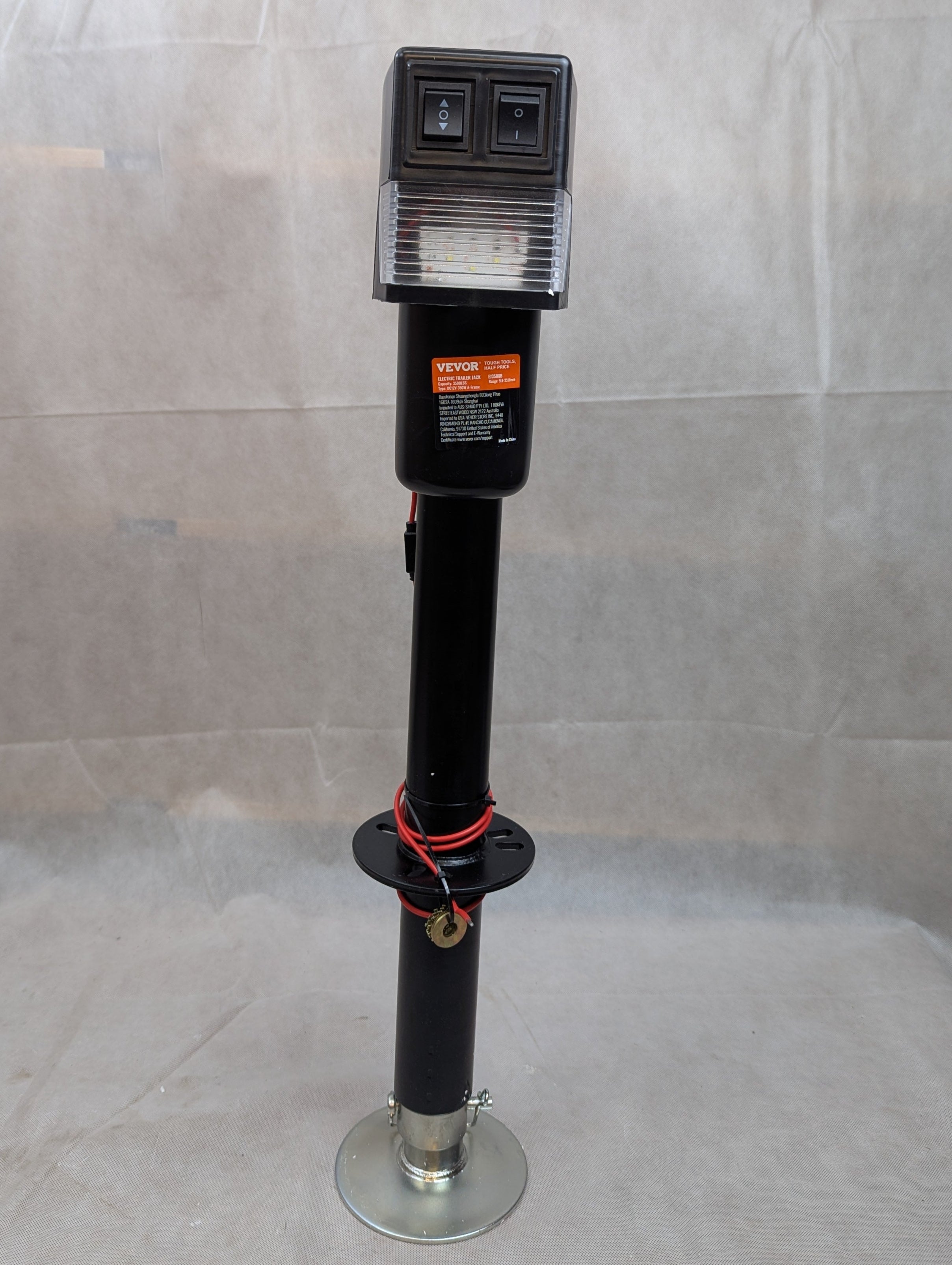

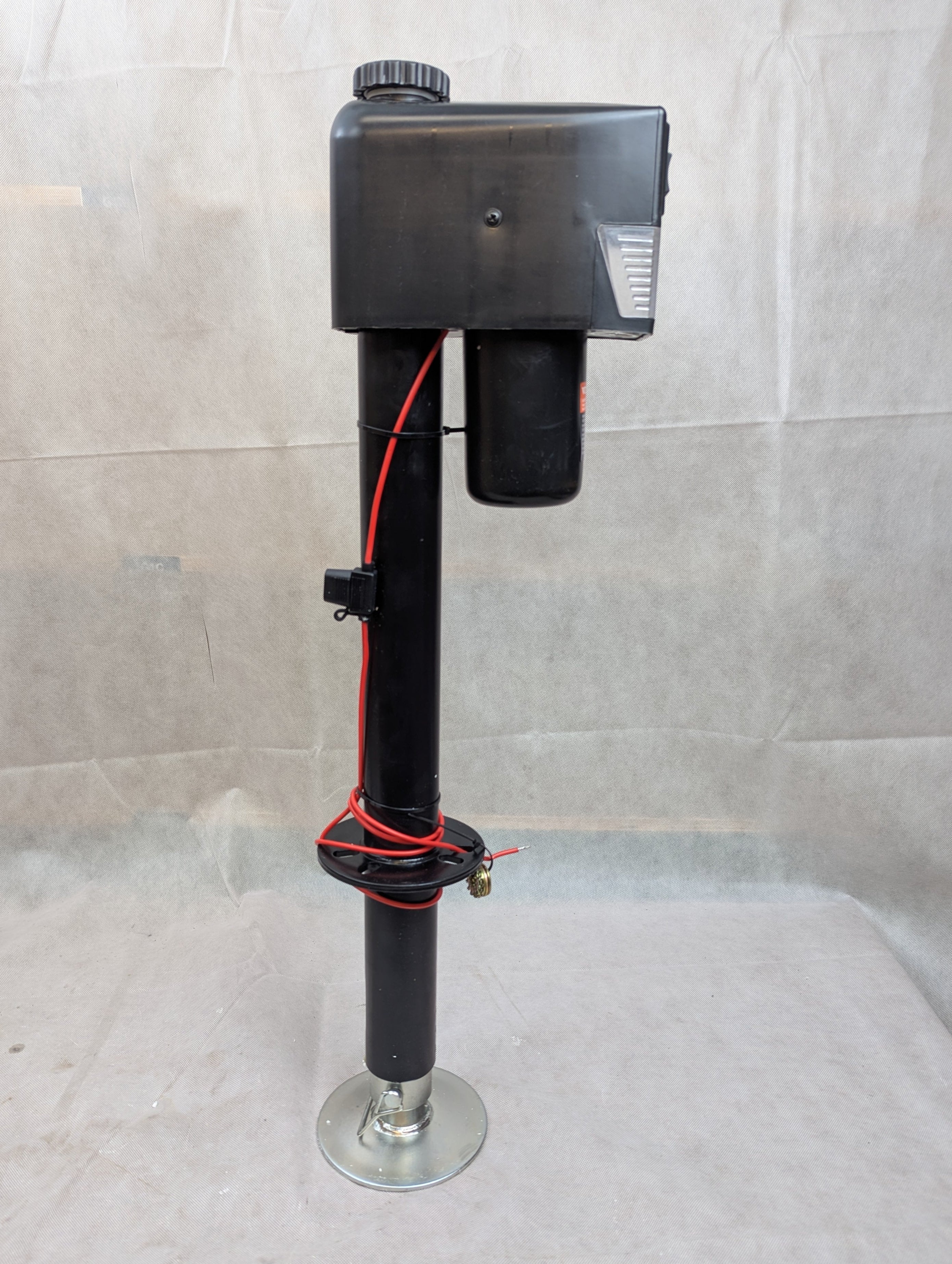

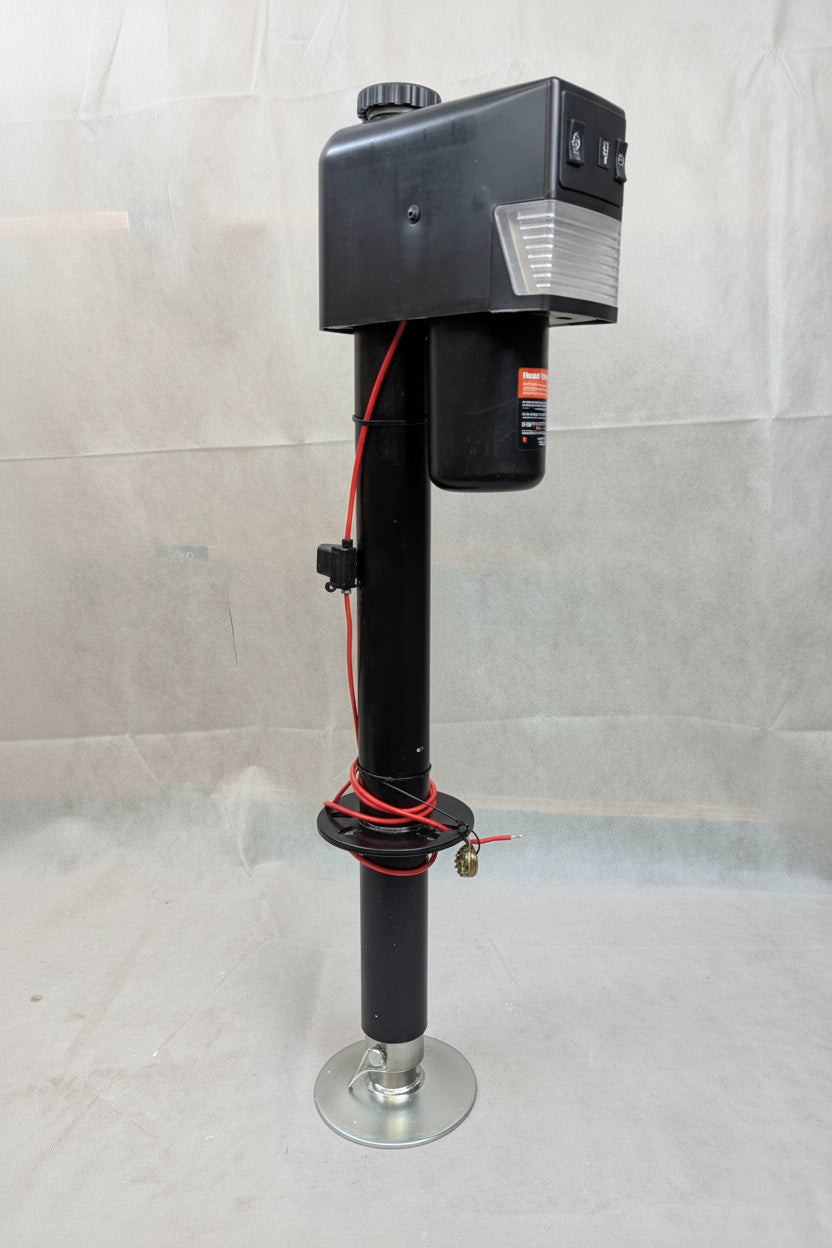

Electric A-frame jack has 2 toggle switches for operation. Jack has a retracted height of 9", an extended height of 28-1/2", and 19-1/2" of travel. Drop leg offers an extra 5-5/8" of lift. Includes a manual override handle.

Features:

• Electric jack lets you raise and lower your A-frame trailer
• Drop leg allows for increased lift and saves time when raising or lowering
• Pin and clip holds leg at desired location

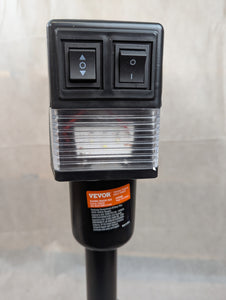

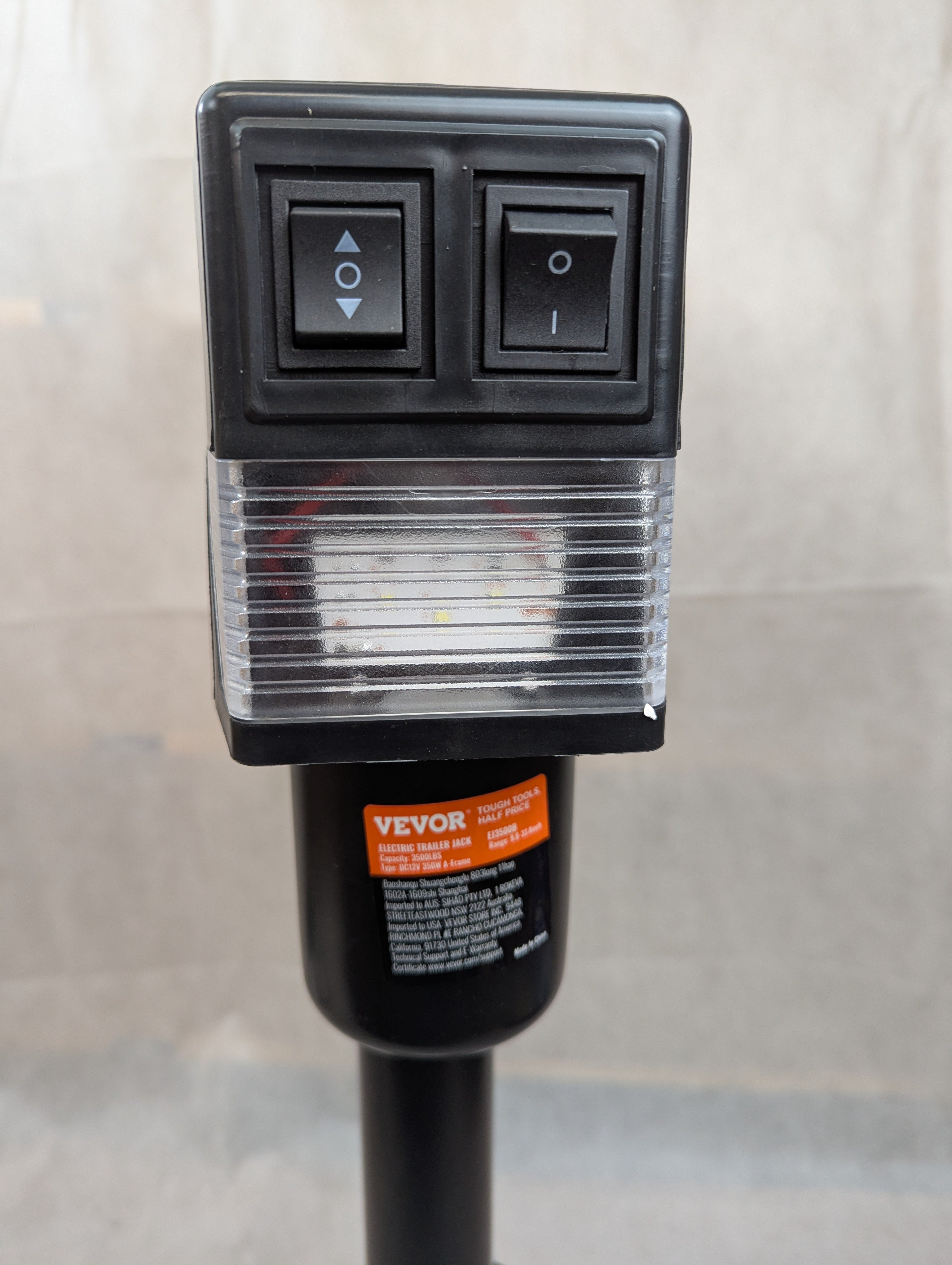

• 2 Toggle switches on the front of the housing let you operate the jack
• On/off switch controls light
• Extend/retract switch controls up and down movement

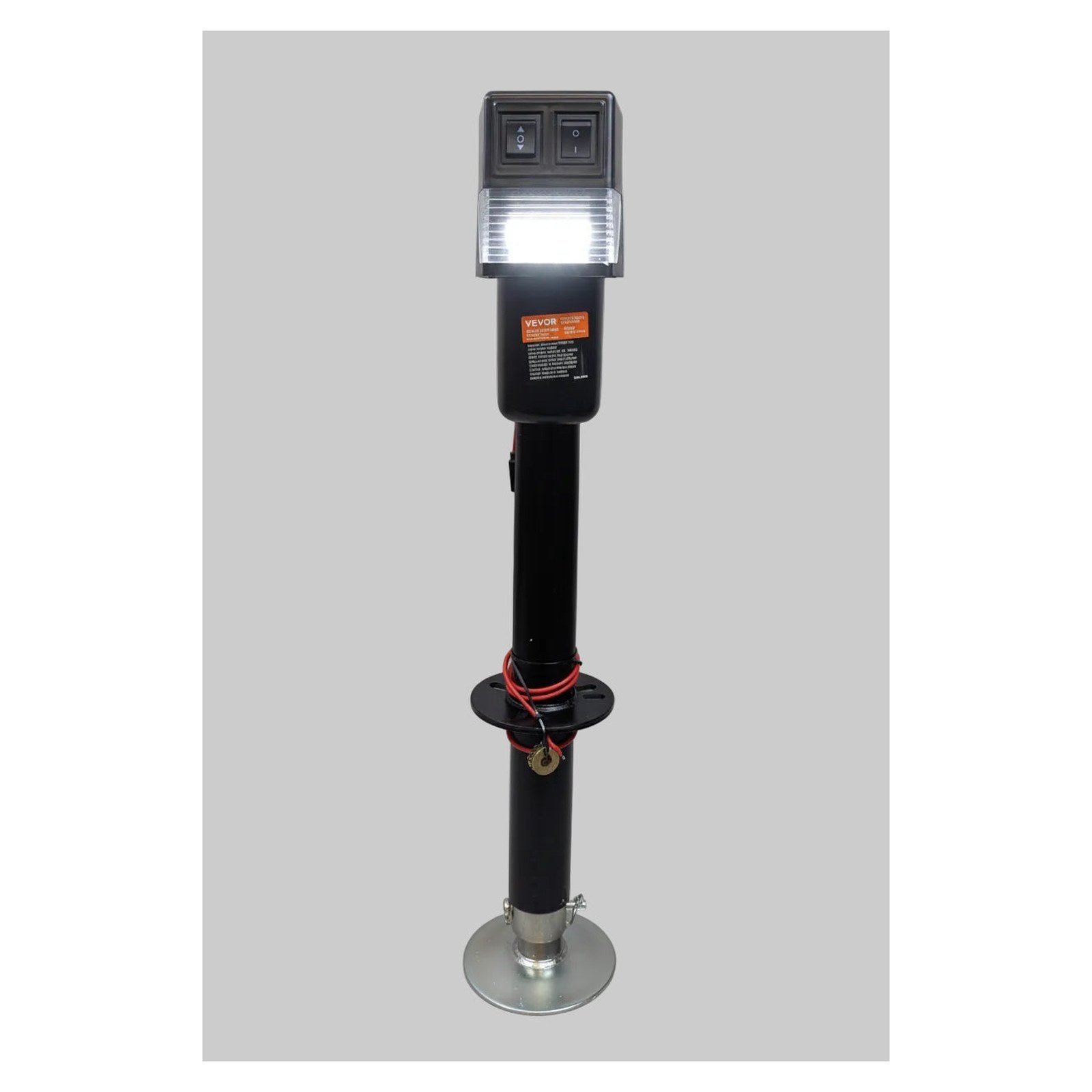

• LED light illuminates at a downward angle to help you focus on your coupler
• Emergency crank (included) allows you to manually operate jack if needed
• Requires a 3/8" socket to use the manual crank
• Black powder-coated outer tube
• Zinc-finished inner tube and footplate resist corrosion
• Simple, bolt-on installation
• Wires to 12-volt power source
• 12-Gauge wires
• Serrated washer included for ground connection

Specs:

• Bracket height:
• Retracted: 9"
• Extended: 28-1/2"
• Total lift: 25-1/8"
• Screw travel: 19-1/2"
• Drop leg travel: 5-5/8"

Clearance:

• 20-1/2" From bottom of bracket to top of jack
• Outer tube diameter: 2-1/4"
• Inner tube diameter: 2"
• Hole spacing on drop leg: 1-7/8"
• Footplate diameter: 5-1/2"
• Lift capacity: 3,500 lbs
• 1-Year warranty
