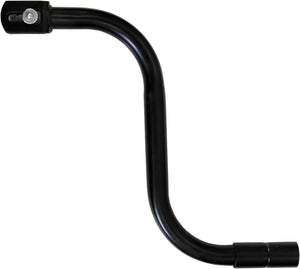

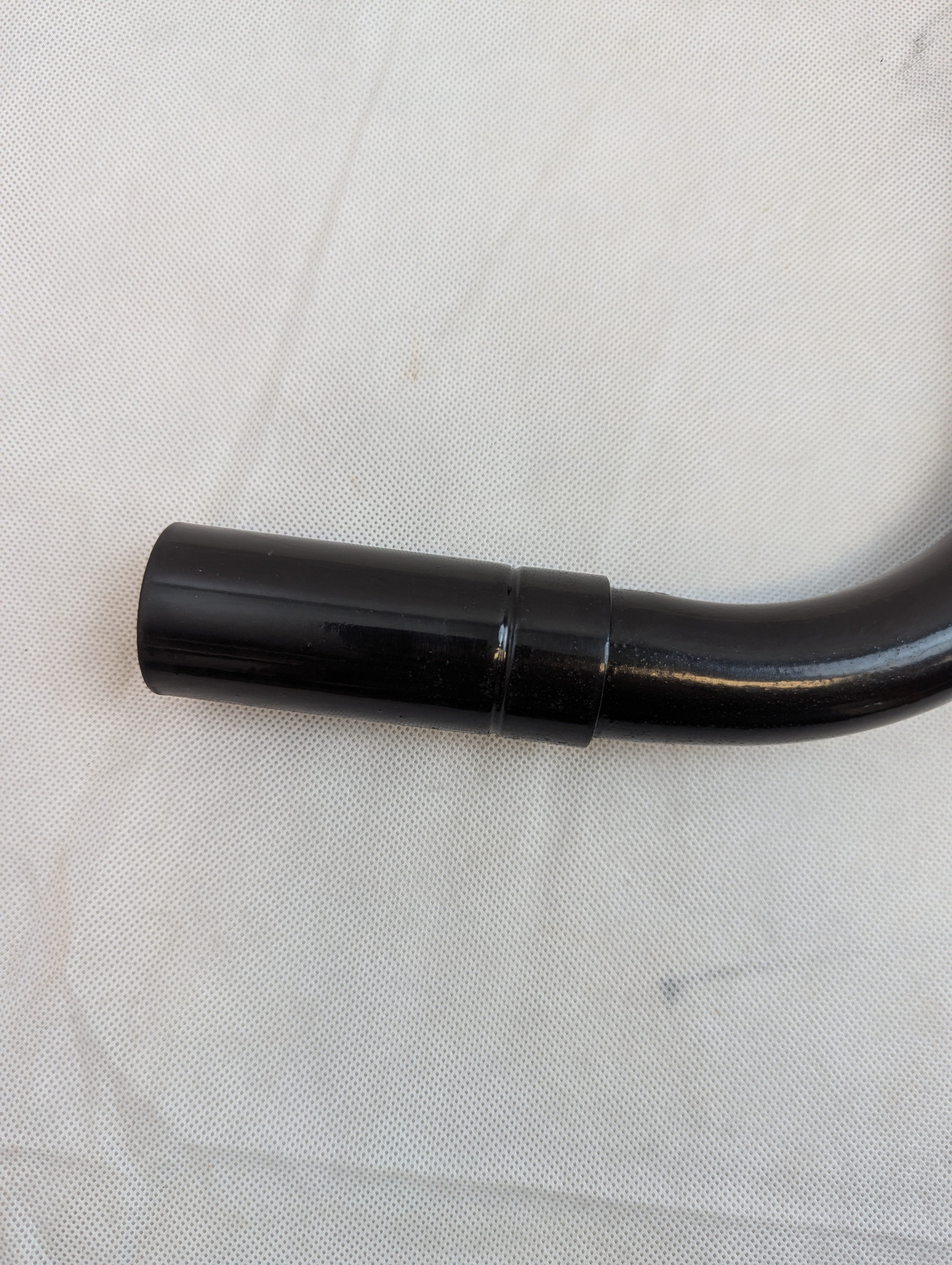

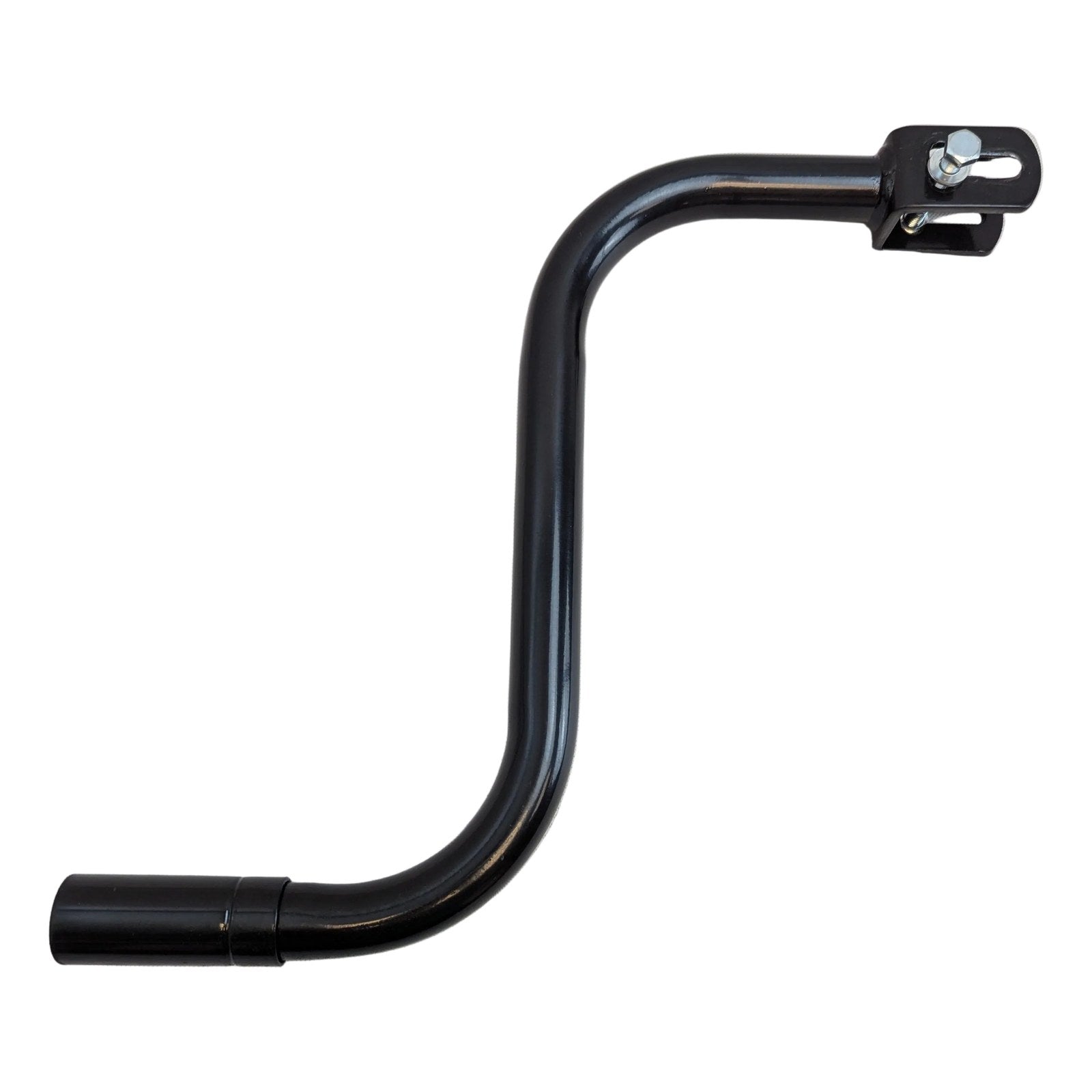

🔧 RAM TJD-12000-HD — Replacement Sidewind Crank Handle for TJD-12000 Series Square Direct-Weld Jacks

Lost or broken crank handle on your RAM or etrailer heavy-duty square jack? The TJD-12000-HD is the genuine OEM replacement sidewind crank for all TJD-12000 Series square, direct-weld trailer jacks rated at 10,000 lb lift / 12,000 lb support capacity. Features a vertical clevis design with a 13.5" radius for serious leverage on heavy gooseneck, equipment, and dump trailer tongues. Comes with all mounting hardware for a straightforward bolt-on installation — no modifications needed.

⚙️ Key Features

• Genuine RAM/etrailer OEM Replacement — Exact fit for all TJD-12000 Series square direct-weld jacks

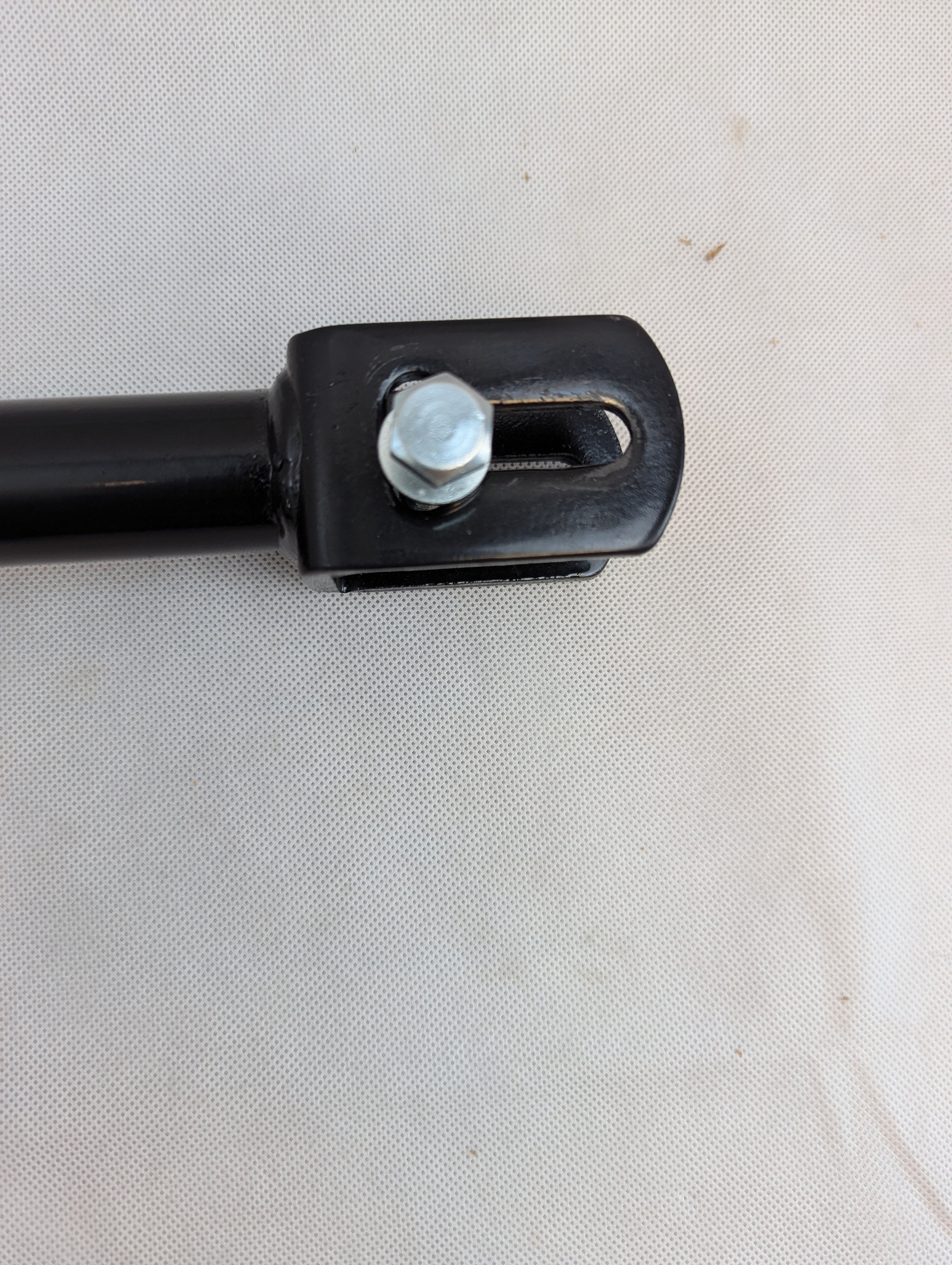

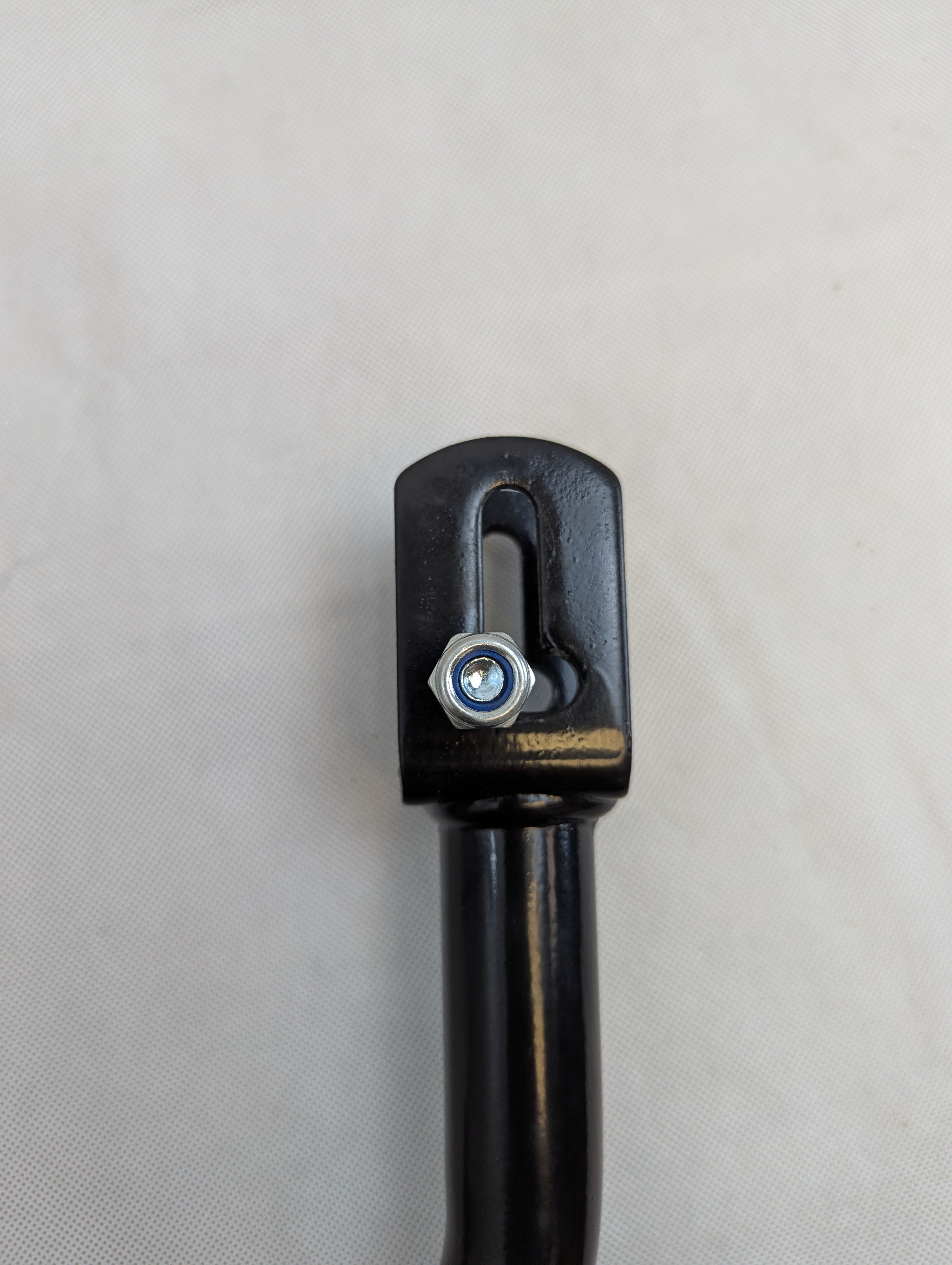

• 13.5" Crank Radius — Vertical clevis design delivers maximum leverage for cranking heavy 10K–12K loads
• Durable Steel Construction — Black powder coat finish resists rust and wear in harsh outdoor conditions — more durable than painted alternatives
• All Mounting Hardware Included — Bolt, washers, and nut included; installs in minutes with basic hand tools
• Sidewind Design — Side crank operation alongside the trailer frame; compact storage position when not in use
• Compatible with Handle Clip TJD-12000-CLIP — Optional weld-on clip (sold separately) secures handle against the jack during travel
• Also Needed For: TJD-12000 Series jacks sold without handle (TJD-12000SP-F2NH, TJD-12000SP-R2NH) — required add-on for those models

📐 Specifications

• Brand: RAM Trailer Products
• MPN: TJD-12000-HD
• Also Known As: TJD12000HD, TJD-12000-HD-CTN, 15181
• Crank Radius: 13.5" (vertical clevis)
• Compatible Jack Capacity: 10,000 lb lift / 12,000 lb support (TJD-12000 Series)
• Finish: Black powder coat
• Mounting Hardware: Included (bolt, washers, nut)
• Wind Direction: Sidewind

✅ Compatible Jack Models (TJD-12000 Series)

• TJD-12000SP-F2 — Spring return, front pin, with handle (replacement handle)
• TJD-12000SP-F2NH — Spring return, front pin, without handle (required add-on)
• TJD-12000SP-R2 — Spring return, right pin, with handle (replacement handle)
• TJD-12000SP-R2NH — Spring return, right pin, without handle (required add-on)
• TJD-12000-F2 — Non-spring return, front pin, with handle
• TJD-12000-F2NH — Non-spring return, front pin, without handle
• TJD-12000-R2 — Non-spring return, right pin, with handle
• TJD-12000-R2NH — Non-spring return, right pin, without handle
• TJD2SP-12000SP-F — 2-Speed square direct-weld jack (handle sold separately on some variants)

🔧 Installation Notes

• Slide handle shaft through the jack gearbox opening and secure with the included bolt, washers, and nut — do not overtighten; handle must move freely
• Optional weld-on handle clip TJD-12000-CLIP (sold separately) secures the handle against the jack body during travel
• If handle is worn due to stripped gears, also check gear kit TJD-12000-GR before reinstalling new handle

🔁 Other Replacement Parts for TJD-12000 Series Jacks

• TJD-12000-GR — Replacement sidewind gear kit (gears + roll pins)
• TJD-12000-BR — Replacement bearing
• TJD-12000-CP — Replacement cap
• TJD-12000-RSP — Replacement return spring
• TJD-12000-PPN — Replacement plunger pin assembly
• TJD-12000-RODNUT — Replacement ACME rod and nut
• TJD-12000-CLIP — Replacement handle clip (weld-on)
• TJD-12000-SHABUS — Replacement handle shaft
