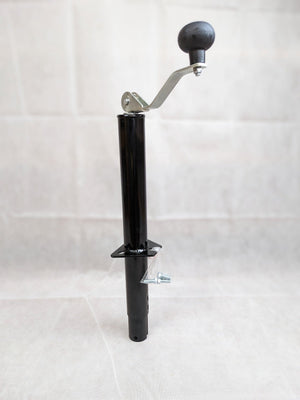

⚓ RAM TJA-2000-B — 2,000 lb Top Wind A-Frame Trailer Jack | Black Powder Coat

The RAM TJA-2000-B is the workhorse A-frame tongue jack for utility, cargo, boat, and single-axle trailers up to 2,000 lbs tongue weight. Built with a durable black powder coat finish on the outer tube and a zinc-finish handle arm, this top-wind jack delivers smooth, reliable operation through years of heavy use. The bolt-head handle fastener locks the crank in place during operation — a small but critical detail that separates RAM from cheaper alternatives. Bolt-on or weld-on A-frame mounting makes it a direct replacement for virtually any standard A-frame tongue jack.

⚙️ Key Features

• 2,000 lb Lift Capacity — Handles tongue weight for most single-axle trailers up to 10,000 lb GVWR
• 3,000 lb Support Capacity — Safely holds trailer weight when parked and unhitched
• Top Wind Operation — Arm's most efficient muscle group does the cranking; faster and easier than side wind
• Black Powder Coat Finish — Durable exterior grade powder coat on outer tube resists chipping, rust, and road grime
• Zinc-Finish Handle Arm — Contrasting zinc look on the handle arm; corrosion resistant
• Bolt-Head Handle Fastener — Locks handle securely so it never pops off during cranking
• Bolt-On or Weld-On Bracket — Standard A-frame bolt pattern fits virtually all A-frame tongue applications
• Foot Plate Included — Flat foot for stable ground contact on most surfaces
• Folds Out of the Way — Jack swivels to clear position when not in use

📐 Specifications

• Brand: RAM Trailer Products
• MPN: TJA-2000-B
• Also Known As: TWJ-2000, GP-TWJ-BLK-2000#, Gp-Twj-Blk-2000#
• AAA Part #: GP-TWJ-BLK-2000#
• Lift Capacity: 2,000 lbs
• Support Capacity: 3,000 lbs
• Travel: 14"
• Retracted Height (bracket to bottom): 8"
• Extended Height (bracket to bottom): 20"
• Overall Retracted Length: ~20"
• Bracket to Top: 11-3/8"
• Outer Tube Diameter: 2-1/4"
• Inner Tube Diameter: 2"
• Mounting Hole Spacing: 3" center-to-center (standard A-frame)
• Finish: Black powder coat (outer tube) / Zinc (handle arm)
• Wind Direction: Top wind
• Mounting Style: Bolt-on or weld-on A-frame bracket

🔧 Fitment & Installation Notes

• Direct bolt-on replacement for standard A-frame tongue jacks with 3" center-to-center mounting holes
• Commonly found as OEM on Karavan Utility Trailers (OEM part # 214-00022-NA)
• Compatible with optional drop leg JF-1005H-Z for additional 8" of reach on high-deck trailers
• Compatible with caster wheel upgrades JC-101 (poly) and JC-102 (steel) — note: caster reduces capacity to 1,200 lbs
• Compatible with flip foot upgrades TJA-2000-B-FLIP4 (4", best for low-deck trailers) and TJA-2000-B-FLIP6 (6", best for high-deck/enclosed trailers)
• Position jack as close to the coupler as possible for maximum stability and rated lift capacity
• Match jack capacity to your trailer's tongue weight — typically 10–15% of loaded trailer GVWR

🔁 Cross-Reference / Replaces

• RAM TJA-2000-B | TWJ-2000 | GP-TWJ-BLK-2000# | 214-00022-NA (Karavan OEM)
• Direct replacement for most 2,000 lb A-frame top wind tongue jacks with 3" bolt pattern
• Looking for zinc plated version? See RAM TJA-2000-Z
