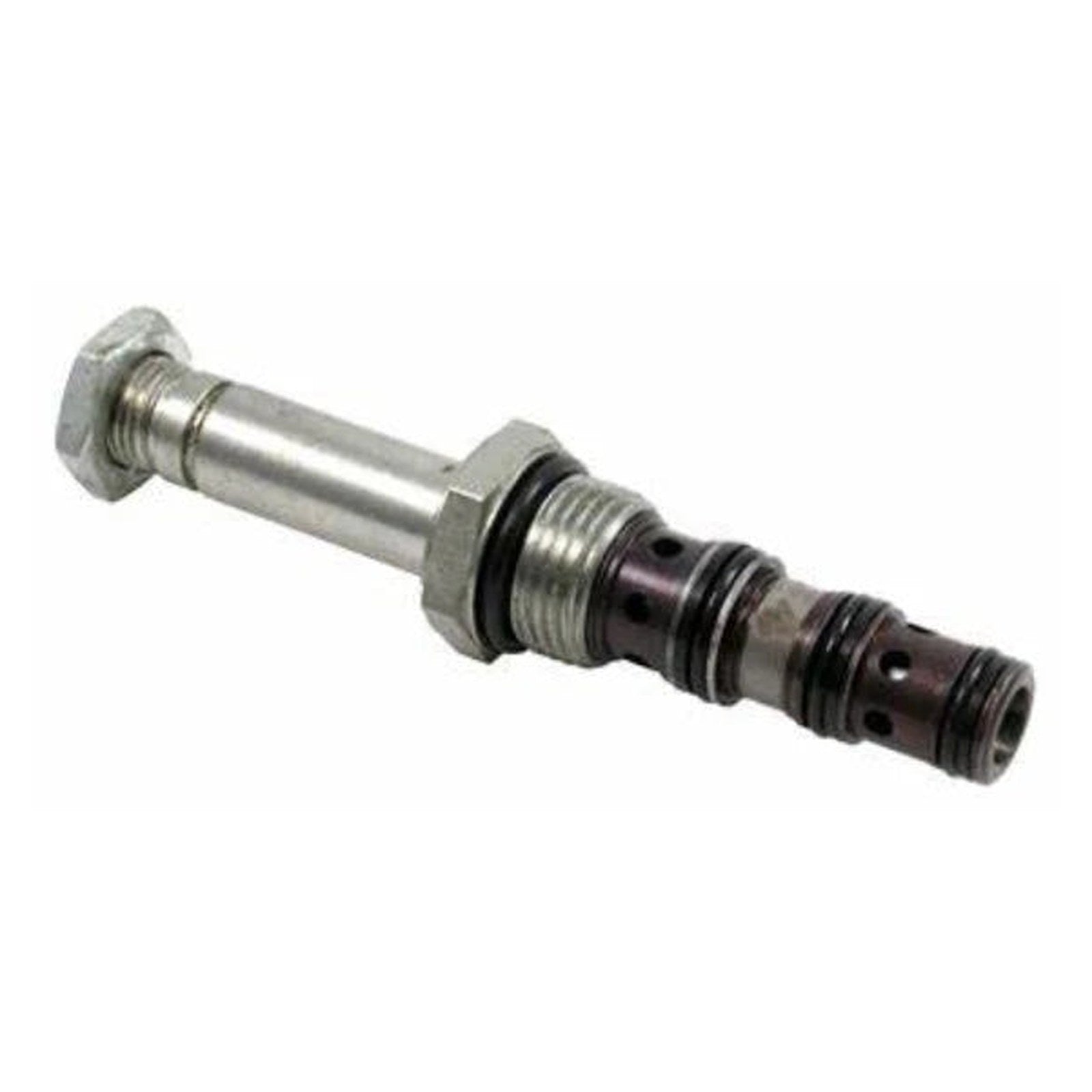

KTI LSV2-08-4CO Directional Control Valve — 4-Way 2-Position Spool Cartridge — for Double-Acting KTI Hydraulic Power Units

The LSV2-08-4CO is the directional control cartridge that handles the power-up (extend) circuit on all KTI double-acting hydraulic power units. It's a 4-way, 2-position spool-type solenoid valve — shifting the oil flow path between "rest" and "extend" states when the round coil is energized. Typically used with the LC2-08-C-5B cylindrical/round coil on the up circuit.

Failed LSV2 symptoms include: pump runs but cylinder won't extend, weak/slow up-stroke, erratic cylinder motion under load, or internal bypass heat buildup. When combined with a leaky LSPC load-holding valve (the common second failure), you'll see both bed drift and slow extend — call out for a full rebuild pair.

🔧 How It Works

The LSV2-08-4CO uses a shifting spool with two operating positions:

• De-energized (normal/rest): Oil flows freely from port 3 → port 2 (or 2 → 3) and port 4 → port 1 (or 1 → 4). Cylinder is isolated, fluid circulates at low pressure.
• Energized (extend): The spool shifts — oil now flows from port 3 → 4 and 2 → 1. This directs pressurized fluid into the cylinder bore, extending the rod and lifting the bed.

Works in tandem with the LSPC-080-4-00 load-holding valve — the two valves together define the behavior of every double-acting KTI pump circuit.

📐 Specifications

⚠️ Application Note

Per KTI documentation: this valve is used on the UP circuit of double-acting pumps only. It will NOT fit KTI power-up / gravity-down pumps. If you're unsure which system you have, call us at 517-225-1991 to confirm before ordering.

✅ Compatible Hydraulic Power Units

• KTI DC26-S and all standard KTI double-acting hydraulic power units
• KTI DC-4000 series dump trailer pumps
• DC-45597, DC-45598 variants
• Any double-acting KTI pump using SAE #8 cavity directional valves
• Dump trailers from Load Trail, Big Tex, PJ Trailer, Griffin, Diamond C, Cargo Mate, and most major brands using KTI double-acting pumps

🔁 Cross-References

• KTI OEM: LSV2-08-4CO
• Directional spool valve on KTI double-acting power units
• Companion valve to LSPC-080-4-00 (load holding) — the two work together
• Compatible coil: LC2-08-C-5B (round)

🔧 Rebuild Pair Recommendation

If your LSV2 has failed, there's a good chance the LSPC on the same manifold has wear too — they typically see the same hours and same oil contamination. Many service techs replace both at the same time as a rebuild pair, saving a second teardown later. Ask us about rebuild bundles at 517-225-1991.

💡 Pro Tips — Installation

• Inspect the manifold cavity for burrs or metal shavings before installing the new cartridge. Contamination is the #1 cause of valve failure.
• Lubricate all O-rings and back-up rings with clean hydraulic fluid before seating the valve. A dry O-ring will shear during install.
• Hand-tighten first, then torque with a 7/8" deep socket to 18 ft-lb maximum.
• Do not use a standard socket — use a deep socket to fully engage the cartridge body hex flats without slipping.
• After install, cycle the system multiple times without load to verify smooth shifting and confirm no bypass leaks.

❓ FAQ

My pump runs but the bed won't extend — is this the part?
Very likely. When a directional (LSV2) fails internally, the pump still runs and builds pressure, but the oil can't reach the cylinder bore. Classic symptom.

Should I replace this or the LSPC first?
Diagnose the symptom: bed won't GO UP → LSV2 is primary suspect. Bed DRIFTS DOWN → LSPC is primary suspect. Both failing at once is common if the oil was contaminated.

Do I need a new coil?
Usually no. If the old round coil (LC2-08-C-5B) still energizes when powered, reuse it. Replace only if visibly damaged, melted, or showing an open circuit.

Will this fit my power-up / gravity-down pump?
No. This valve is double-acting only. Call 517-225-1991 to identify your pump model before ordering.

Questions? Call or text AAA Trailer at 517-225-1991 — we stock the full KTI hydraulic line and can help you identify the right replacement part. Same-day shipping from Howell, Michigan.

📞 Call/Text: 517-225-1991   🌐 AAATrailer.com

Related KTI Hydraulic Products

• KTI LSPC-080-4-00 Load Holding Valve (down-circuit pair)
• KTI LSPC-080-4-00-M Load Holding Valve with Manual Override
• KTI LC2-08-C-5B Round Coil Actuator
